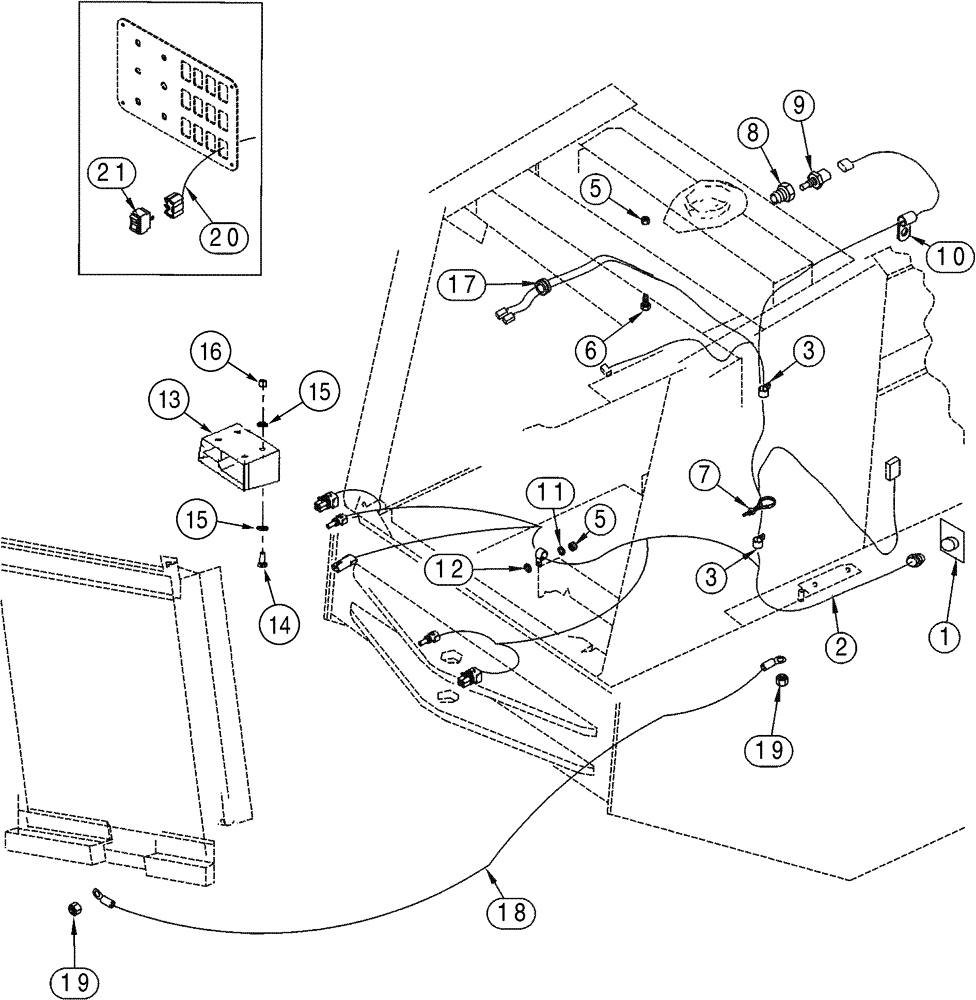

Запчасти Case 821C (04-29) - MOUNTING BACKUP ALARM (04) - ELECTRICAL SYSTEMS

Europe Only -JEE0126215

1шт.

1

REF

INSTRUCTION

Harness, Rear Chassis, See Page(s) 4-47

1шт.

2

292083A2

HARNESS

Rear Lamp

1шт.

3

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Use existing hardware

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

8

391763A1

ADAPTER

3/8 x 1/8 PT, Replaces 217-41

1шт.

9

419792A1

SENSOR

Coolant Level, Replaces 143417A2, 143417A3

1шт.

10

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

11

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

13

D121972

ALARM

Backup

1шт.

14

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

15

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

8шт.

16

832-10406

NUT,M6 x 1, Cl 8

4шт.

18

253186A2

HARNESS

Ground

1шт.

19

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5, Brass

2шт.

Europe Only -JEE0126215

1шт.

20

242101A5

HARNESS

Cab Main, Replaces 242101A2, 242101A3, 242101A4, -JEE0125745

1шт.

20

429188A2

HARNESS

Cab Main, Replaces 429188A1, JEE0125746-

1шт.

21

374433A3

SWITCH

Backup Alarm Disable, Replaces 284291A1

1шт.

Note: See pages 4-81 and 4-83 for rear combination lamps and page 4-87 for license plate lamp

1шт.

Nota : Voir les pages 4 - 81 et 4 - 83 pour les feux combinés arrière et page 4 - 87 pour l'éclairage de la plaque d'immatriculation.

1шт.

Nota: Consultar las páginas 4-81 y 4-83 para las luces de combinación traseras y la página 4-87 para la luz de la matrícula.

1шт.
