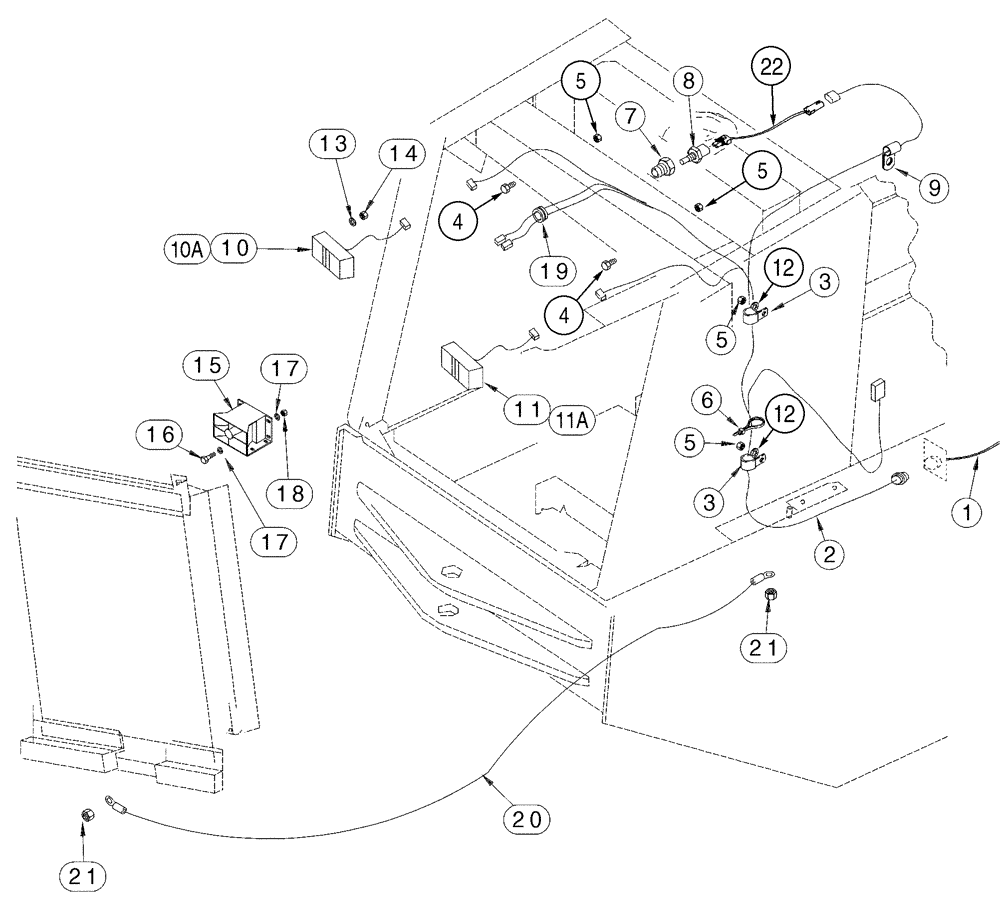

Запчасти Case 821C (04-27) - MOUNTING BACKUP ALARM AND REAR LAMP (04) - ELECTRICAL SYSTEMS

North America Only -JEE0126215

1шт.

1

REF

INSTRUCTION

Harness, Rear Chassis, See Page(s) 4-47

1шт.

2

284509A1

HARNESS

Rear Lamp

1шт.

3

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

7

391763A1

ADAPTER

3/8 x 1/8 PT, Replaces 217-41

1шт.

8

419792A1

SENSOR

Coolant Level, Replaces 143417A2, 143417A3

1шт.

9

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

10

A187962

LAMP, TAIL

LIGHT, TAIL , Stop And Tail, Left Hand, See Page(s) 4-93, No Longer Available, Order 411777A1

1шт.

10a

411777A1

LAMP, TAIL

LIGHT, TAIL , Stop And Tail, Left Hand, See Page(s) 4-93

1шт.

North America Only -JEE0126215

1шт.

11

A187961

LAMP, TAIL

LIGHT, TAIL , Stop And Tail, Right Hand, See Page(s) 4-93, No Longer Available, Order 411778A1

1шт.

11a

411778A1

LAMP, TAIL

LIGHT, TAIL , Stop And Tail, Right Hand, See Page(s) 4-93

1шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

13

892-11005

LOCK WASHER,M5

8шт.

14

825-1405

NUT,M5, Cl 8

8шт.

15

D121972

ALARM

Backup

1шт.

16

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

17

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

8шт.

18

832-10406

NUT,M6 x 1, Cl 8

4шт.

19

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

1шт.

20

253186A2

HARNESS

Ground

1шт.

21

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5, Brass

2шт.

22

445786A1

WIRE HARNESS

Jumper

1шт.
