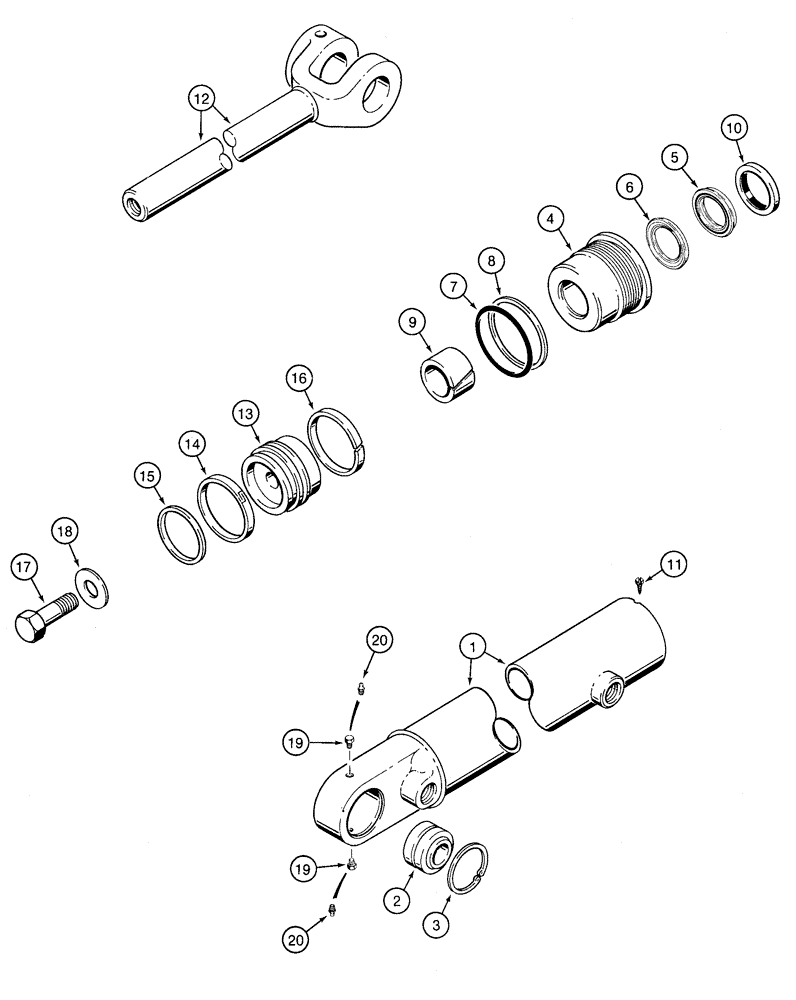

Запчасти Case 721C (05-09) - CYLINDER ASSY - STEERING (05) - STEERING

1976862C1

STEERING CYLINDER

76 ID x 443 mm strk, Steering, Incl. 1-19, See Note

2шт.

84311413R

REMAN-HYD CYLINDER

721C, Reman for New P/N 1976862C1

2шт.

84311413C

CORE-HYD CYLINDER

Return Number

1шт.

1

G110477

TUBE,76.1 mm ID x 674.2 mm L

Incl. 2, 3

1шт.

2

G109152

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 30.15mm W

1шт.

3

102-23218

SNAP RING,#218, 2.321", Int, Spiral

2шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder, Incl. 4-10

1шт.

4

297281A1

GLAND

1шт.

1542875C1

SEAL KIT,44.4mm Rod

Incl 5, 6, Not Serviced Separately, Order 1543267C1 Seal Kit, See Below

1шт.

5

1542999C1

SEAL

Rod, Not Serviced Separately, Order 1543267C1 Seal Kit, See Below

1шт.

1543267C1

SEAL KIT

Incl 1542875C1, Ref 7 - 10, 14 - 16

1шт.

Note: The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

Nota: La référence du vérin et gravée sur certains presse étoupe ou sur le cylindre du vérin

1шт.

Nota: El N° de pieza del conjunto del cilindro está estampado en algunas de las glándulas o tubos del mismo.

1шт.

6

1542998C1

SEALING RING

Not Serviced Separately, Order 1543267C1 Seal Kit, See Below

1шт.

7

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

8

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Piston Rod, Outer

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

1976863C1

PISTON ROD

44.5 mm (1-3/4 in)

1шт.

13

G107277

PISTON

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

17

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

1шт.

19

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

Replace with 219-1 fitting

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Not included with cylinder

2шт.

1543267C1

SEAL KIT

Inc. 1542875C1, Ref 7 - 10, 14 - 16

1шт.
