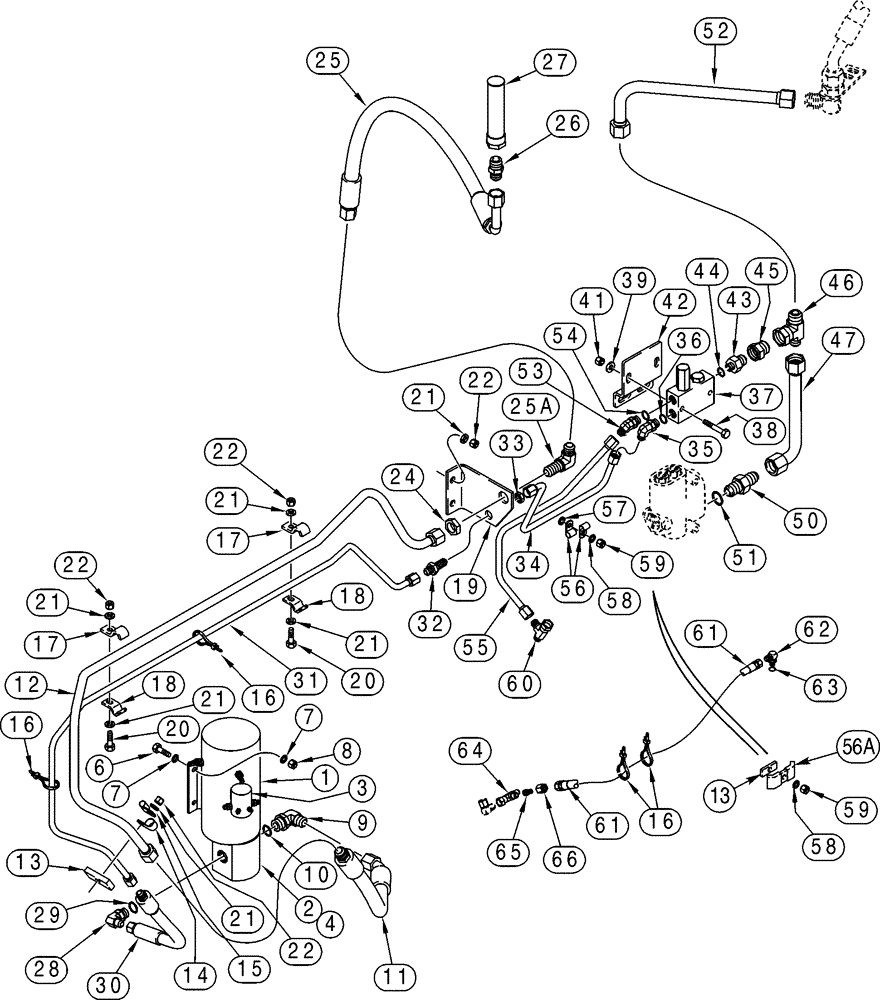

Запчасти Case 721C (05-08) - HYDRAULICS - STEERING, AUXILIARY (05) - STEERING

197540A1

PUMP, HYDRAULIC

Motor, Auxiliary Steering, Consists Of 1-5

1шт.

1

258042A1

MOTOR, ELECTRIC

Drive

1шт.

2

258041A1

PUMP, HYDRAULIC

1шт.

3

258043A1

SOLENOID SWITCH

24V

1шт.

4

258044A1

GASKET

1шт.

5

258045A1

SEAL KIT

Seal, Component Parts Not Serviced Separately, Includes (1) Retaining Ring, (1) Shaft Seal, (2) O-Rings, (2) E-Seals and (2) Backup Rings, Not Illustrated

1шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

279726A1

HOSE ASSY.

532 mm (21 in), Suction

1шт.

12

295989A2

TUBE

Replaces 295989A1

1шт.

13

L119350

SPACER

1-2шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

15

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

17

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

2шт.

18

S79585

CLAMP

2шт.

19

295943A1

WINCH

1шт.

20

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

21

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

7шт.

38

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

24

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

25

296101A2

HOSE ASSY.

916 mm (36-1/16 in), Tank to Auxiliary Steering Pump

1шт.

25a

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

26

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1-1/16 fl x 3/4 PT

1шт.

27

L129303

FILTER SCREEN

1шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

321847A1

HOSE ASSY.

409 mm (16-1/8 in), Pressure

1шт.

31

295937A1

TUBE

1шт.

32

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

33

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

34

321743A1

TUBE,12.7 mm OD, 310, 197 mm Length

Pressure

1шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 36

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

37

311652A2

VALVE

Component Parts Not Serviced Separately, Replaces 311652A1

1шт.

39

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

41

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

42

321846A1

SUPPORT

1шт.

43

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Incl. 44

1шт.

44

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

45

218-728

REDUCER,37 Degree, 1 1/16"-12, Fem x 1 5/16"-12 Male

3/4 fl male x 1 fem

1шт.

46

218-846

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12 x1 5/16"-12 Fem Sw Br

1шт.

47

321801A2

TUBE,19.05 mm OD, 205, 58.7 mm Length

1шт.

50

321727A1

CHECK VALVE

Incl. 51

1шт.

51

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

52

321803A1

TUBE,25.4 mm OD, 380, 120 mm Length

Relief Valve to 277528A1 Hose, See Figure 05-03

1шт.

53

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 54

1шт.

54

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

55

321776A1

TUBE

No Longer Used, Order 362553A1

1шт.

55

362553A1

TUBE

Replaces 321776A1

1шт.

56

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

No Longer Used, Order D40236

2шт.

56a

D40236

CLAMP

Replaces 515-23127

1шт.

57

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm, If Used

1шт.

58

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

59

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

60

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Attaches to 314884A1 and 314854A1 tubes, Brakes to Tank

1шт.

61

101501A1

HOSE ASSY.

1170 mm (46-1/8 in), Pressure Sensing, 218-5222 Tee to L126826 Pressure Switch

1шт.

62

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

1/4 PT x 7/16 fl, Incl. 63, Attaches to L126826 Pressure Switch

1шт.

63

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

64

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Attaches to 218-980 Elbow Beneath Main Pump

1шт.

65

218-790

REDUCER,37 Degree, 3/8" x 1/4" Tube

3/8 tube OD x 7/16 fl

1шт.

66

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

1шт.
