(05-07) - HYDRAULICS - STEERING, JEE0093645-

Запчасти Case 721C (05-07) - HYDRAULICS - STEERING, JEE0093645- (05) - STEERING

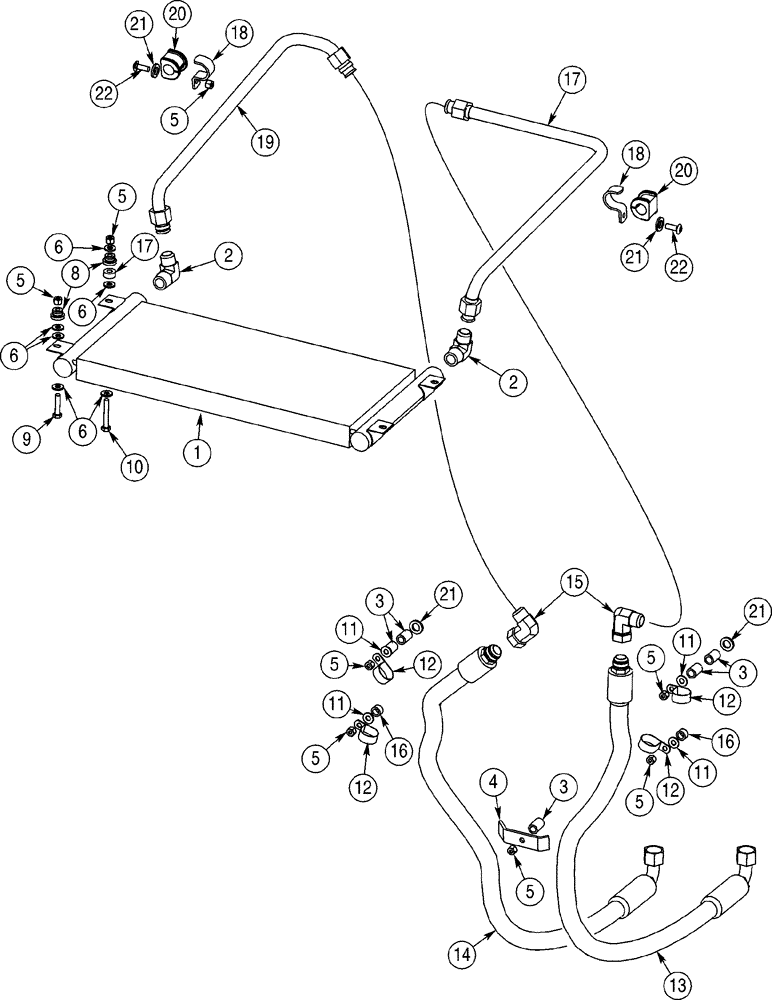

Схема запчастей Case 721C - (05-07) - HYDRAULICS - STEERING, JEE0093645- (05) - STEERING
18
16
6
12
10
12
2
3
5
22
5
11
21
20
5
8
16
4
9
11
21
11
17
5
12
18
15
6
5
6
1
11
20
5
3
17
5
21
22
5
19
3
14
12
21
6
2
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Return Line And Cooler

1шт.

Europe Only

1шт.

1

L125999

OIL COOLER

1шт.

2

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

1-5/16 fl x 1 PT

2шт.

3

A27328

SPACER

5шт.

4

R34049

CLAMP

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

11шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

12шт.

7

143149A1

SPACER

2шт.

8

196504C1

BUSHING

4шт.

10

627-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd

2шт.

12

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

4шт.

13

362369A1

HOSE ASSY.

1794 mm (70-5/8 in), Attaches To 356696A1 Orifice Valve Block Tube, See Figure 08-05, 08-06

1шт.

14

362370A1

HOSE ASSY.

1739 mm (68-1/2 in), Attaches To 356696A1 Orifice Valve Block Tube, See Figure 08-05, 08-06

1шт.

15

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1-5/16 fl x sw

2шт.

16

D44696

BUSHING

2шт.

17

362372A1

TUBE

1шт.

18

D68846

CLAMP

2шт.

19

362374A1

TUBE

1шт.

20

D67297

BLOCK

2шт.

21

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

22

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

9

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
