(05-06) - HYDRAULICS - STEERING, -JEE0093644

Запчасти Case 721C (05-06) - HYDRAULICS - STEERING, -JEE0093644 (05) - STEERING

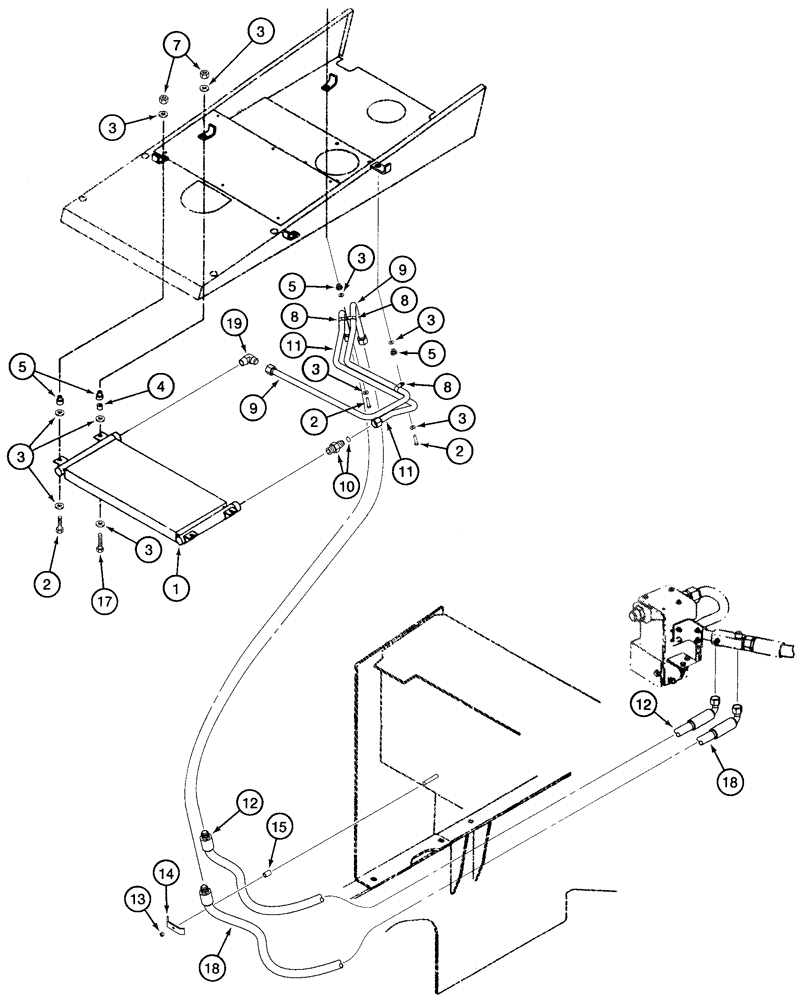

Схема запчастей Case 721C - (05-06) - HYDRAULICS - STEERING, -JEE0093644 (05) - STEERING
10
3
1
3
12
3
5
13
15
11
8
3
8
4
2
7
12
14
18
3
5
9
3
5
11
3
8
17
19
3
18
9
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Return Line And Cooler

1шт.

Europe Only

1шт.

1

182649A1

COOLER, OIL

No Longer Available, Order L125999

1шт.

1

L125999

OIL COOLER

Replaces 182649A1

1шт.

3

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

18шт.

4

143149A1

SPACER

2шт.

5

196504C1

BUSHING

6шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

8

515-23254

CLAMP,1", Insul, 3/8" Bolt

3шт.

9

320348A1

TUBE

1шт.

10

L128003

ADAPTER

1 PT x 1-5/16 Or, Incl. 237-6016

1шт.

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

320364A1

TUBE

1шт.

12

279423A1

HOSE ASSY.

1331 mm (52-7/16 in), Attaches To 356696A1 Orifice Valve Block Tube, See Figure 08-05, 08-06

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

R34049

CLAMP

1шт.

15

A27328

SPACER

1шт.

18

320479A1

HOSE ASSY.

Attaches To 356696A1 Orifice Valve Block Tube

1шт.

17

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

19

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

1-5/16 fl x 1 PT

1шт.

2

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.
