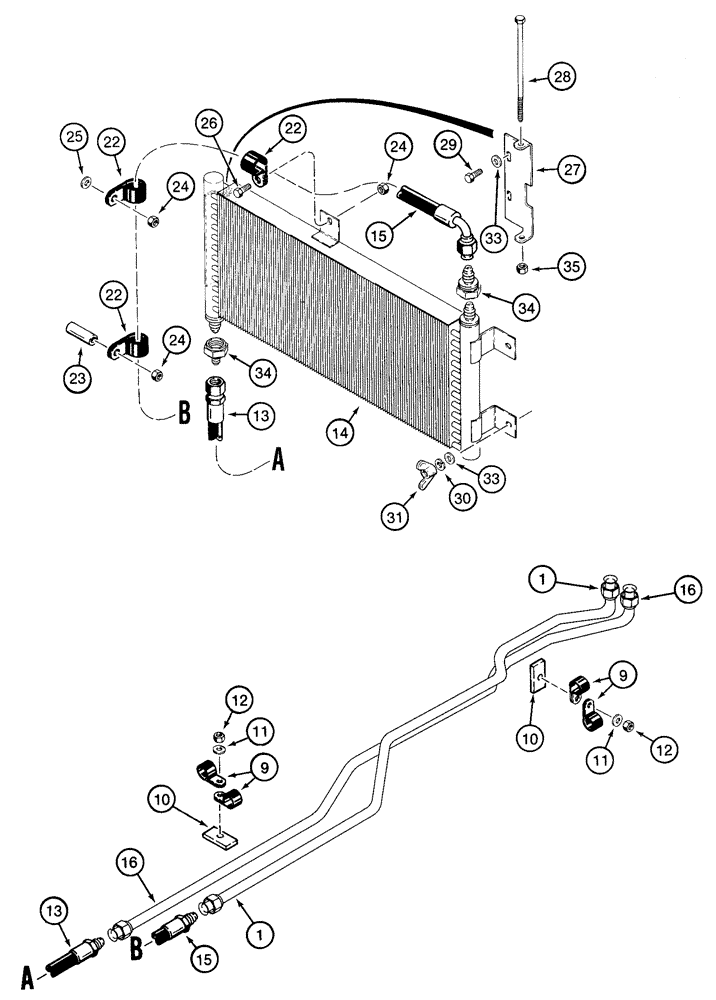

Запчасти Case 721C (05-05) - HYDRAULICS - STEERING (05) - STEERING

*

Return Line And Cooler

1шт.

*

North America Only

1шт.

1

292135A1

TUBE,25.4 mm OD, 1436, 375 mm Length

Attaches To 277937A2 Orifice Valve Block Tube, See Figure 08-05, 08-06

1шт.

9

515-25254

CLAMP,1", Insul, 1/2" Bolt

Attaches to rear frame

4шт.

10

L119350

SPACER

2шт.

11

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

292643A1

HOSE ASSY.,25.4mm ID x 975mm L, SAE 100R1

975 mm (38-7/16 in), Return

1шт.

14

L127883

OIL COOLER

Hydraulic

1шт.

15

292642A1

HOSE ASSY.,25.4mm ID x 2142mm L, SAE 100R1

2142 mm (84-3/8 in), Supply

1шт.

16

278014A1

TUBE,25.4 mm OD, 1608, 378 mm Length

Attaches To 277937A2 Orifice Valve Block Tube, See Figuer 08-05, 08-06

1шт.

22

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

3шт.

23

L59005

SPACER

Lower Clamp

1шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

25

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

26

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

27

L128083

SUPPORT

Oil Cooler

1шт.

28

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

1шт.

29

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

L128214

THUMB SCREW

2шт.

33

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

34

218-728

REDUCER,37 Degree, 1 1/16"-12, Fem x 1 5/16"-12 Male

fl male x 1 fem

2шт.

35

231-1446

NUT,3/8" - 16, Gr 5

1шт.
