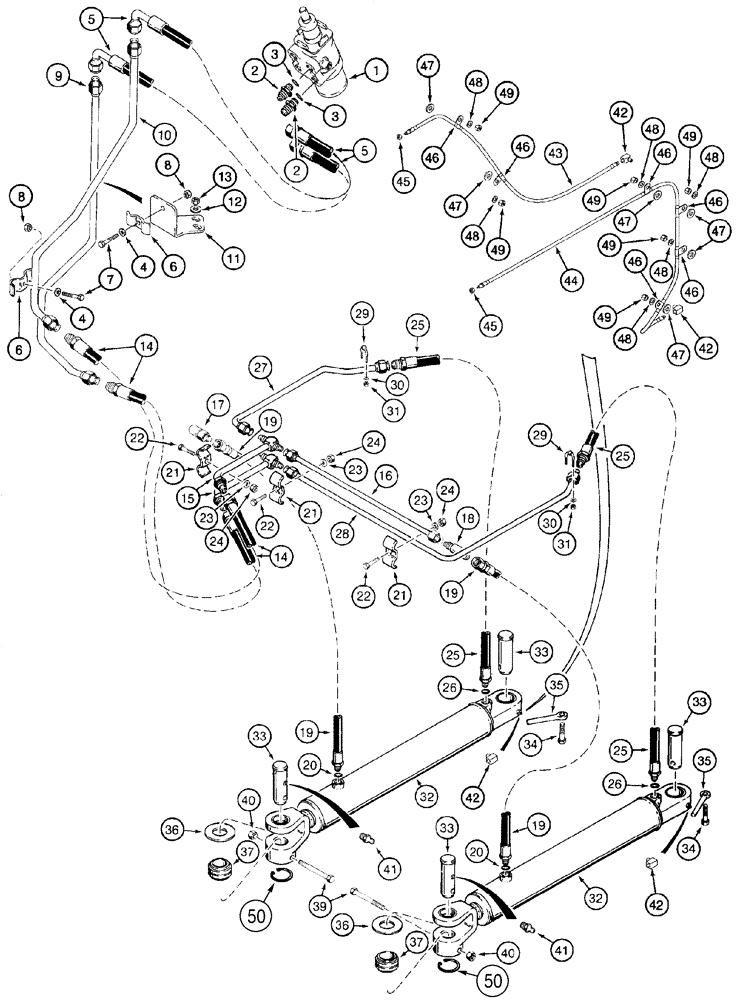

Запчасти Case 721C (05-04) - HYDRAULICS - STEERING (05) - STEERING

Steering Control, Serial Range: Valve-Cylinders

1шт.

1

276368A2

VALVE, CONTROL

Steering, See Figure 05-02, Replaces 276368A1

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

5

278637A1

HOSE ASSY.

489 mm (19-1/4 in), Control Valve To Tube

2шт.

6

R15257

CLAMP

Tube

2шт.

7

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

278563A1

TUBE,15.87 mm OD, 292, 135 mm Length

Left Hand, Lower Port Of Control Valve

1шт.

10

278553A1

TUBE

Right Hand, Upper Port Of Control Valve

1шт.

11

280162A1

SUPPORT

1шт.

12

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

278596A1

HOSE ASSY.

412 mm (16-1/4 in)

2шт.

15

L118907

PIPE ASSY.,15.87 mm OD

2шт.

16

L127794

PIPE,12.7 mm OD x 520 mm L

1шт.

17

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

18

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

19

L127792

HOSE

586 mm (22-3/8 in), Incl. 20, Rod End

2шт.

21

R15257

CLAMP

3шт.

22

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

23

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

25

L124236

HOSE

700 mm (27-5/8 in), Incl. 26, Closed End

2шт.

27

L118924

PIPE,12.7 mm OD

Upper, Left, Closed End

1шт.

28

L128335

PIPE,12.7 mm OD x 552, 496 mm L

Lower, Right, Closed End

1шт.

29

L78949

U-BOLT

5/16

2шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

31

231-1445

NUT,5/16"-18, GB

4шт.

32

1976862C1

STEERING CYLINDER

76 ID x 443 mm strk, Steering, See Figure 05-09

2шт.

84311413R

REMAN-HYD CYLINDER

721C, Reman for New P/N 1976862C1

2шт.

84311413C

CORE-HYD CYLINDER

Return Number

1шт.

33

L126418

PIN,38mm OD x 111mm L

4шт.

34

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

35

R17756

ROD,12.7mm OD x 109.54mm L

2шт.

36

S109722

WASHER,38.1mm ID x 76.2mm OD x 3.17mm Thk

Nylon

2шт.

37

G109152

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 30.15mm W

2шт.

39

426-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 8

2шт.

40

131-1402

THIN NUT,1/2"-13, GB, Thin

2шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

42

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

2шт.

43

L111706

HOSE

1118 mm (44-1/8 in), Left Hand, Grease

1шт.

44

L72667

HOSE

1041 mm (41 in), Right Hand, Grease

1шт.

45

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

46

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

6шт.

47

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

6шт.

48

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

49

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

50

102-23218

SNAP RING,#218, 2.321", Int, Spiral

4шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
