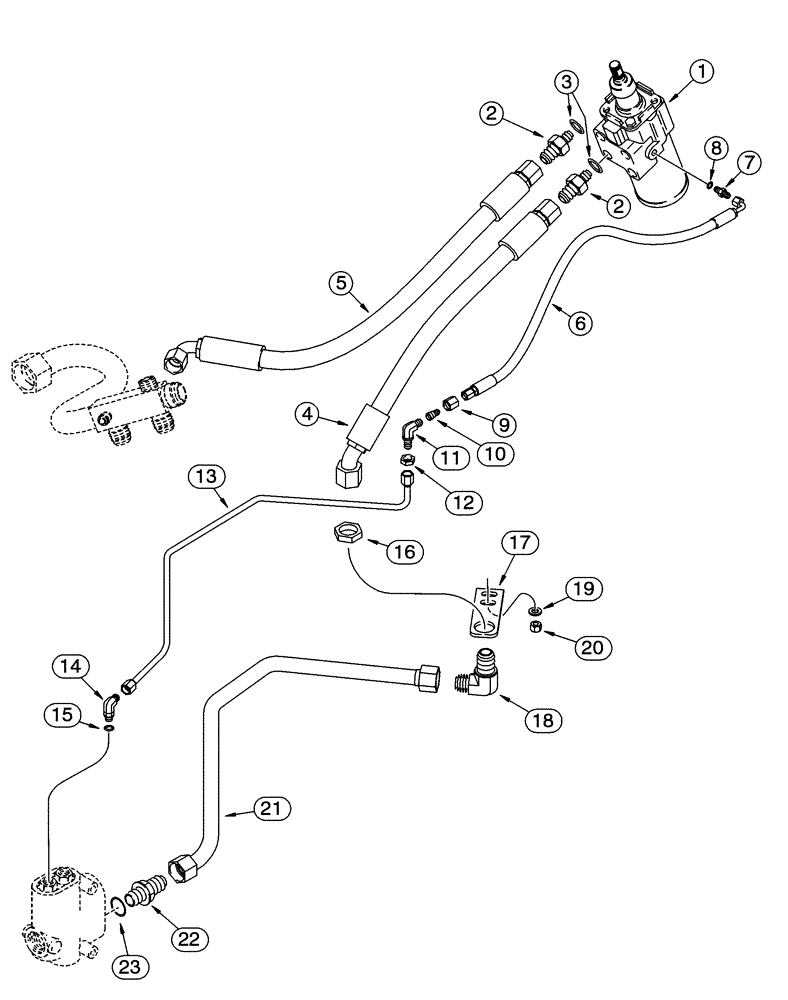

Запчасти Case 721C (05-03) - HYDRAULICS - STEERING (05) - STEERING

Steering Control Valve to Flow Control Valve

1шт.

1

276368A2

VALVE, CONTROL

Steering, See Figure 05-02, Replaces 276368A1

1шт.

2

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Incl. 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

277528A1

HOSE ASSY.,19.05mm ID x 590mm L, SAE 100R12

590 mm (23-1/4 in), Pressure

1шт.

5

278008A1

HOSE ASSY.

736 mm (29 in), Return, Attaches To 277937A2 Orifice Valve Block Tube, See Page(s) 8-15, 8-21

1шт.

6

278947A1

HOSE ASSY.

696 mm (27-7/16 in), Load Sensing Port

1шт.

7

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

1шт.

10

218-790

REDUCER,37 Degree, 3/8" x 1/4" Tube

3/8 tube OD x 7/16 fl

1шт.

11

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

12

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

13

321844A1

TUBE,9.5 mm OD, 403, 278 mm Length

Load Sensing Port, Attaches To L126106 Flow Control Valve

1шт.

14

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

1шт.

17

280100A1

SUPPORT

1шт.

18

218-698

ELBOW,90 Degree Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

1шт.

19

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

21

277563A1

TUBE,25.4 mm OD, 410, 304 mm Length

Pressure, Attaches To L126106 Flow Control Valve

1шт.

22

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 23

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
