Заказать запчасти

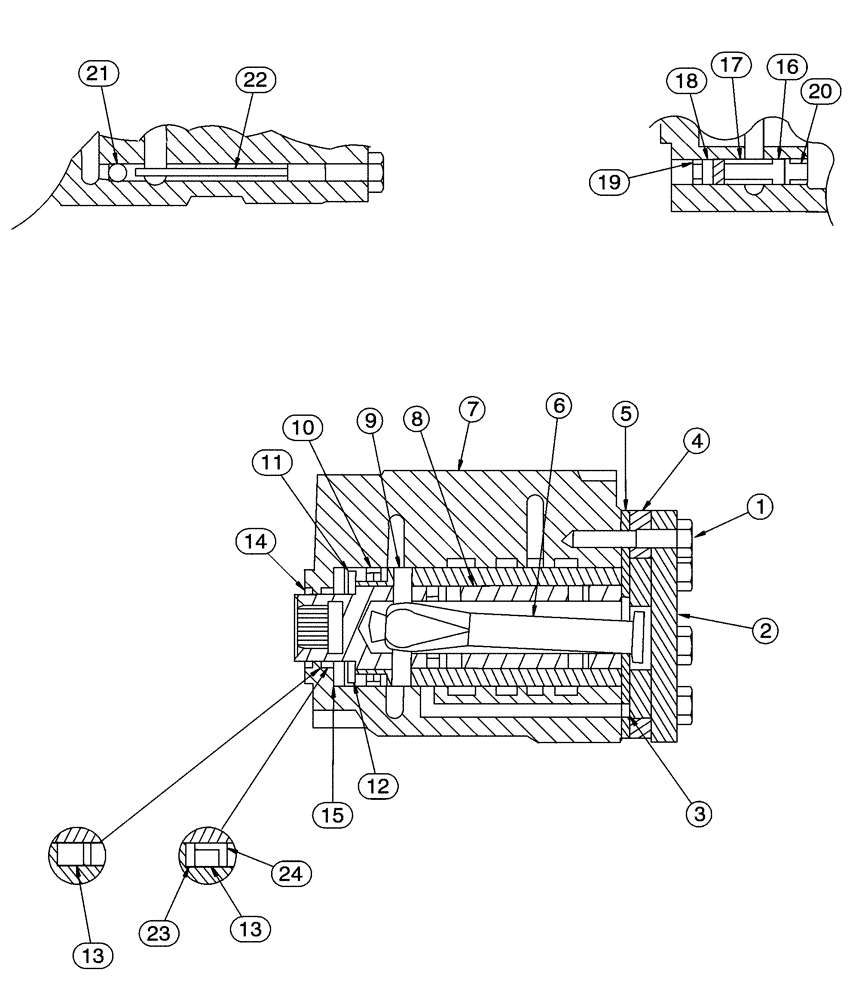

Запчасти Case 721C (05-02) - VALVE ASSY - STEERING CONTROL (05) - STEERING
№
Артикул
Название
Примечание
Количество
276368A1
VALVE, CONTROL
Steering, Incl. Steering Column, Incl. 320121A1, REF 1-26, No Longer Used, Order 276368A2
1шт.
276368A2
VALVE, CONTROL
Steering, Incl. Steering Column, Incl. 320121A2, REF 1-27, Replaces 276368A1
1шт.
320121A1
VALVE, CONTROL
Steering, Does Not Include Steering Column, Incl. 1-24, 27, No Longer Used, Order 320121A2
1шт.
320121A2
VALVE, CONTROL
Steering, Does Not Include Steering Column, Incl. 1-24, 27, Replaces 320121A1
1шт.
1
320198A1
SCREW
7шт.
2
298585A1
CAP
1шт.
3
298587A1
SEAL
3шт.
4
320218A1
GEAR
1шт.
5
298589A1
SPACER
1шт.
6
320667A1
DRIVE
1шт.
7
NSS
NOT SOLD SEPARAT
Housing
1шт.
8
NSS
NOT SOLD SEPARAT
Sleeve
1шт.
9
298591A1
PIN
1шт.
10
298592A1
SPRING
Used With, 276378A1
1шт.
10
399331A1
SPRING
Used With, 276378A2
1шт.
11
298593A1
NEEDLE BEARING
1шт.
12
298594A1
BEARING CUP
2шт.
13
238-5121
O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro
1шт.
14
320196A1
SEAL
Used With, 276378A1
1шт.
14
400210A1
SEAL
Used With, 276378A2
1шт.
298612A1
SEAL KIT
Incl. 3, 13, 23, 24, Used With 276368A1
1шт.
399334A1
SEAL KIT
Component Parts Not Serviced Separately, Used With 276368A2, Not Illustrated
1шт.
15
298595A1
RING
1шт.
16
320678A1
VALVE POPPET
2шт.
17
320677A1
SPRING
2шт.
18
320693A1
PLUG
2шт.
19
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
2шт.
20
320679A1
SEAT, VALVE
2шт.
21
298596A1
BALL
2шт.
22
298597A1
ROLL PIN
2шт.
23
320195A1
BACK-UP RING
1шт.
24
N13313
SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk
1шт.
25
S301818
CAP
Includes 26, Component Parts Not Serviced Separately, Not Illustrated
1шт.
26
380-2612
12 PT SCREW,Flg, 3/8" - 16 x 3/4", Full Thd
Not Illustrated
2шт.
27
320680A1
RIVET
Used With 320121A2, Not Illustrated
2шт.
298612A1
SEAL KIT
Incl. 3, 13, 23, 24, Used With 276368A1
1шт.
399334A1
SEAL KIT
Component Parts Not Serviced Separately, Used With 276368A2, Not Illustrated
1шт.
Выбрано товаров: 37
