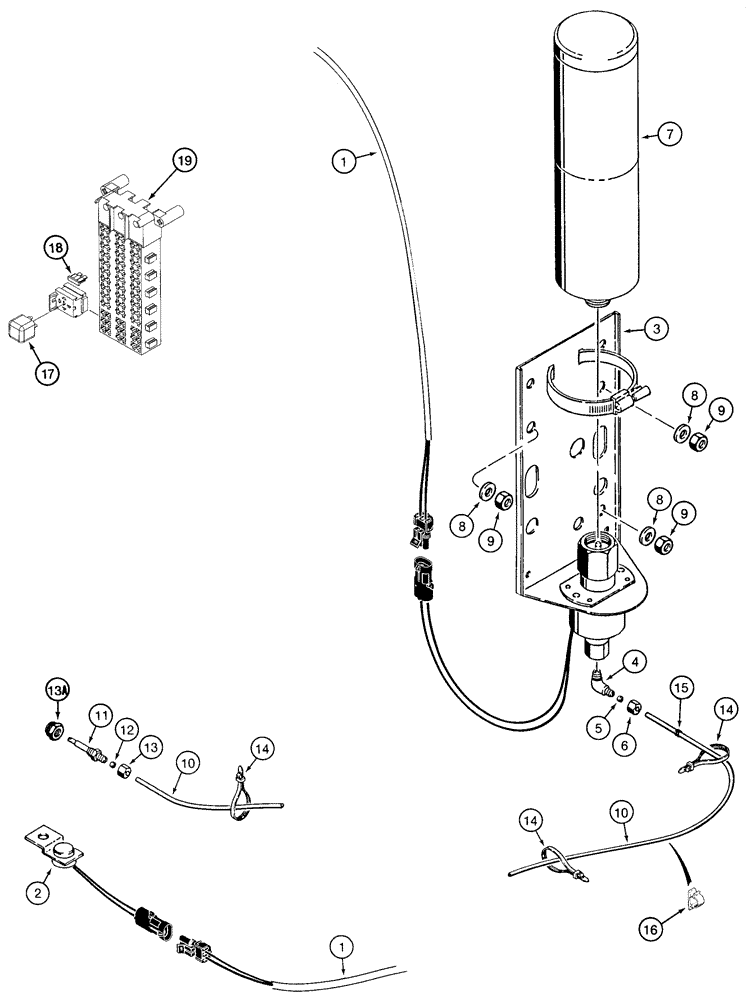

Запчасти Case 721C (04-39) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

North America Only

1шт.

1

296748A3

HARNESS

Engine and Transmission, No Longer Available, Order 296748A5

1шт.

1

296748A5

HARNESS

Engine and Transmission, Replaces 296748A3, 296748A4

1шт.

2

L126191

THERMOSTATIC SWITCH

Circuit Breaking, Use Existing Hardware

1шт.

L126198

VALVE

Consists Of 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

7

A171940

CYLINDER

Starting Fluid

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

Replaces 231-1446

3шт.

9

231-1446

NUT,3/8" - 16, Gr 5

3шт.

10

L126227

TUBE,0.125" OD x 84" L

2134 mm (84 in), Cut From 1954063CX

1шт.

A172900

NOZZLE CAP

Starting Fluid, Incl. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Body

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

13a

217-1034

REDUCER,1/4" - 18 Male NPTF x 1/8" - 27 Female NPTF

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

15

L77834

GROMMET

Rubber

1шт.

16

L100659

CLIP

Tube

1шт.

17

326845A1

RELAY,24V

24V

1шт.

18

A149800

FUSE,10 Amp

10 amp

1шт.

19

242101A5

HARNESS

Cab Main, Replaces 242101A2, 242101A3, 242101A4, -JEE0125745

1шт.

19

429188A1

HARNESS

Cab Main, JEE0125746-

1шт.
