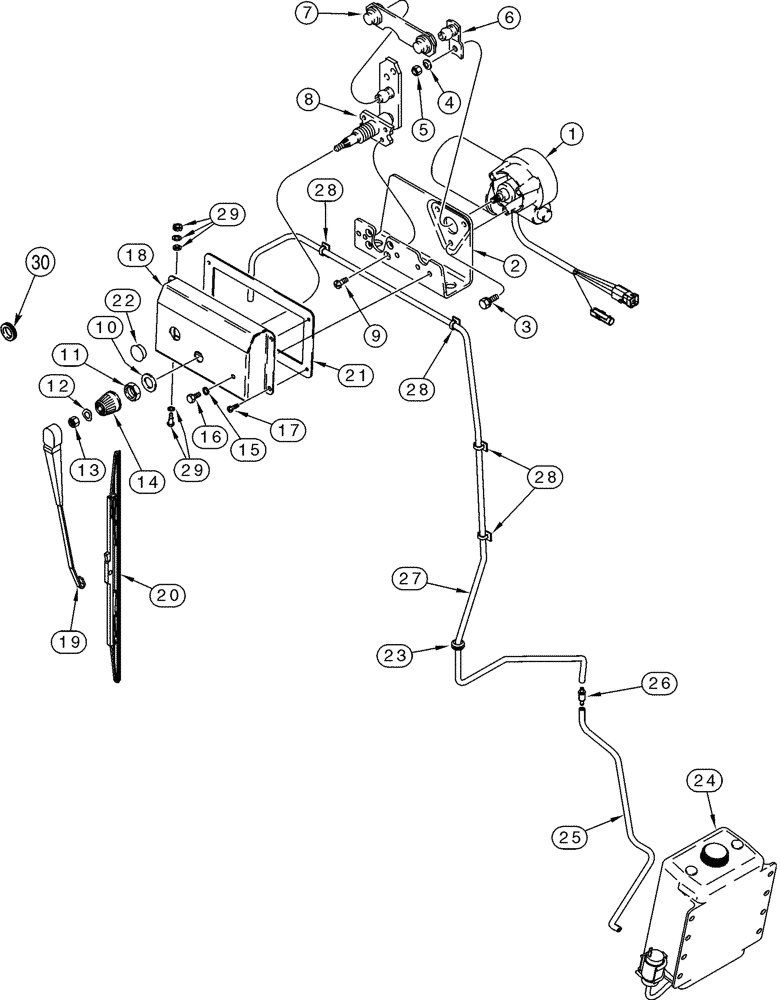

Запчасти Case 721C (04-38) - CAB - WIPER, REAR (04) - ELECTRICAL SYSTEMS

A187672

WIPER MOTOR

MOTOR, WIPER 24 volt, Incl. 1 - 9

1шт.

1

A187535

WIPER MOTOR

MOTOR, WIPER 24 volt, Windshield Wiper Rear

1шт.

2

N8359

SUPPORT

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

Special

3шт.

4

N8361

SPRING WASHER

Retaining

1шт.

5

L112090

NUT

1шт.

6

N8360

SUPPORT

1шт.

7

N8358

LINK

1шт.

8

N14112

SHAFT

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

Special

4шт.

10

L112088

WASHER

Shaft

1шт.

11

L112087

NUT

Shaft

1шт.

12

L112089

WASHER

1шт.

13

326203A1

NUT

Replaces L112090, 829-1408

1шт.

14

L112081

CAP

1шт.

15

192-81007

LOCK WASHER,1/4"

1шт.

16

414-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1шт.

17

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Replaces 840-1620

4шт.

18

324869A1

SUPPORT

Rear Wiper

1шт.

19

A187712

WIPER ARM,Single, 500mm L

ARM, WIPER Windshield Wiper Rear

1шт.

20

132024A1

WIPER BLADE

1шт.

21

1345074C1

GASKET,5mm Thk

1шт.

22

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

23

248-1169

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

24

236781A1

CONTAINER

Windshield Washer, Front And Rear, Incl Pumps and Cap

1шт.

24

87439461

CAP

1шт.

24

48042633

PUMP,24V

2шт.

25

324467A1

HOSE

572 mm (22-5/8 in), Reservoir To Check Valve, Cut From 1968141CX

1шт.

26

324203A1

CHECK VALVE

1шт.

27

324469A1

HOSE

3073 mm (121 in), Windshield Washer, Rear, Cut From 1968141CX

1шт.

28

L100659

CLIP

4шт.

29

324550A1

JET

Windshield Washer, Rear

1шт.

30

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

1шт.
