Запчасти Case 721C (04-37) - CAB - WIPER, FRONT (04) - ELECTRICAL SYSTEMS

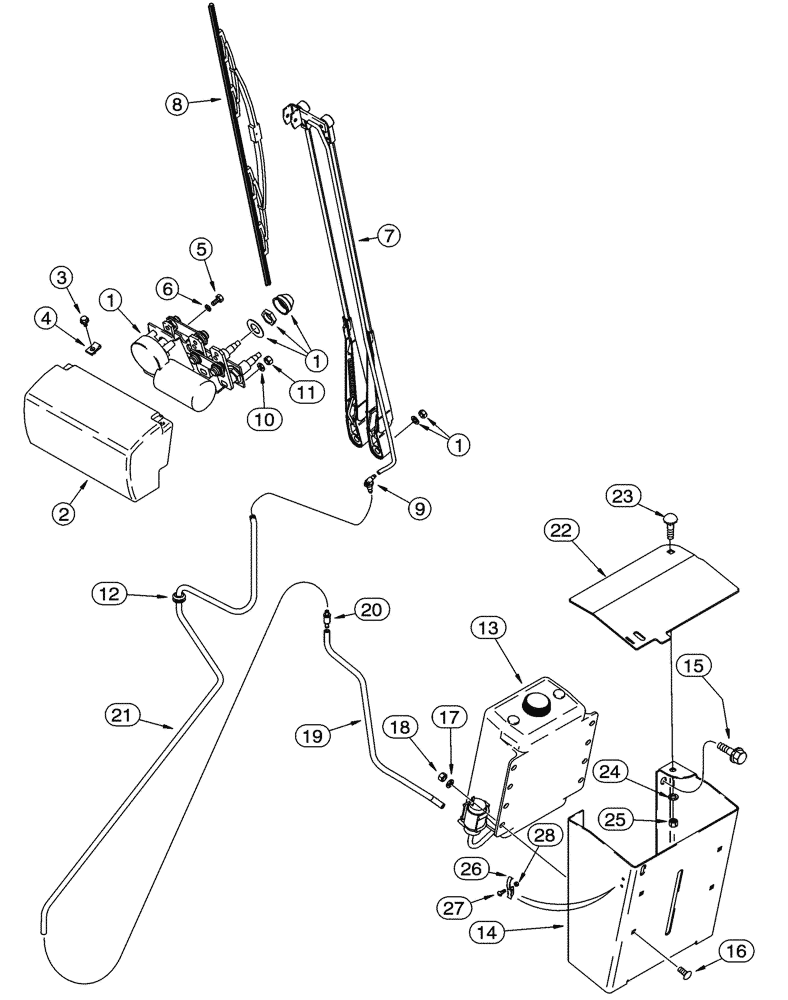

Схема запчастей Case 721C - (04-37) - CAB - WIPER, FRONT (04) - ELECTRICAL SYSTEMS
8
1
6
27
14
22
20
3
25
2
1
21
12
10
24
18
15
1
19
4
17
7
16
13
5
11
28
26
23
9

Артикул

Название

Примечание

Количество

1

322848A1

WIPER MOTOR

MOTOR, WIPER 24 volt, Windshield Wiper Front

1шт.

1

322848A1R

REMAN-WIPER MOTOR

Wiper Motor

1шт.

1

322848A1C

CORE-WIPER MOTOR

Return Number, ELECTRONIC CONTROL UNIT

1шт.

1

84544472R

REMAN-WIPER MOTOR

721C, Reman for New PN 322848A1

1шт.

1

84544472C

CORE-WIPER MOTOR

Return Number

1шт.

402067A1SC

CORE-WIPER MOTOR

Return Number, ELECTRONIC CONTROL UNIT - for N.A. Only

1шт.

2

320578A1

COVER

Front Wiper, Gray

1шт.

2

399232A1

COVER

Front Wiper, Tan

1шт.

3

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

Replaces 941-4610

2шт.

4

833-40306

SPRING NUT,M6, U

2шт.

5

414-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1шт.

6

192-81007

LOCK WASHER,1/4"

1шт.

7

321736A1

WIPER ARM

ARM, WIPER Dual

1шт.

8

A187574

WIPER BLADE

700 mm (27-9/16 in)

1шт.

9

1968053C1

ELBOW

1шт.

10

N8361

SPRING WASHER

Belleville

1шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

12

248-1169

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

13

236781A1

CONTAINER

Windshield Washer, Front And Rear, Incl Pumps and Cap

1шт.

13

87439461

CAP

1шт.

13

48042633

PUMP,24V

2шт.

14

236782A2

SHIELD

Reservoir

1шт.

15

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

4шт.

16

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

19

324467A1

HOSE

572 mm (22-5/8 in), Reservoir To Check Valve, Cut From 1968141CX

1шт.

20

324203A1

CHECK VALVE

1шт.

21

324468A1

HOSE

1651 mm (65 in), Windshield Washer, Front

1шт.

22

311040A1

COVER

Reservoir

1шт.

23

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

25

231-1446

NUT,3/8" - 16, Gr 5

1шт.

26

60-4640T1

LATCH

Cover

1шт.

27

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

28

225-14108

NUT,#8-32

2шт.

Выбрано товаров: 36
