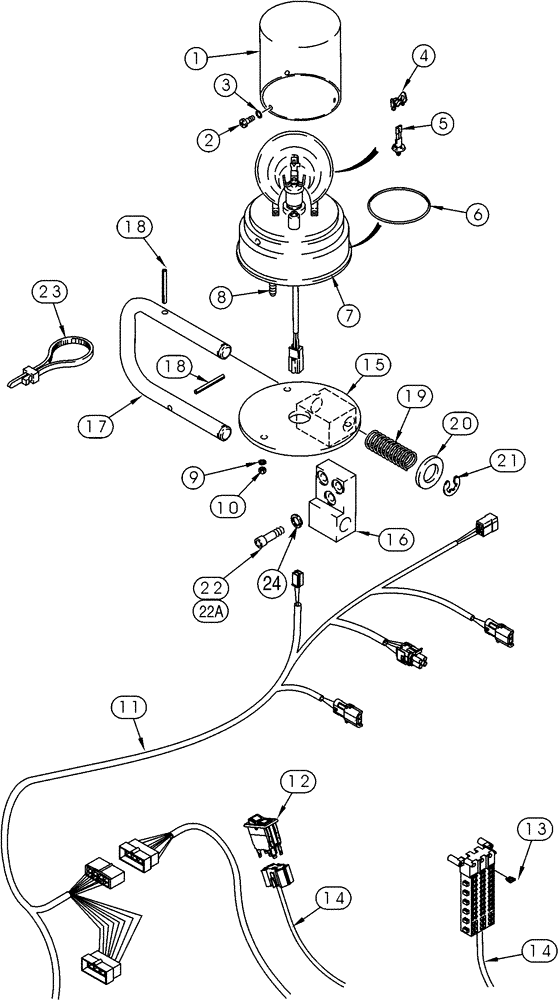

Запчасти Case 721C (04-35) - BEACON ASSY, ROTATING - MOUNTING (04) - ELECTRICAL SYSTEMS

A187528

LIGHT ASSY.

Rotating Beacon, Incl. 1 - 8, No Longer Available, Order 367751A1

1шт.

367751A1

BEACON ROTATING

Beacon, Incl. 1 - 8, Replaces A187528

1шт.

1

A187542

LENS

Amber, If Used

1шт.

1

127158A1

LENS

Blue, If Used

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

Lens mounting

3шт.

3

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

4

NSS

NOT SOLD SEPARAT

Clip

1шт.

5

P40533

LAMP

Halogen

1шт.

6

A187575

O-RING

Drive Motor

1шт.

7

NSS

NOT SOLD SEPARAT

Base, Includes Drive Motor

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

9

892-11006

LOCK WASHER,M6

3шт.

10

825-1406

NUT,M6, Cl 8

3шт.

11

238764A2

WIRE HARNESS

Cab Roof, Replaces 238764A1

1шт.

12

234194A1

SWITCH

Rotating Beacon

1шт.

13

A149799

FUSE

7,5 amp

1шт.

14

242101A4

HARNESS

Cab Main, Replaces 242101A2, 242101A3

1шт.

15

313215A1

SUPPORT

Beacon Mounting

1шт.

16

313213A2

SUPPORT

Beacon Mounting, At Cab, Replaces 313213A1

1шт.

17

313216A2

ARM

Beacon Mounting, Replaces 313216A1

1шт.

18

38-31620

PIN,6.35mm OD x 31.75mm L

Replaces 138-2053

2шт.

19

1986722C1

SPRING

2-1/4, Return, If Used, Black

2шт.

19

373596A1

SPRING

Return, If Used

2шт.

20

495-11081

WASHER,3/4", SAE

2шт.

21

100-3375

SNAP RING,#75, .574" Dia, E-Type

2шт.

22

863-8016

HEX SOC SCREW,M8 x 16mm, Cl 12.9

No Longer Available, Order 864-8020

3шт.

22a

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

Replaces 863-8016

3шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Replaces L11541

1шт.

24

892-11008

LOCK WASHER,8mm ID

3шт.
