Запчасти Case 721C (04-34) - BEACON ASSY, ROTATING - MOUNTING (04) - ELECTRICAL SYSTEMS

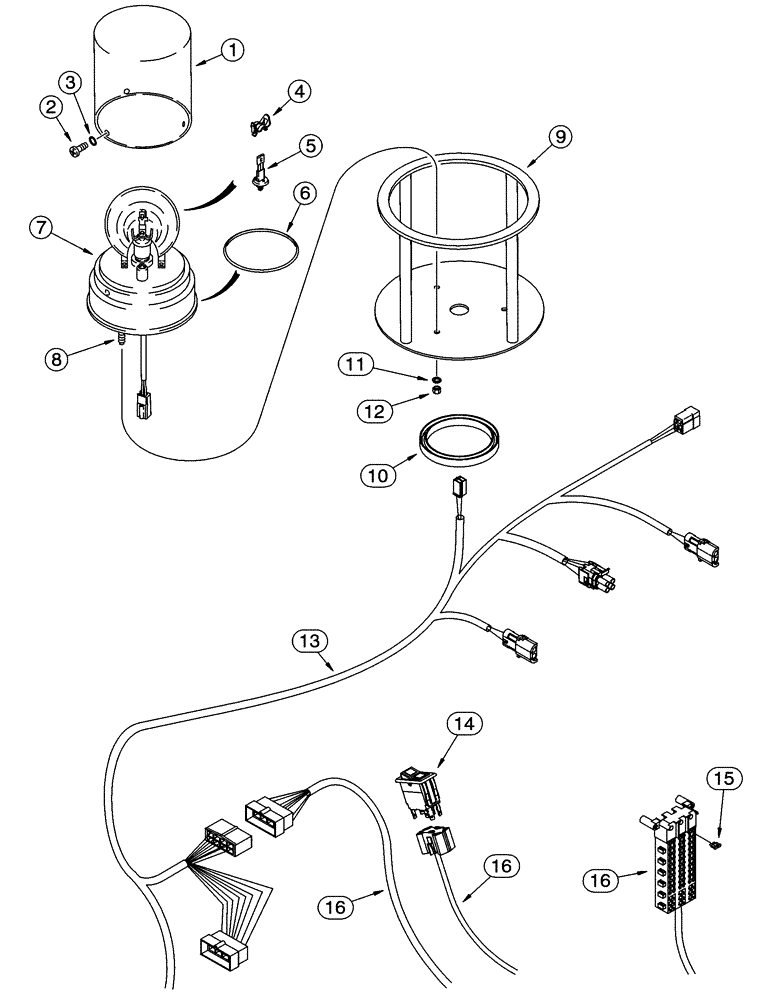

Схема запчастей Case 721C - (04-34) - BEACON ASSY, ROTATING - MOUNTING (04) - ELECTRICAL SYSTEMS
8
3
15
16
2
13
16
14
12
16
6
4
1
5
10
11
7
9

Артикул

Название

Примечание

Количество

A187528

LIGHT ASSY.

Rotating Beacon, Incl. 1 - 8, If Used

1шт.

367751A1

BEACON ROTATING

Beacon, Incl. 1 - 8, If Used

1шт.

1

A187542

LENS

Amber, If Used

1шт.

1

127158A1

LENS

Blue, If Used

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

Lens mounting

3шт.

3

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

4

NSS

NOT SOLD SEPARAT

Clip

1шт.

5

P40533

LAMP

Halogen

1шт.

6

A187575

O-RING

Drive Motor

1шт.

7

NSS

NOT SOLD SEPARAT

Base, Includes Drive Motor

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

9

193897A1

CAGE

Rotating Beacon

1шт.

10

L109042

GASKET

350 mm (13-13/16 in), Edge, Cut From F42827

1шт.

11

892-11006

LOCK WASHER,M6

3шт.

12

825-1406

NUT,M6, Cl 8

3шт.

13

238764A2

WIRE HARNESS

Cab Roof, Replaces 238764A1

1шт.

14

234194A1

SWITCH

Rotating Beacon, No Longer Used, Order 374430A2

1шт.

14

374430A2

BEACON SWITCH

Rotating Beacon, Replaces 234194A1

1шт.

15

A149799

FUSE

7,5 amp, No Longer Used, Order A149800

1шт.

15

A149800

FUSE,10 Amp

10 amp, Replaces A149799

1шт.

16

242101A5

HARNESS

Cab Main, Replaces 242101A2, 242101A3, 242101A4, -JEE0125745

1шт.

16

429188A1

HARNESS

Cab Main, JEE0125746-

1шт.

Выбрано товаров: 22
