Запчасти Case 721C (04-32) - LAMP ASSY, FRONT & REAR (04) - ELECTRICAL SYSTEMS

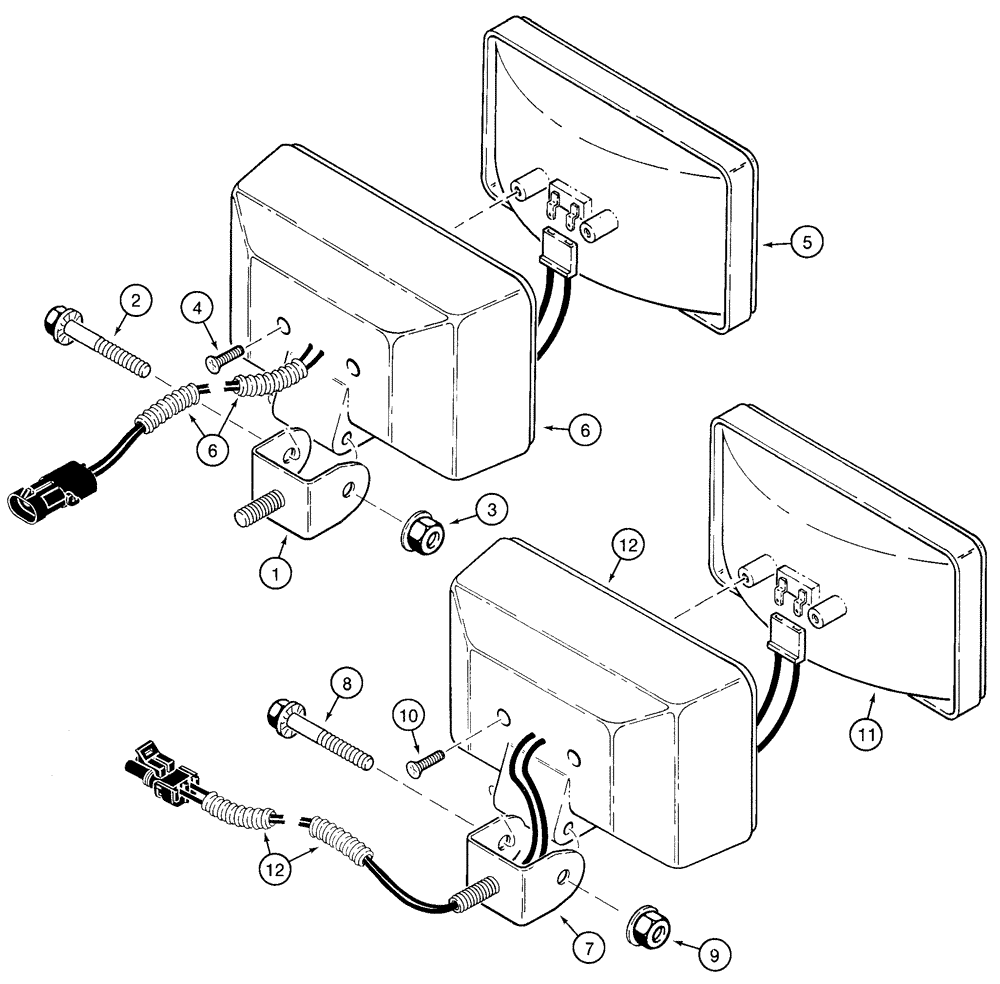

Схема запчастей Case 721C - (04-32) - LAMP ASSY, FRONT & REAR (04) - ELECTRICAL SYSTEMS
8
12
9
2
7
12
3
4
6
6
5
10
11
1

Артикул

Название

Примечание

Количество

North America Only

1шт.

Front Lamp

1шт.

A187519

LIGHT ASSY.,24V, 70W, Clear

Front, Drive

2шт.

1

A187913

SUPPORT

1шт.

2

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

273-10510

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

2шт.

5

103654A1

HEADLIGHT,Halogen, 24V, 60W

1шт.

6

NSS

NOT SOLD SEPARAT

Housing

1шт.

Front And Rear Flood Lamps

1шт.

Cab Or Canopy Flood Lamps

1шт.

A187520

LIGHT ASSY.,24V, 70W, Clear

4шт.

7

A187913

SUPPORT

1шт.

8

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

10

273-10510

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

2шт.

11

103653A1

HEADLIGHT,24V, 60W

1шт.

12

NSS

NOT SOLD SEPARAT

Housing

1шт.

Выбрано товаров: 18
