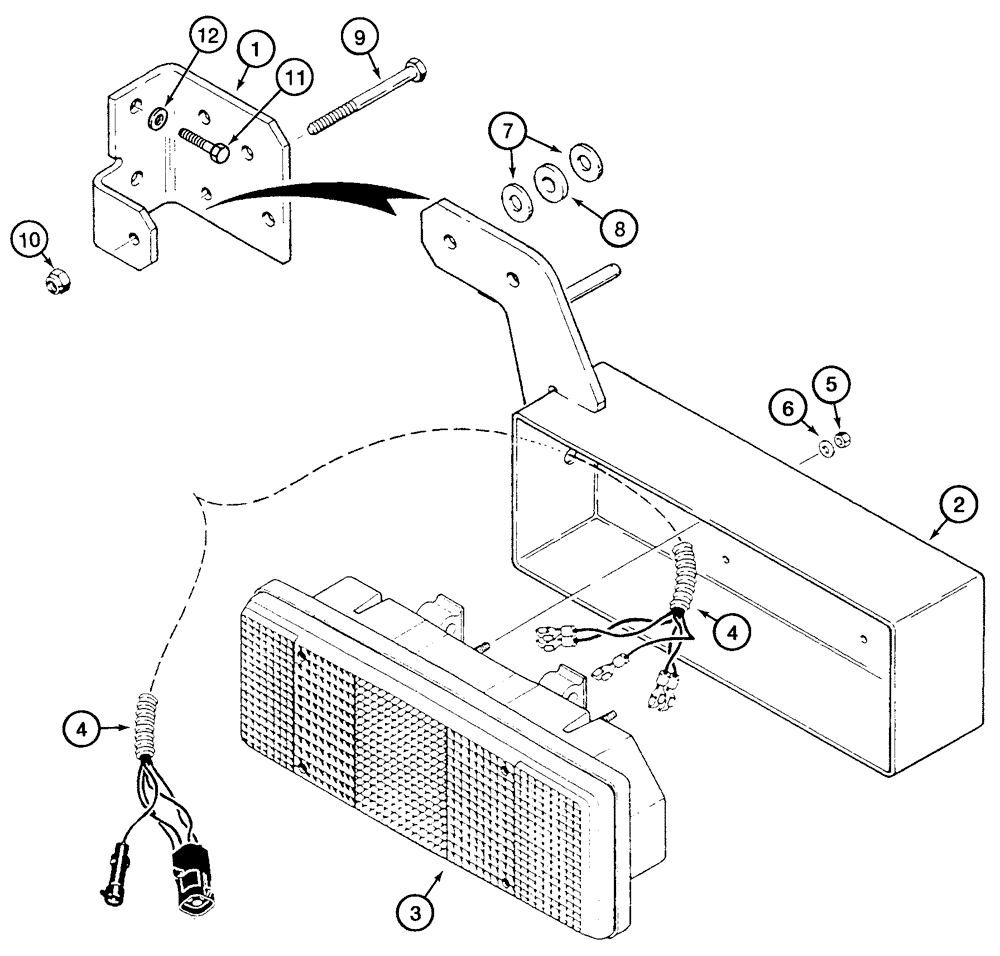

Запчасти Case 721C (04-28) - MOUNTING - LAMPS, REAR COMBINATION (04) - ELECTRICAL SYSTEMS

Europe Only

1шт.

1

E137360

SUPPORT

Combination Lamp, Right Hand

1шт.

1

E137357

SUPPORT

Combination Lamp, Left Hand, Not Shown

1шт.

2

E137359

SUPPORT

Combination Lamp, Right Hand

1шт.

2

E137361

SUPPORT

Combination Lamp, Left Hand, Not Shown

1шт.

3

E133218

LAMP, TAIL

LIGHT, TAIL Combination, Right Hand, See Figure 04-29

1шт.

3

E133219

LAMP, TAIL

LIGHT, TAIL Combination, Left Hand, See Figure 04-29, Not Shown

1шт.

4

E132941

HARNESS

Combination Lamp

2шт.

5

825-1408

NUT,M8, Cl 8

4шт.

6

892-11008

LOCK WASHER,8mm ID

4шт.

7

495-81238

WASHER,13/16" x 3" x .238", HDN

4шт.

8

120841A1

WASHER

Rubber

2шт.

9

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

2шт.

10

231-14412

LOCK NUT,3/4"-10, GB

2шт.

11

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

No longer used, Order 627-12030

4шт.

11

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Replaces 614-12030

4шт.

12

892-11012

LOCK WASHER,M12

4шт.
