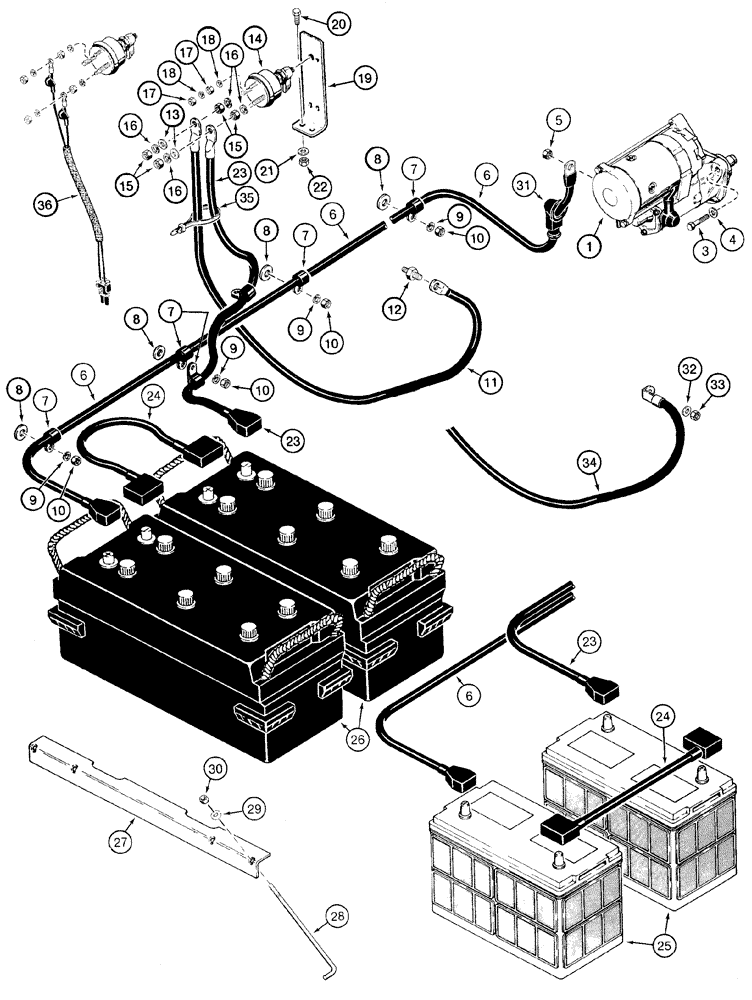

Запчасти Case 721C (04-18) - BATTERY - CABLES (04) - ELECTRICAL SYSTEMS

1

223900A1

STARTING MOTOR

See Figure 04-02

1шт.

1

223900A2R

REMAN-STARTER,24V, 7.5kW

Remanufactured Starting Motor

1шт.

1

223900A2C

CORE-STARTER,24V, 7.5kW

Return Part Number, Starting Motor

1шт.

3

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

3шт.

4

R24323

WASHER

3шт.

5

825-1410

NUT,M10, Cl 8

1шт.

6

284522A1

CABLE ASSY.

2100 mm (82-11/16 in), Battery To Starter, Positive Terminal

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Battery Cable

9шт.

8

S95569

WASHER

Hardened

6шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

11

284524A1

CABLE ASSY.

500 mm (19-11/16 in), Ground, Disconnect Switch

1шт.

12

L127553

STUD

1шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

L126256

SWITCH

Disconnect Switch

1шт.

14

NSS

NOT SOLD SEPARAT

Body

1шт.

15

129-187

NUT,5/16"-24, Brass

6шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

131-573

NUT,#10-32

4шт.

18

492-11010

LOCK WASHER,#10

4шт.

19

185389A2

LARGE PLATE

PLATE, LARGE Disconnect Switch, Replaces 185389A1

1шт.

20

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

23

284523A1

CABLE ASSY.

1400 mm(55-1/8 in), Ground, Disconnect Switch

1шт.

24

239952A1

CABLE ASSY.

400 mm (15-3/4 in), Jumper, Battery To Battery

1шт.

25

BMF31E

DRY BATTERY

12V, Standard, service replacement

2шт.

26

BHC4DA

BATTERY, DRY

BATTERY DRY 12V, Heavy Duty, Service Replacement

2шт.

27

L124221

SUPPORT

Hold Down

2шт.

28

L124224

BOLT

Hold Down

4шт.

29

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

30

231-1445

NUT,5/16"-18, GB

4шт.

31

L126713

BOOT

Cable At Starter, Cable At Disconnect

3шт.

32

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

33

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5, Brass

1шт.

34

239955A1

CABLE ASSY.

1080 mm (42-1/2 in), Ground, Engine To frame

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Retaining

1шт.

36

L127676

WIRE HARNESS

Disconnect Switch

1шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
