Запчасти Case 721C (04-15) - HARNESS, REAR CHASSIS (04) - ELECTRICAL SYSTEMS

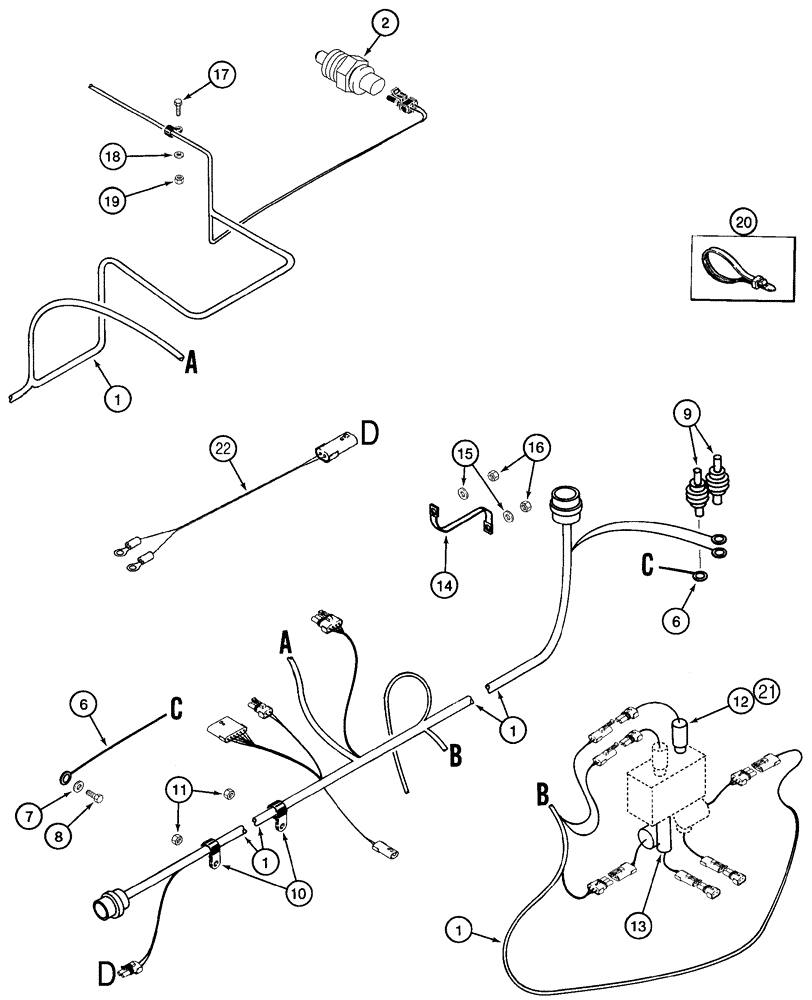

Схема запчастей Case 721C - (04-15) - HARNESS, REAR CHASSIS (04) - ELECTRICAL SYSTEMS
12
2
20
14
16
1
17
11
6
10
1
8
15
9
1
18
22
7
13
19
21
1
6

Артикул

Название

Примечание

Количество

1

284514A2

HARNESS

Rear Chassis

1шт.

2

321446A1

SENSOR

Hydraulic Oil Temperature

1шт.

6

239488A1

ELECTRICAL WIRE

WIRE 1390 mm (54-3/4 in), Engine Ground

1шт.

7

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

8

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

9

319055A1

JUNCTION BLOCK

2шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

Replaces 515-2395

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

12

L128914

PRESSURE SWITCH

Hydraulic Declutch

2шт.

13

232563A1

SWITCH, PRESSURE

PRESSURE SWITCH Hydraulic Warning

1шт.

14

L126051

GROUND STRAP

1шт.

15

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

16

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5, Brass

2шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

22

329571A1

HARNESS

Fuel Level Sender

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

Выбрано товаров: 19
