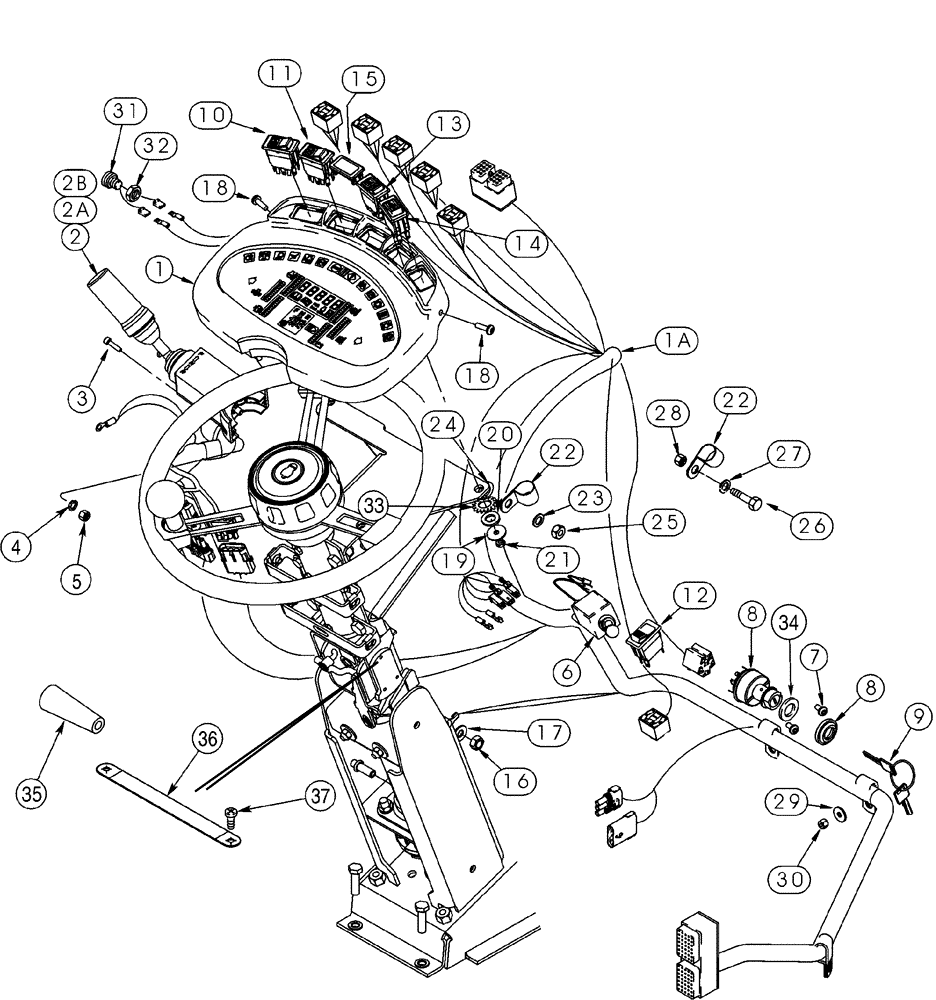

Запчасти Case 721C (04-08) - HARNESS - PEDESTAL (04) - ELECTRICAL SYSTEMS

278823A4

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Gray, Replaces 278823A2, 278823A3

1шт.

278823A4R

CLUSTER, INSTR.

Cluster, Instrument Reman For 721C, Gray

1шт.

278823A4C

CLUSTER, INSTR.

Cluster, Instrument Return Part Number

1шт.

1

399236A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Tan

1шт.

1a

232325A2

HARNESS

Front Pedestal

1шт.

2

238270A1

CONTROL

Includes 2A, 2B

1шт.

2

238270A1R

REMAN-JOYSTICK

721C - CASE WHEEL LOADER

1шт.

2

238270A1C

CORE-JOYSTICK

Return Part Number

1шт.

2a

NSS

NOT SOLD SEPARAT

COVER

1шт.

2b

NSS

NOT SOLD SEPARAT

SEAL

1шт.

3

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

4

892-11005

LOCK WASHER,M5

2шт.

5

824-1405

NUT,M5, Cl 5

2шт.

6

1987555C1

SWITCH

Turn Signal and Dimmer

1шт.

7

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Special, Replaces 1270742C1

2шт.

8

282775A1

IGNITION SWITCH

Incl. 9

1шт.

9

1964831C2

IGNITION KEY

Padded

1шт.

10

234201A1

SWITCH

Hazard Warning

1шт.

11

234276A1

SWITCH

Pilot Control

1шт.

12

316758A1

SWITCH

Parking

1шт.

13

234199A1

SWITCH

Up/Down Count

1шт.

14

234200A1

SWITCH

Program Reset

1шт.

15

86000535

PLUG,1.427" x .62", Plastic

Switch Opening

1шт.

16

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5, Brass

2шт.

17

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

18

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Special

2шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

20

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

21

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

4шт.

22

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

3шт.

23

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

26

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

29

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

3шт.

30

832-10406

NUT,M6 x 1, Cl 8

3шт.

31

A135520

SWITCH

Cold Start

1шт.

32

425-1110

NUT,5/8"-18, G5

1шт.

33

893-11012

LOCK WASHER,Ext Tooth, M12

4шт.

34

495-81072

WASHER,1 1/32" x 1 3/4" x .030"

(26.02 x 44.5 x 0.8 mm)

1шт.

35

283095A2

BALL KNOB

Steering Tilt

1шт.

36

349372A1

GROUND CABLE

Ground

1шт.

37

353169A1

SCREW

1/4 x 3/4

2шт.
