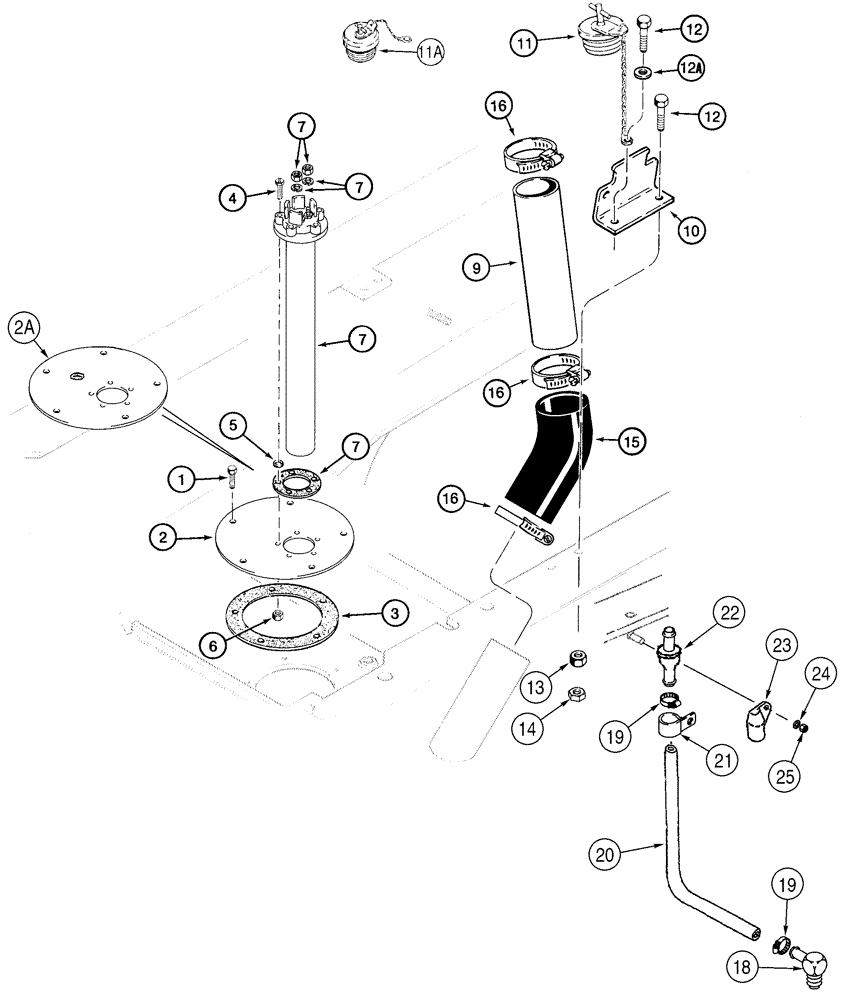

Запчасти Case 721C (03-04) - FUEL TANK FILLER - SENDER (03) - FUEL SYSTEM

1

L108414

BOLT

5шт.

2

329651A1

LARGE PLATE

PLATE, LARGE Tank Access, No Longer Available, Order 349267A1

1шт.

2a

349267A1

LARGE PLATE

PLATE, LARGE Tank Access, Replaces 329651A1

1шт.

3

L79876

GASKET,4.57mm Thk

1шт.

4

463-11020

SCREW,Hex Hd, #10-24 x 1 1/4"

5шт.

5

L115306

WASHER

Sealing

5шт.

6

86625057

NUT,#10-24, GB

If Used

5шт.

7

328870A1

SENDER UNIT

Fuel Level

1шт.

9

L128103

PIPE

Fuel Filler

1шт.

10

L128402

SUPPORT

Mounting

1шт.

11

L74929

FILLER CAP

No Longer Used, Order 178592A1

1шт.

11a

178592A1

PLUG

Filler Cap, Replaces L74929

1шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

12a

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

North America Only, If Used

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

L127180

FUEL HOSE

177 mm (7 in)

1шт.

16

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

3шт.

18

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

19

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

20

31-2280

FUEL HOSE

1626 mm (64 in), Cut From 32-012

1шт.

21

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Mounts to radiator shroud, Use existing hardware

1шт.

22

T103750

BREATHER

1шт.

23

186814A1

CAP

Mount To Radiator Guard

1шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
