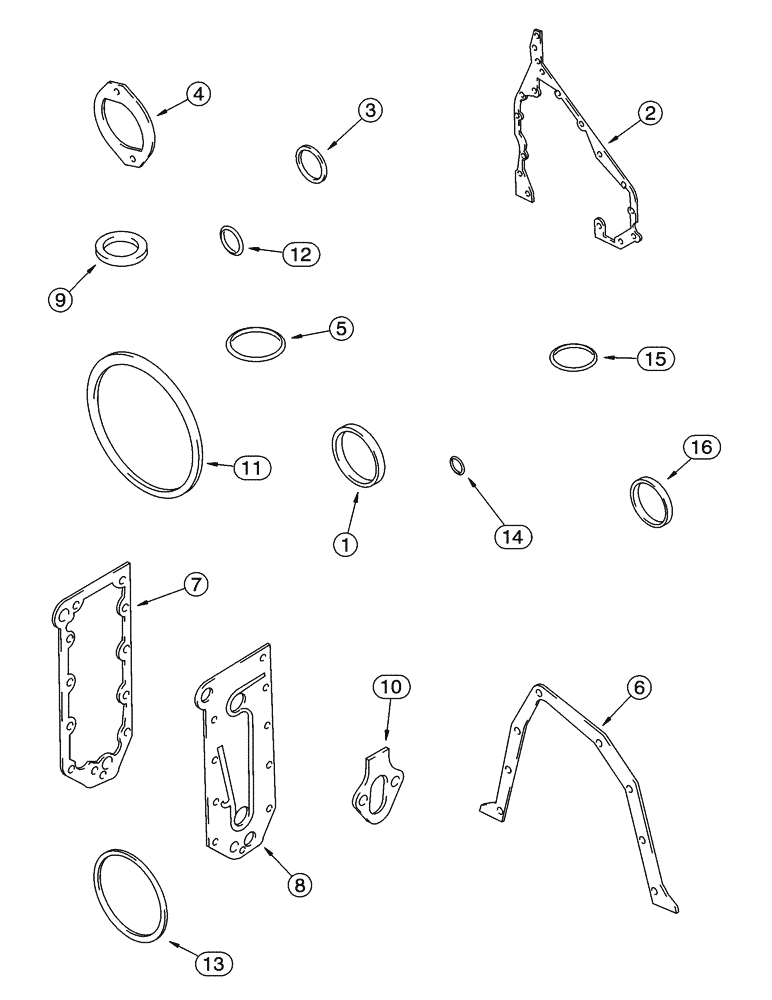

Запчасти Case 721C (02-27) - GASKET KIT (02) - ENGINE

6T-830 Emissions Certified Engine

1шт.

Cylinder Block

1шт.

A77855

KIT

Incl. 1 - 16

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-11

1шт.

2

J929253

GASKET

See Figure 02-11

1шт.

3

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Figure 02-11

1шт.

4

J931608

GASKET

See Figure 02-11

1шт.

5

J902089

SEAL,0.139" Thk x 3.859" ID, -241

See Figure 02-09

1шт.

6

J914301

GASKET

See Figure 02-23

1шт.

7

J918174

GASKET,0.71mm Thk

See Figure 02-15

1шт.

8

J929011

GASKET,1.19mm Thk

See Figure 02-15

1шт.

9

J901798

SEALING WASHER

Not Used

1шт.

10

J931059

GASKET

See Figure 03-07

1шт.

10

J931059

GASKET

See Figure 03-07

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-24

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

See Figure 02-24

1шт.

13

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

See Figure 02-25

6шт.

14

J913994

O-RING

See Figure 02-11

1шт.

15

J916284

O-RING

See Figure 03-08

1шт.

15

J916284

O-RING

See Figure 03-08

1шт.

16

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

Not Used

1шт.
