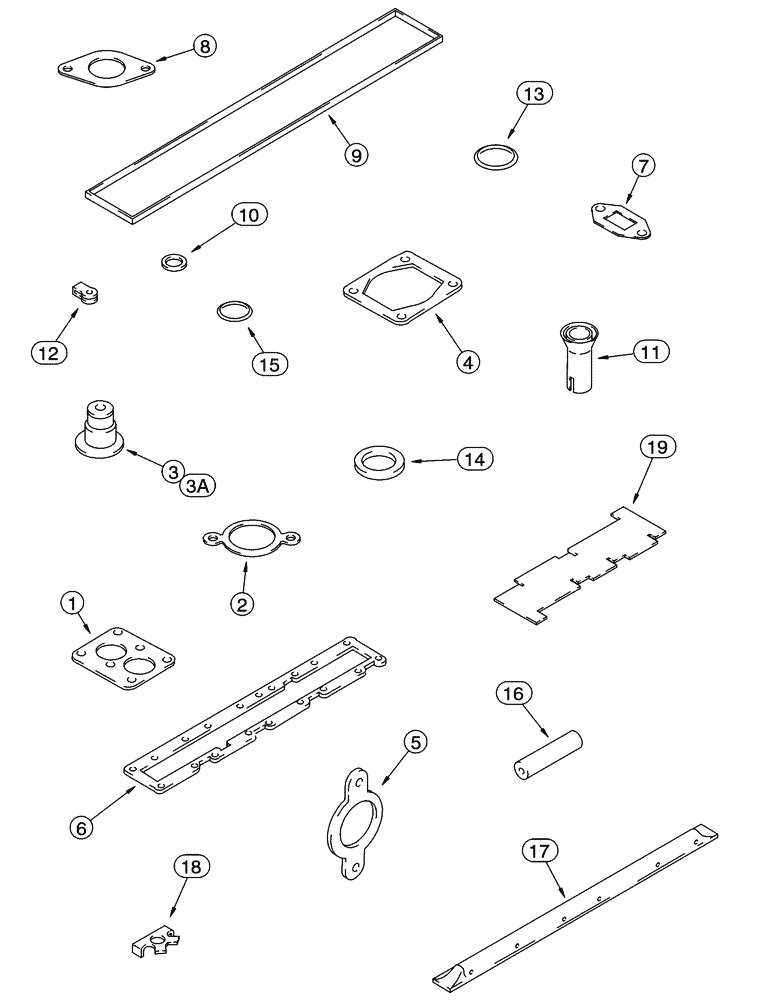

Запчасти Case 721C (02-26) - GASKET KIT (02) - ENGINE

6T-830 Emissions Certified Engine

1шт.

Valve Grind

1шт.

A77842

GASKET KIT

Incl. 1 - 19

1шт.

1

J914310

GASKET,0.8mm Thk

See Figure 02-19

1шт.

2

J918779

GASKET,1.19mm Thk

See Figure 02-19

1шт.

3

J915707

SEAL

See Figure 02-20, If Used

6шт.

3a

J927642

SEAL

If Used

6-12шт.

4

J911941

GASKET

See Figure 02-12

1шт.

5

J929012

GASKET,0.5mm Thk

See Figure 02-12

1шт.

6

J914311

MANIFOLD GASKET

See Figure 02-12

1шт.

7

J931350

GASKET

If Used

1шт.

6T-830 Emissions Certified Engine

1шт.

8

J942725

GASKET

See Figure 02-12

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

See Figure 02-18

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

See Figure 02-18

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

See Figure 03-09

6шт.

12

J903380

SEAL

See Figure 03-09

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm, See Figure 03-09

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

See Figure 02-19

1шт.

16

J930827

HOSE,51.00 mm

See Figure 02-18

1шт.

17

J919677

TUBE

See Figure 02-20

1шт.

18

J914708

LOCKING PLATE

See Figure 02-12

12шт.

19

J823921

GAUGE

1шт.
