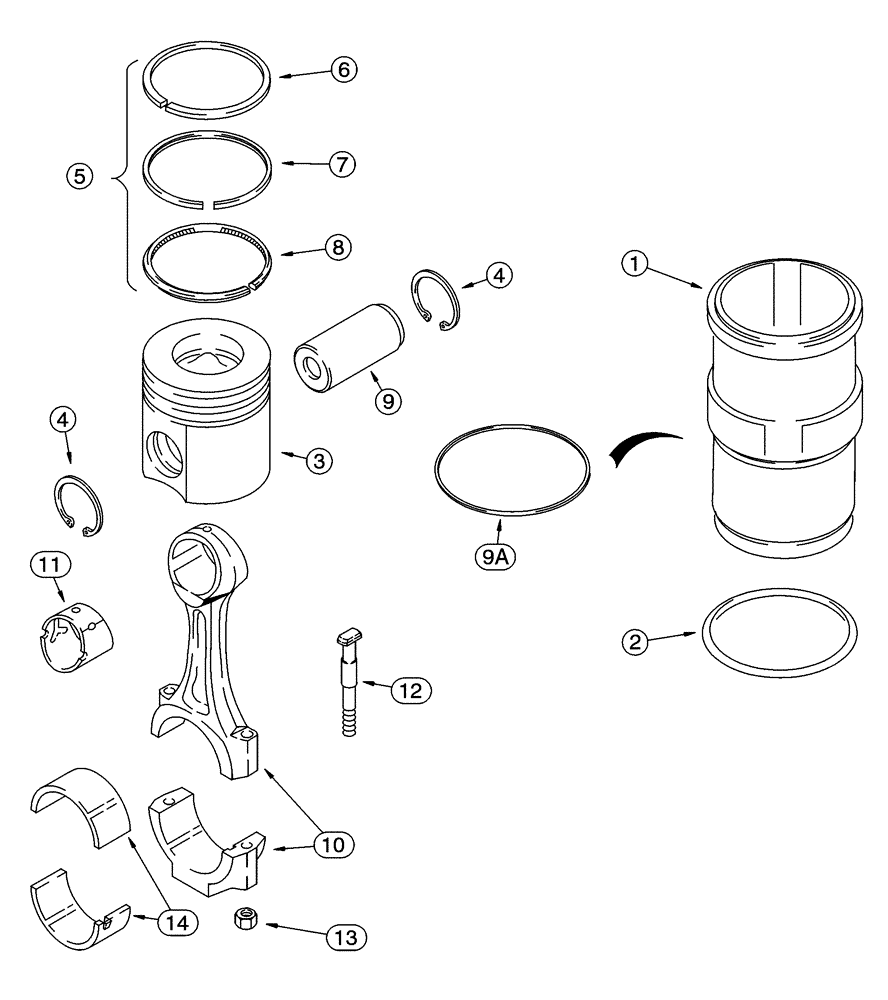

Запчасти Case 721C (02-25) - PISTONS- CONNECTING RODS (02) - ENGINE

.

6T-830 Emissions Certified Engine

1шт.

A77912

PACKAGE, REPAIR

Standard, Incl. 1 - 8

6шт.

1

J944344

SLEEVE CYLINDER

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

A77853

PISTON & RINGS KIT

Standard, Incl. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J802429

PISTON RINGS KIT

Standard, Incl. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

9

J901597

PIN

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9a

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9a

J924449

SHIM,1.000mm Thk

(.040")

1шт.

.

Connecting Rod

1шт.

84145656

CONNECTING ROD

Incl. 10 - 13; Replaces J901383

6шт.

84145656R

REMAN-CONNECTING ROD

Remanufactured, Replaces JR901383

6шт.

84145656C

CORE-ROD CONNECTING

Return Part Number, Core Connecting Rod Use To Return Core For Credit When Using a Remanufactured Assembly; Replaces JC901383

6шт.

84487529R

REMAN-CONNECTING ROD

721C, Reman for New P/N 84145656

6шт.

84487529C

CORE-ROD CONNECTING

Return Part Number

6шт.

10

NSS

NOT SOLD SEPARAT

Rod

1шт.

11

87343250

BUSHING,45.03mm ID x 49mm OD x 43mm L

Replaces J913990

1шт.

12

J928870

ROD

2шт.

13

J901381

SPECIAL NUT

No Longer Used, Order J934864

2шт.

13

J934864

NUT

Replaces J901381

2шт.

14

A77563

BEARING SET

Standard

6шт.

14

A77564

BEARING SET

Undersize 0,25 mm

6шт.

14

A77565

BEARING SET

Undersize 0,50 mm

6шт.

14

A77566

BEARING SET

Undersize 0,75 mm

6шт.

14

A77567

BEARING SET

Undersize 1,00 mm

6шт.
