(09-67) - DECALS - LATIN AMERICAN SPANISH

Запчасти Case 721C (09-67) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS

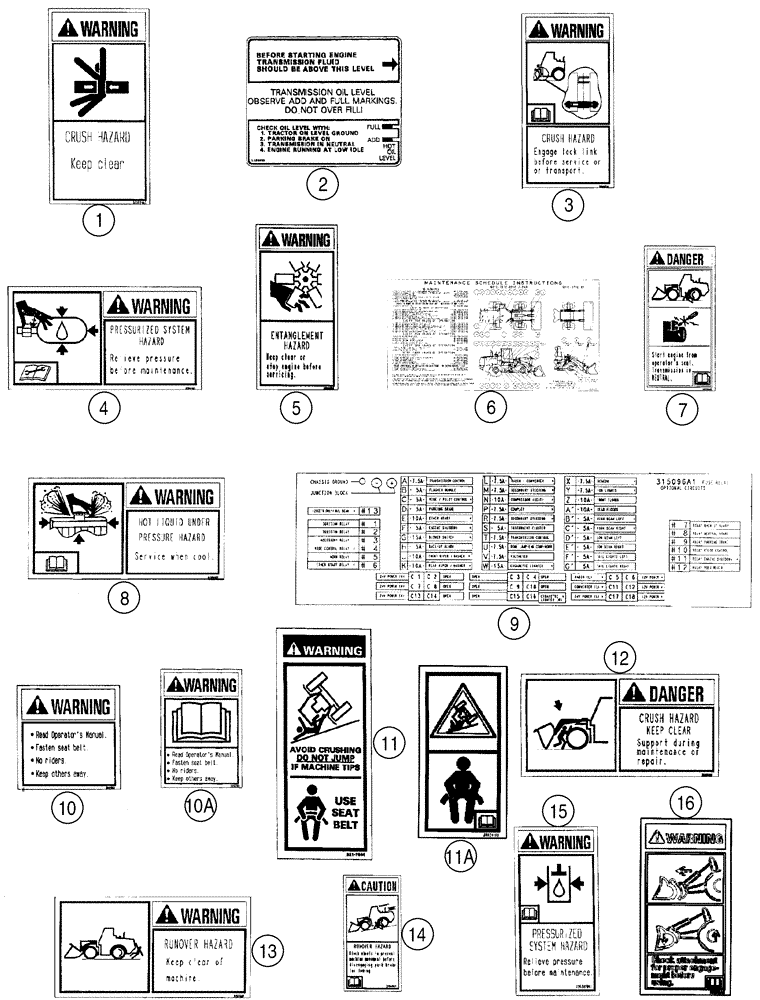

Схема запчастей Case 721C - (09-67) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS
16
6
12
10
9
4
13
14
3
2
11
8
1
10a
15
11a
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

334576A1

DECAL

Crush Hazard

2шт.

2

E133053

DECAL

Transmission Oil Level

1шт.

3

334573A1

DECAL

Crush Hazard

1шт.

4

334015A1

DECAL

Pressurized System Hazard

1шт.

5

334034A1

WARNING DECAL

Fan

2шт.

6

315108A2

DECAL

Maintenance Chart, XT and Z-Bar Loader

1шт.

7

334567A1

DECAL

Starting in Gear

1шт.

8

334664A1

DECAL

Hot Liquid Hazard

1шт.

9

315098A1

DECAL

Fuse Location

1шт.

10

334000A1

DECAL

Read the Operator's Manual, No Longer Used, Order 334000A2

1шт.

10a

334000A2

DECAL

Read the Operator's Manual, Replaces 334000A1

1шт.

11

124271A1

DECAL

Do Not Jump, If Used

1шт.

11a

386241A1

WARNING DECAL

Do Not Jump, If Used

1шт.

12

334677A1

DECAL

Crush Hazard

1шт.

13

334688A1

DECAL

Runover Hazard

1шт.

14

334704A1

DECAL

Block Wheels

1шт.

15

336011A1

DECAL

Pressurized System Hazard

2шт.

16

364918A1

DECAL

Check Attachment

1шт.
