(09-66) - DECALS - CANADIAN FRENCH

Запчасти Case 721C (09-66) - DECALS - CANADIAN FRENCH (09) - CHASSIS

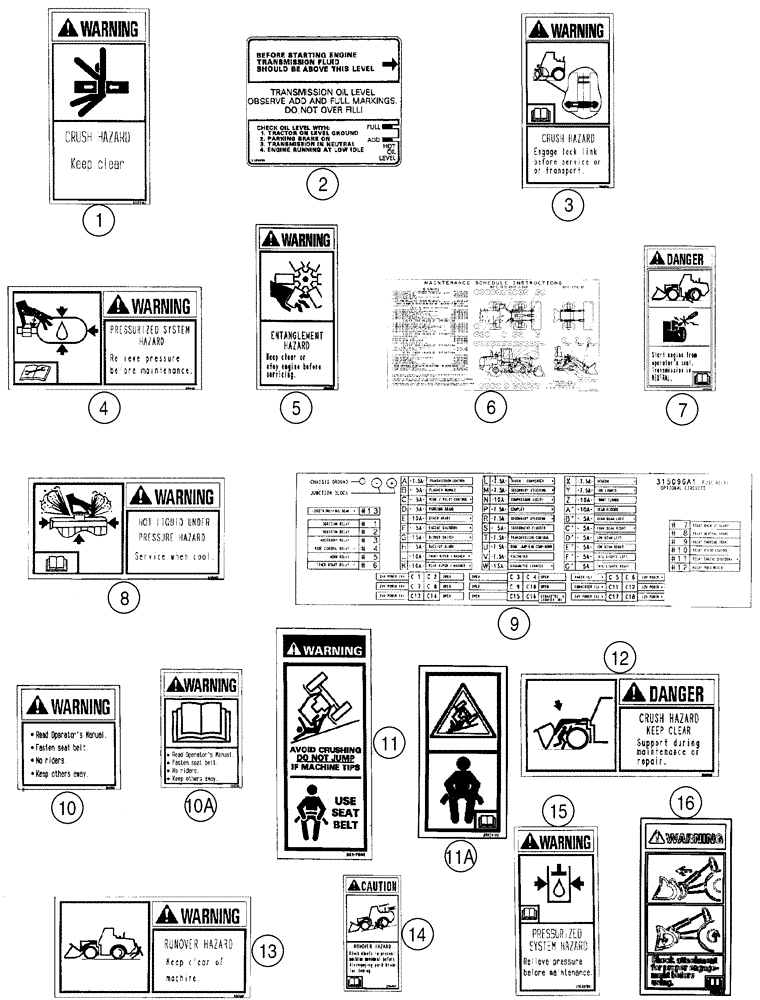

Схема запчастей Case 721C - (09-66) - DECALS - CANADIAN FRENCH (09) - CHASSIS
8
2
3
14
1
13
11
10
6
10a
4
11a
16
5
12
9
7
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

334577A1

DECAL

Crush Hazard

2шт.

2

E133092

DECAL

Transmission Oil Level

1шт.

3

334574A1

DECAL

Crush Hazard

1шт.

4

334012A1

DECAL

Pressurized System Hazard

1шт.

5

334033A1

DECAL

Fan

2шт.

6

315104A2

DECAL

Maintenance Chart, XT and Z-Bar Loader

1шт.

7

334568A1

DECAL

Starting in Gear

1шт.

8

334663A1

WARNING DECAL

Hot Liquid Hazard

1шт.

9

315097A1

DECAL

Fuse Location

1шт.

10

333999A1

DECAL

Read the Operator's Manual, No Longer Used, Order 333999A2

1шт.

10a

333999A2

DECAL

Read the Operator's Manual, Replaces 333999A1

1шт.

11

124269A1

DECAL

Do Not Jump, If Used

1шт.

11a

386241A1

WARNING DECAL

Do Not Jump, If Used

1шт.

12

334678A1

DECAL

Crush Hazard

1шт.

13

334686A1

DECAL

Runover Hazard

1шт.

14

334706A1

DECAL

Block Wheels

1шт.

15

336010A1

DECAL

Pressurized System Hazard

2шт.

16

364919A1

DECAL

Check Attachment

1шт.
