(09-65) - DECALS - BRAZILIAN PORTUGUESE

Запчасти Case 721C (09-65) - DECALS - BRAZILIAN PORTUGUESE (09) - CHASSIS

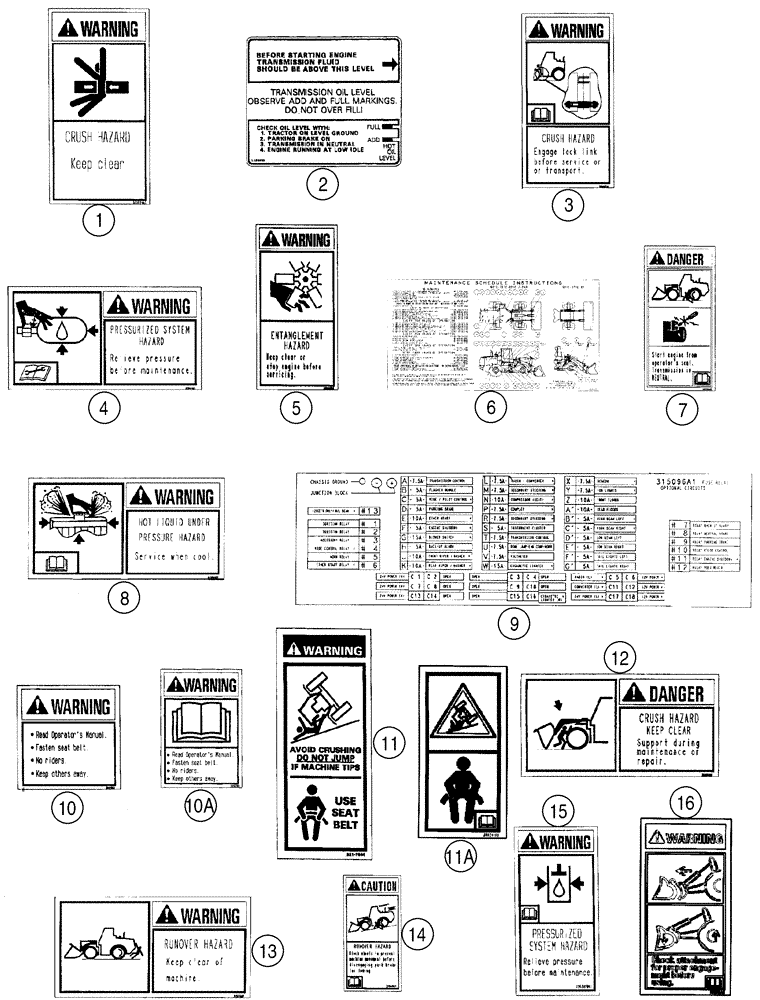

Схема запчастей Case 721C - (09-65) - DECALS - BRAZILIAN PORTUGUESE (09) - CHASSIS
6
15
10
16
3
14
13
10a
11a
11
8
7
12
1
5
2
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

334575A1

DECAL

Crush Hazard

2шт.

2

147109A1

DECAL

Transmission Oil Level

1шт.

3

334572A1

DECAL

Crush Hazard

1шт.

4

334016A1

DECAL

Pressurized System Hazard

1шт.

5

334035A1

DECAL

Fan

2шт.

6

315112A2

DECAL

Maintenance Chart, XT and Z-Bar Loader

1шт.

7

334566A1

DECAL

Starting in Gear

1шт.

8

334665A1

WARNING DECAL

Hot Liquid Hazard

1шт.

9

318160A1

DECAL

Fuse Location

1шт.

10

334001A1

DECAL

Read the Operator's Manual, No Longer Used, Order 334001A2

1шт.

10a

334001A2

DECAL

Read the Operator's Manual, Replaces 334001A1

1шт.

11

124273A1

DECAL

Do Not Jump, If Used

1шт.

11a

386241A1

WARNING DECAL

Do Not Jump, If Used

1шт.

12

334676A1

DECAL

Crush Hazard

1шт.

13

334691A1

DECAL

Runover Hazard

1шт.

14

334703A1

DECAL

Block Wheels

1шт.

15

336009A1

DECAL

Pressurized System Hazard

2шт.

16

364920A1

DECAL

Check Attachment

1шт.
