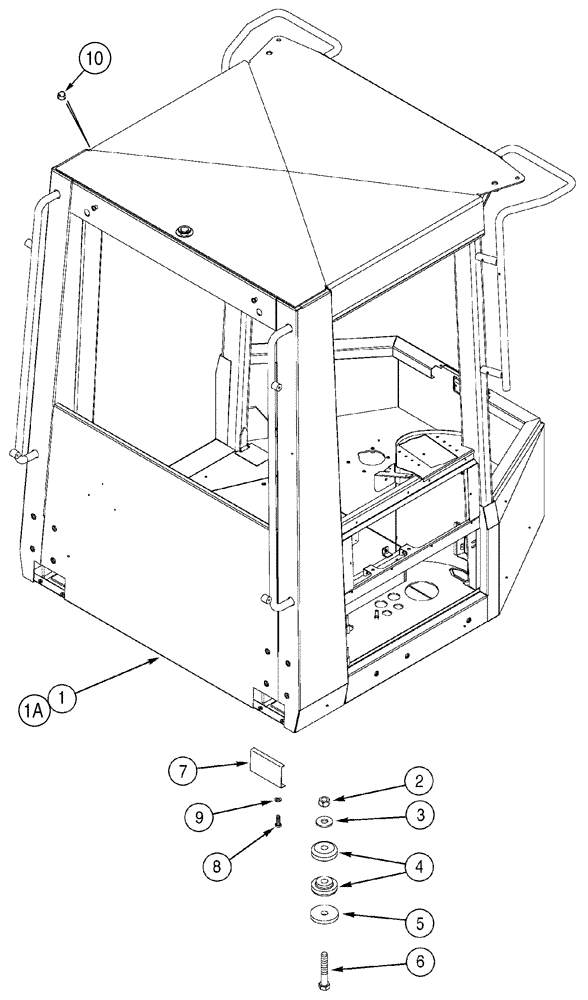

Запчасти Case 721C (09-59) - CANOPY, ROPS - MOUNTING (09) - CHASSIS

North America Only

1шт.

1

227850A1

ROOF

Canopy, No Longer Available, Order 227850A2

1шт.

1a

227850A2

ROOF

Canopy, Replaces 227850A1

1шт.

2

329-1014

NUT,7/8"-9, G8

4шт.

3

396-41094

WASHER,23.82mm ID x 57.15mm OD x 5.56mm Thk

4шт.

4

R54331

HITCH DAMPER

Canopy Support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

Special

4шт.

6

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

7

241301A1

COVER

Access

2шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

9

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

Replaces 895-11006

4шт.

10

353-591

PLUG,2

1/ in 2

2шт.
