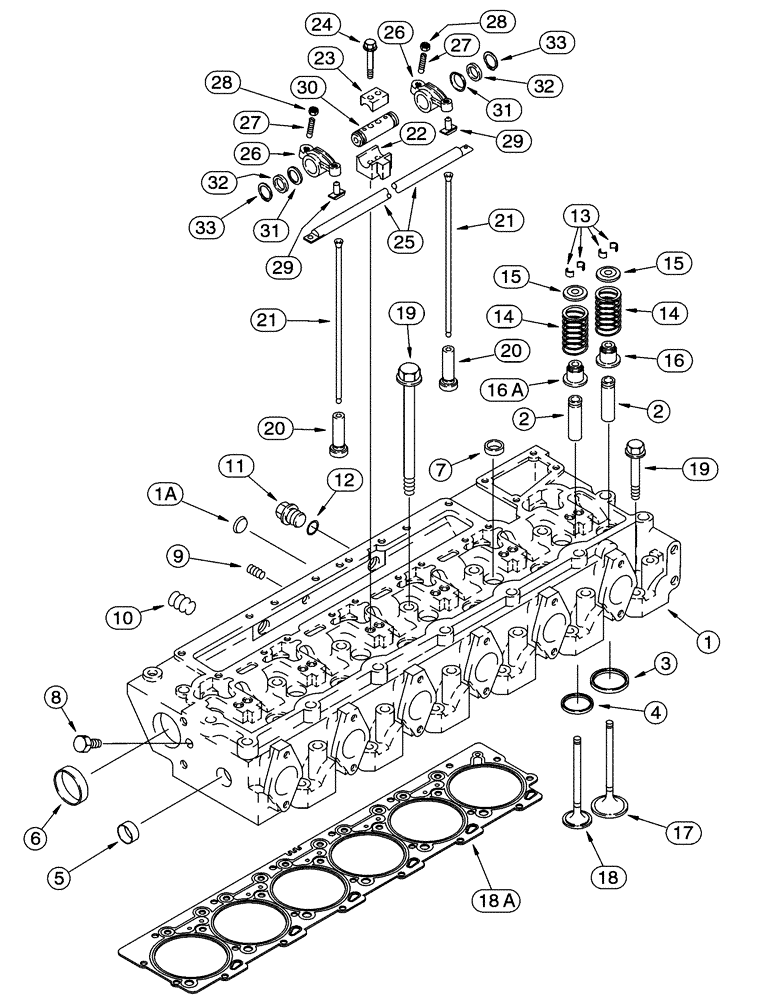

Запчасти Case 721C (02-20) - CYLINDER HEAD - VALVE MECHANISM, (02) - ENGINE

6T-830 Emissions Certified Engine

1шт.

JR925642

HEAD

Remanufactured, North America Only, No Longer Used, Order JR936280

1шт.

JR936280

REMAN-CYLINDER HEAD

Remanufactured, North America Only, Replaces JR925642

1шт.

JC916464

HEAD

Use To Return Core For Credit When Using a Remanufactured Assembly, No Longer Used, Order JC936280

1шт.

JC936280

REMAN-CYLINDER HEAD

Use To Return Core For Credit When Using a Remanufactured Assembly, Replaces JC916464

1шт.

6T-830 Emissions Certified Engine

1шт.

J925642

HEAD (CYLINDER)

Cylinder, With Valves, Incl. 1 - 18, No Longer Used, Order J936280

1шт.

84262945R

REMAN-CYLINDER HEAD

721C, Reman For New P/N J925642

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

J936280

HEAD

Cylinder, With Valves, Incl. 1 - 18, Replaces J925642

1шт.

84262945R

REMAN-CYLINDER HEAD

721C, Reman For New P/N J936280

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

1

J920031

HEAD (CYLINDER)

Cylinder, Without Valves, Incl.1A - 7, No Longer Used, Order J936264

1шт.

84262945R

REMAN-CYLINDER HEAD

721C, Reman For New P/N J920031

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

1

J936264

HEAD

Cylinder, Without Valves, Incl. 1A - 7, Replaces J920031

1шт.

84262945R

REMAN-CYLINDER HEAD

721C, Reman For New P/N J936264

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

1a

J912900

PLUG

24 mm

1шт.

2

J923564

VALVE GUIDE

12шт.

6T-830 Emissions Certified Engine

1шт.

3

J924582

INSERT

Intake

6шт.

3

J925468

SEAT, VALVE

0,25 mm, Intake, Oversize

6шт.

3

J925470

SEAT, VALVE

0,50 mm, Intake, Oversize

6шт.

4

J929005

INSERT

Exhaust

6шт.

4

J929006

INSERT

0,25 mm, Exhaust, Oversize

6шт.

4

J929007

INSERT

0,50 mm, Exhaust, Oversize

6шт.

5

J920443

PLUG

30 mm

1шт.

6

A77782

PLUG

58 mm

2шт.

7

41-1616

PLUG,Cup, 1", Stainless

5шт.

8

A77534

PLUG

1/16 PT

1шт.

9

A77428

PLUG

1/4 PT, If Used

1шт.

10

A77429

PLUG

1/2 PT

2-3шт.

11

J924148

PLUG,M22 x 1.5

M22

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

2шт.

13

J901177

VALVE

24шт.

14

J906412

VALVE SPRING

12шт.

15

J912976

RETAINER

12шт.

16

J915707

SEAL

Valve, If Used

6шт.

6T-830 Emissions Certified Engine

1шт.

16a

J927642

SEAL

Exhaust, Valve, Replaces J919038

6-12шт.

17

J924492

STD INLET VALVE

STD ENGINE INLET VALVE

6шт.

18

J921444

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

6шт.

18a

J931019

GASKET

See Figure 02-18, No Longer Available, Order J935585

1шт.

18a

J935585

GASKET

See Figure 02-18, Replaces J931019

1шт.

19

J917728

BOLT

160 mm

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

80 mm

12шт.

20

J931623

TAPPET

12шт.

21

J905194

PUSH ROD

12шт.

22

J905870

SUPPORT

6шт.

23

J901693

CLAMP

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

12шт.

25

J919677

TUBE

1шт.

26

J901717

ROCKER

Includes 27, 28, 29

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

28

A77902

NUT

3/8 - 24 NF

1шт.

29

NSS

NOT SOLD SEPARAT

Insert

1шт.

30

J919435

SHAFT

6шт.

31

J906100

SPRING CUP

12шт.

32

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

12шт.

33

100-1187

SNAP RING,#87, Ext

12шт.
