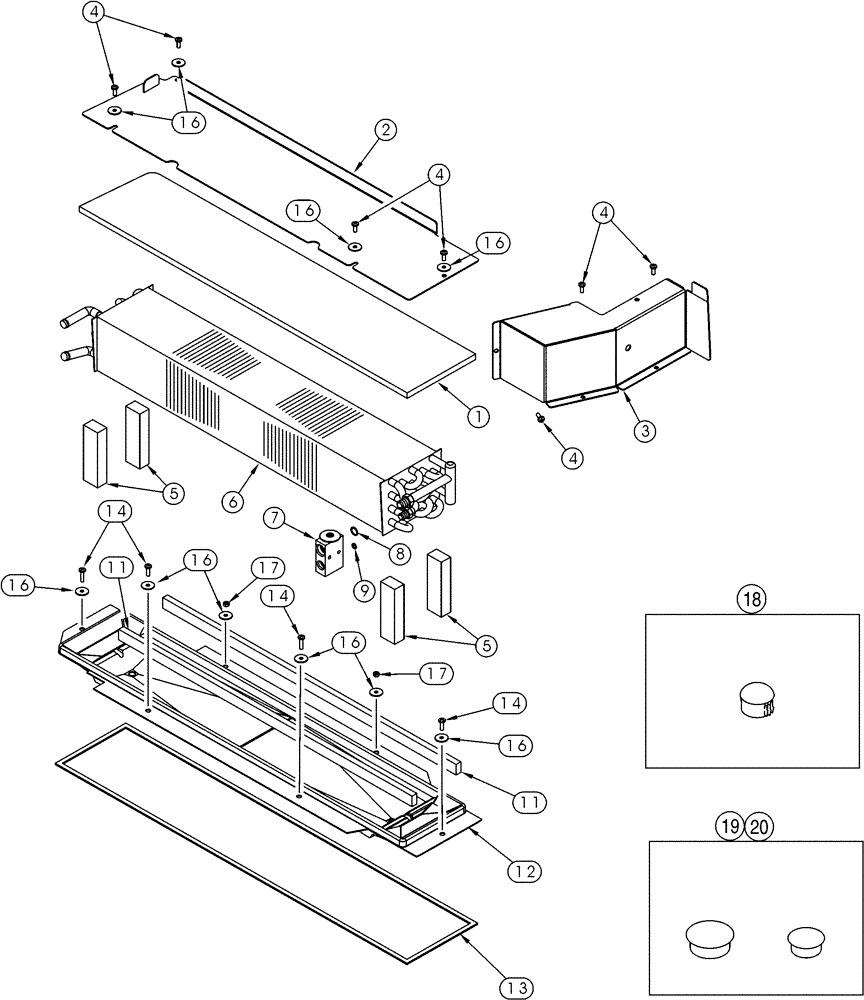

Запчасти Case 721C (09-51) - HEATER - AIR CONDITIONING CORE (09) - CHASSIS

1

239943A1

COVER

Core, Upper

1шт.

2

197696A1

COVER

Core

1шт.

3

184680A1

COVER

Expansion Valve

1шт.

4

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

7шт.

5

1340075C2

SEAL

130 mm (5-1/8 in), Core End, Cut From 1999750C1

4шт.

233424A1

HEATER

Assembly, Heating and Air Conditioning, Incl. 6 - 9

1шт.

6

233425A1

HEATER

See 10 for Core Used With Heater Only

1шт.

7

1990756C2

VALVE

1шт.

8

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

9

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

10

234325A1

HEATER

Models With Heater Only, Not Shown

1шт.

11

98357C1

SEALING STRIP

790 mm (31-3/32 in), Bottom Of Drip Pan, Cut From 98390C1

2шт.

12

1339577C3

PAN

Condensation

1шт.

13

1977907C1

SEAL

2213 mm (87-1/8 in), Floor Under Condensation Tray, Cut From 187874C2

1шт.

14

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Replaces 840-1620

4шт.

16

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

9шт.

17

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

18

353-404

PLUG,Dome, .500" hole, Nylon

If Used

2шт.

19

205-105

HOLE PLUG BUTTON,1"

If Used

1шт.

20

205-123

HOLE PLUG BUTTON,1 1/4"

If Used

1шт.
