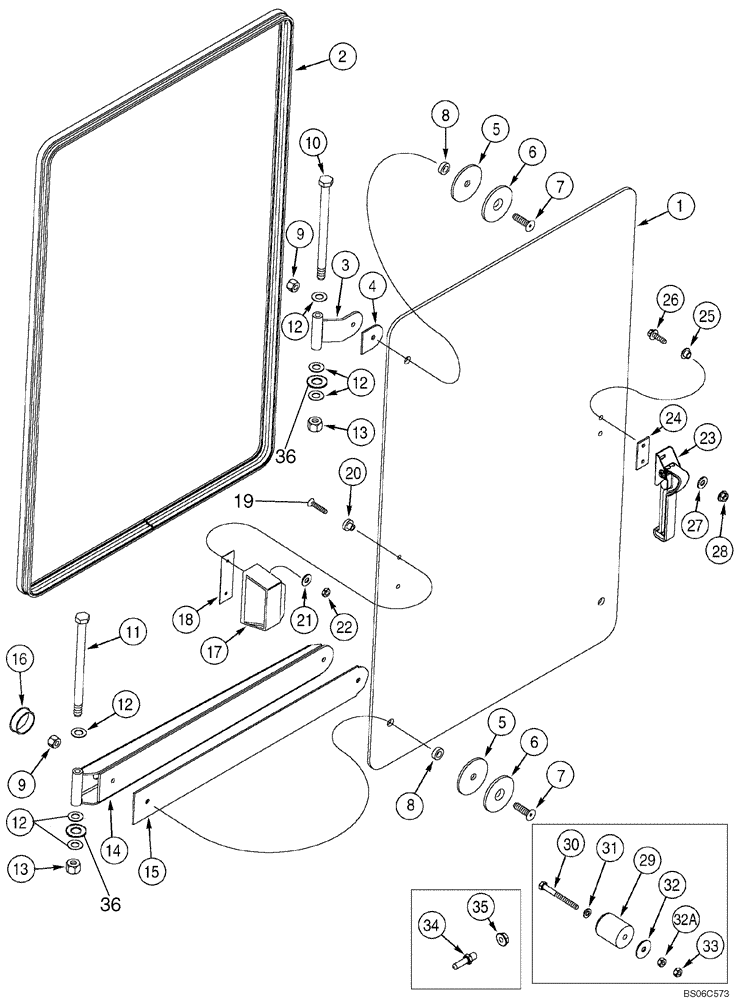

Запчасти Case 721C (09-47) - CAB DOOR - WINDOW, LEFT-HAND (09) - CHASSIS

1

324071A1

GLASS

Left Hand Window

1шт.

2

253386A1

SEAL

LH Window; 3388 mm (133-13/32 in) long, Cut From 275202A1 Bulk

1шт.

3

323007A1

HINGE

Window, Upper

1шт.

4

323010A1

SEALING STRIP

Hinge

1шт.

5

324073A1

PAD

Window

3шт.

6

321221A1

WASHER,9.9mm ID x 50mm OD x 3.8mm Thk

3шт.

7

326202A1

SCREW,Phillips Drive, Flat HD, M8 x 1.25 x 30mm, Cl 4.8

M8 x 30, Special

3шт.

8

323009A1

BUSHING,8.8mm ID x 15.5mm OD x 4.8mm L

3шт.

9

326203A1

NUT

3шт.

10

827-10200

BOLT,Hex, M10 x 1.5 x 200mm, Cl 10.9

1шт.

11

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

1шт.

12

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

7шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

322786A1

HINGE

Window, Lower

1шт.

15

323008A1

SEALING STRIP

Hinge

1шт.

16

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

17

97399C1

HANDLE

1шт.

18

R54047

PAD,30mm OD x 0.76mm Thk

Handle

1шт.

19

142-104

SCREW,Oval HD, #10 - 24 x 1"

2шт.

20

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

2шт.

21

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64")

2шт.

22

F45165

SPECIAL NUT,#10-24

No. 10

2шт.

23

317171A1

LEVER

Window

1шт.

24

194190A2

GASKET,3.2mm Thk

1шт.

25

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

2шт.

26

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

M6 x 20

2шт.

27

225913A1

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

2шт.

28

97005C1

FLANGE NUT

M6

2шт.

29

L126483

BUMPER

Rubber

2шт.

30

840-1660

SCREW,Pan HD, M6 x 60mm, Cl 4.8

2шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

32

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

32a

832-10406

NUT,M6 x 1, Cl 8

2шт.

33

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

34

117724A1

PIN,10mm OD x 37.8mm L

Window Catch, At Door Frame

1шт.

35

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

36

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.
