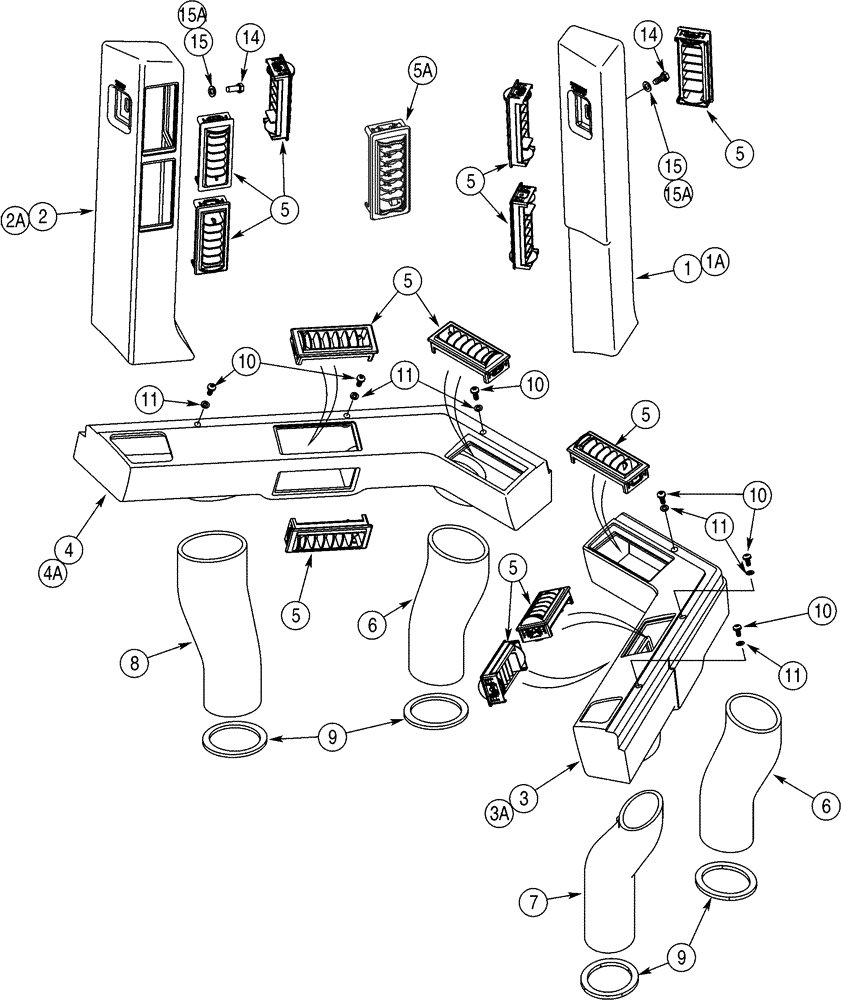

Запчасти Case 721C (09-44) - CAB - PLENUMS, DUCTS AND LOUVERS (09) - CHASSIS

1

226332A1

CONDUIT

Vertical Plenum, Right Hand, If Used

1шт.

1a

369713A1

AIR DUCT

Vertical Plenum, Right Hand, Gray, If Used

1шт.

1a

399226A1

AIR DUCT

Vertical Plenum, Right Hand, Tan, If Used

1шт.

2

226330A1

CONDUIT

Vertical Plenum, Left Hand, If Used

1шт.

2a

369714A1

PLASTIC

Vertical Plenum, Left Hand, Gray, If Used

1шт.

2a

399222A1

AIR DUCT

Vertical Plenum, Left Hand, Tan, If Used

1шт.

3

226331A1

CONDUIT

Front Plenum, Right Hand, If Used

1шт.

3a

369715A1

PLASTIC

Front Plenum, Right Hand, Gray, If Used

1шт.

3a

399224A1

AIR DUCT

Front Plenum, Right Hand, Tan, If Used

1шт.

4

226329A1

CONDUIT

Front Plenum, Left Hand, If Used

1шт.

4a

369716A1

PLASTIC

Front Plenum, Left Hand, Gray, If Used

1шт.

4a

399223A1

AIR DUCT

Front Plenum, Left Hand, Tan, If Used

1шт.

5

1990950C2

VENT

Used With 1, 2, 3, 4

12шт.

5a

363921A1

VENT

Used With 1A, 2A, 3A, 4A, Gray

12шт.

5a

363882A1

VENT

Used With 1A, 2A, 3A, 4A, Tan

12шт.

6

275495A1

AIR DUCT

Floor, Front Plenum, Center

2шт.

7

275498A1

AIR DUCT

Floor, Front Plenum, Right Hand

1шт.

8

275497A1

AIR DUCT

Floor, Front Plenum, Left Hand

1шт.

9

233308A1

GASKET

Floor Duct

4шт.

10

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

6шт.

11

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

M6

6шт.

14

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Used with 1, 2

2шт.

15a

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Used with 1A, 2A

2шт.
