Запчасти Case 721C (09-41) - CAB - INSULATION (09) - CHASSIS

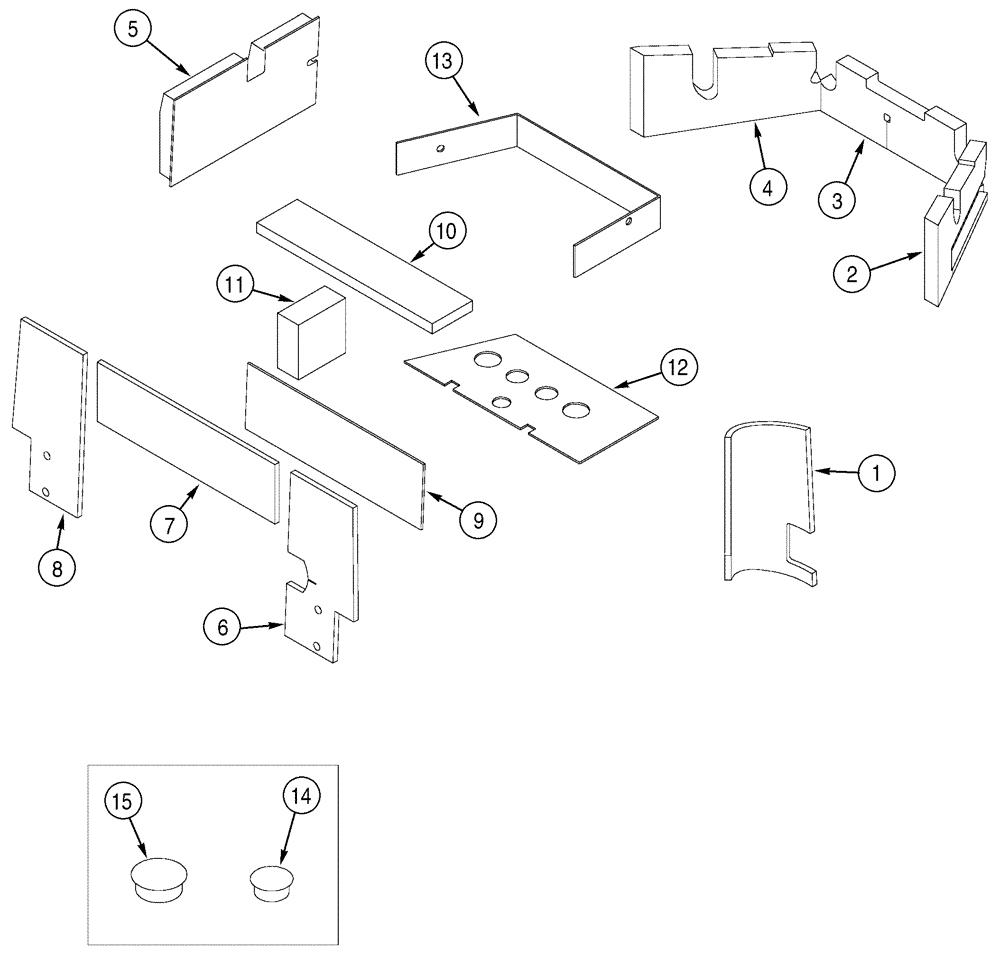

Схема запчастей Case 721C - (09-41) - CAB - INSULATION (09) - CHASSIS
5
15
2
9
7
11
12
6
4
8
10
14
13
1
3

Артикул

Название

Примечание

Количество

Models With Air Conditioning

1шт.

1

231098A2

INSULATOR

Insulation, Tower

1шт.

2

230914A2

INSULATOR

Cowl Insulation, Right Hand, Gray

1шт.

2

399196A1

FOAM INSULATION

Cowl, RH, Tan

1шт.

3

230913A2

INSULATOR

Cowl Insulation, Center, Gray

1шт.

3

399197A1

FOAM INSULATION

Cowl, Center, Tan

1шт.

4

230916A2

INSULATOR

Cowl Insulation, Left Hand, Gray

1шт.

4

399198A1

FOAM INSULATION

Cowl, LH, Tan

1шт.

5

236233A1

INSULATOR

Door Bottom, Gray

1шт.

5

399199A1

FOAM INSULATION

Door Bottom, Tan

1шт.

6

234147A2

FOAM INSULATION

Rear Panel, RH

1шт.

7

234148A1

FOAM INSULATION

Rear Panel, Center

1шт.

8

234149A2

FOAM INSULATION

Rear Panel, LH

1шт.

9

257368A1

FOAM INSULATION

Air Box, Rear

1шт.

10

257367A1

FOAM INSULATION

Air Box, Top

1шт.

11

257366A1

FOAM INSULATION

Air Box, Left Hand Side

1шт.

12

280692A2

FOAM INSULATION

Seat Mount, Bottom

1шт.

13

280694A1

FOAM INSULATION

Seat Mount, Side

1шт.

14

353-408

PLUG,Dome, .750" hole, Nylon

5шт.

15

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

Выбрано товаров: 20
