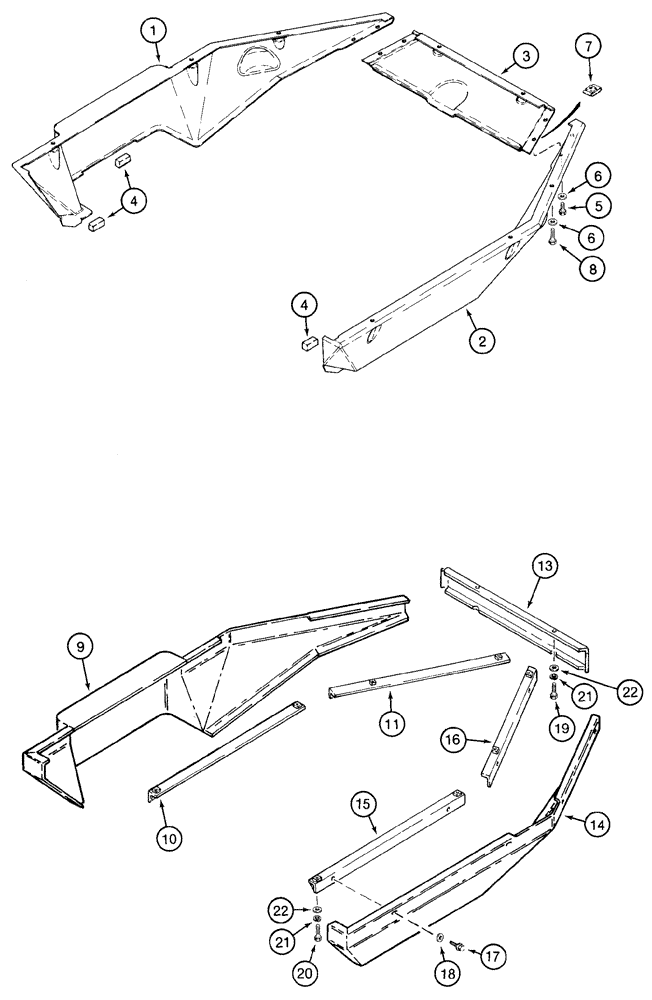

Запчасти Case 721C (09-38) - COVERS - CAB AND CANOPY, LOWER (09) - CHASSIS

Plastic Covers

1шт.

1

L129054

SKIRT

Left Hand

1шт.

2

L129055

SKIRT

Right Hand

1шт.

3

L129056

SKIRT

Center

1шт.

4

L129961

SEALING STRIP

51 mm (2 in), Adhesive Back

3шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

7

833-40308

SPRING NUT,M8, U

4шт.

Metal Covers

1шт.

9

L126620

COVER

Left Hand

1шт.

10

322010A1

SUPPORT

Left Hand Rear

1шт.

11

322012A1

SUPPORT

Left Hand Front

1шт.

13

L129618

SHEET

Center

1шт.

14

L125718

COVER

Right Hand

1шт.

15

322009A1

SUPPORT

Right Hand Rear

1шт.

16

322011A1

SUPPORT

Right Hand Front

1шт.

17

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

8шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

19

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

21

892-11008

LOCK WASHER,8mm ID

10шт.

8

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.
