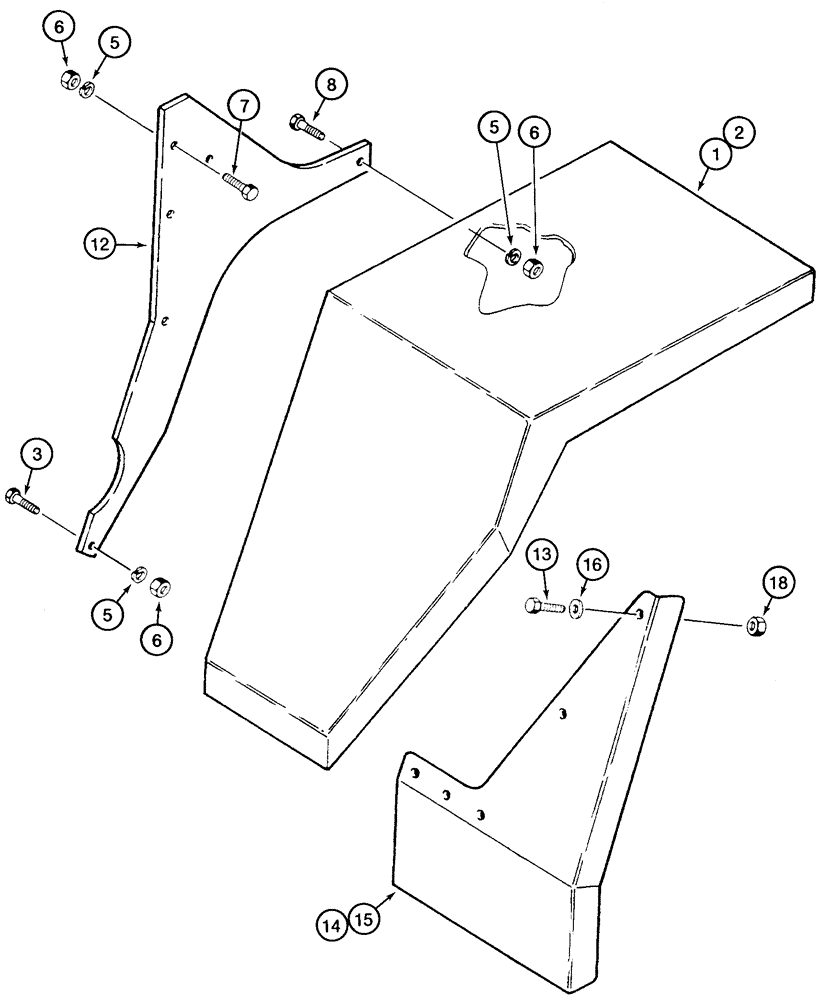

Запчасти Case 721C (09-30) - FENDERS, FRONT - TUV (09) - CHASSIS

Europe Only

1шт.

XT Loader

1шт.

Z-Bar Loader

1шт.

1

339966A1

FENDER

Front, Right Hand

1шт.

2

339962A1

FENDER

Front, Left Hand, Not Shown

1шт.

3

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

5

892-11012

LOCK WASHER,M12

No Longer Used, Order 896-11012

18шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Replaces 892-11012

18шт.

6

829-1412

NUT,M12, Cl 10.9

No Longer Used, Order 832-10412

18шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

Replaces 829-1412

18шт.

7

627-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

M12 x 60; 10.9

4шт.

8

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

12

E137454

SUPPORT

Fender

2шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

10шт.

14

129003A1

SKIRT

Right Hand

1шт.

15

129002A1

SKIRT

Left Hand, Not Shown

1шт.

16

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

10шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

10шт.
