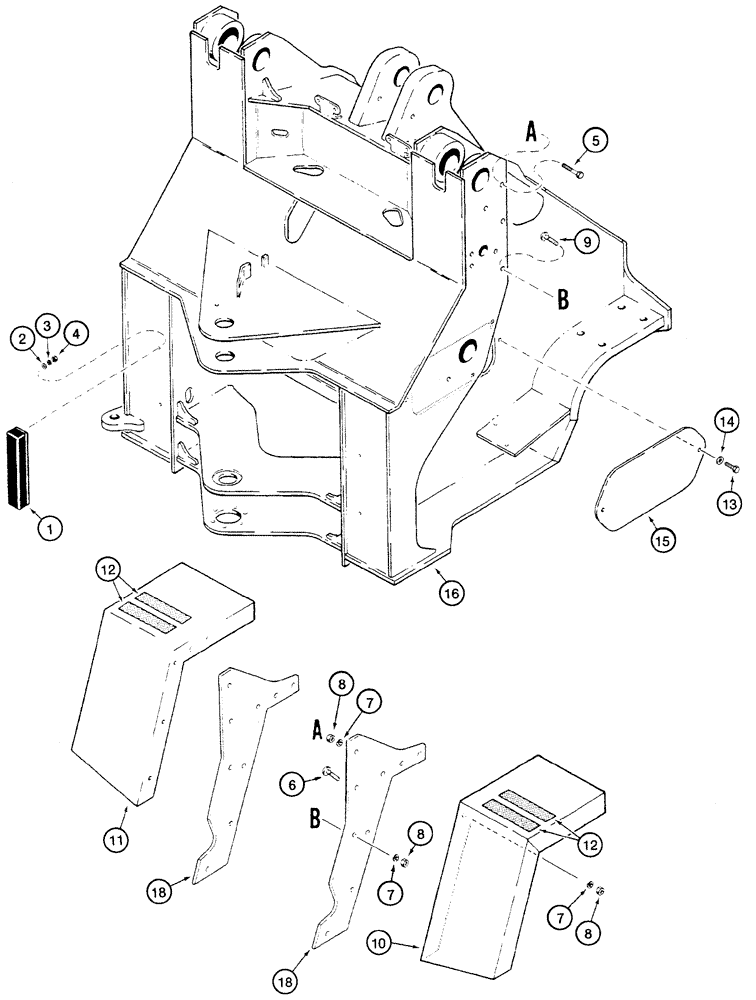

Запчасти Case 721C (09-27) - FRAME, FRONT - FENDERS (09) - CHASSIS

Europe Only

1шт.

Z-Bar Loader

1шт.

1

L127077

HITCH DAMPER

Chassis

2шт.

2

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Replaces 892-11012

18шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

Replaces 829-1412

18шт.

9

811-12050

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8

4шт.

10

339966A1

FENDER

Front, Right Hand

1шт.

11

339962A1

FENDER

Front, Left Hand

1шт.

12

D55216

PAD,2" x 9"

2 x 9 in, Front Fender

4шт.

13

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

15

L125240

LARGE PLATE

PLATE, LARGE Front Frame

2шт.

16

313882A1

CHASSIS

Front Chassis, No Longer Used, Order 365465A1

1шт.

16

365465A1

Front Chassis, Replaces 313882A1

1шт.

18

E137454

SUPPORT

Fender

2шт.
