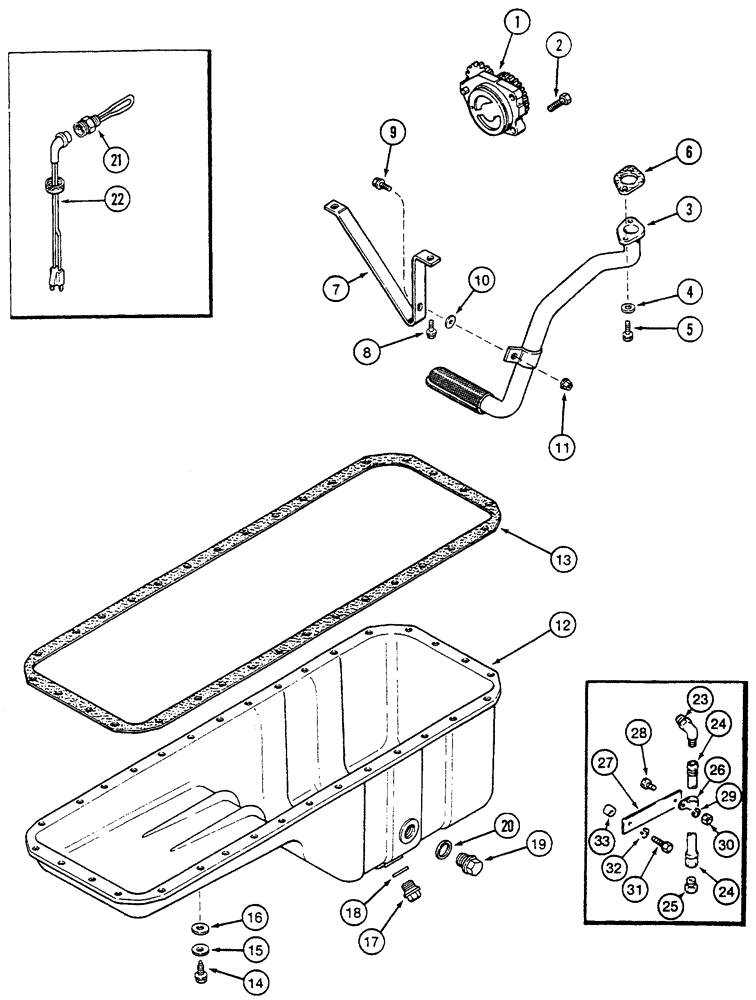

Запчасти Case 721C (02-17) - OIL PUMP, PAN - HEATER (02) - ENGINE

6T-830 Emissions Certified Engine

1шт.

Europe Only

1шт.

1

J930338

PUMP, ENGINE OIL

No Longer Used, Order J948071

1шт.

1

J948071

PUMP,24.17 CC

Replaces J930338

1шт.

1

JR948071

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1

JC948071

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J910787

TUBE

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

J914302

GASKET

1шт.

7

J927611

BRACKET

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

10

J910960

WASHER

1шт.

A77679

GASKET KIT

Incl. 6, 13, 18, 20, No Longer Used, Order A77999

1шт.

A77999

GASKET KIT

Incl. 6, 13, 18, 20, Replaces A77679

1шт.

6T-830 Emissions Certified Engine

1шт.

Europe Only

1шт.

11

J906216

FLANGE NUT

M6

1шт.

12

J914013

PAN, ENGINE OIL

PAN, OIL

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Order A77679

1шт.

14

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

32шт.

15

J910266

LOCK WASHER

If Used

32шт.

16

J908316

WASHER

M9 x 16 x 1, If Used

32шт.

17

J924147

PLUG,M18 x 1.5

M18

1шт.

18

J920773

SEALING WASHER

1шт.

19

J924148

PLUG,M22 x 1.5

M22

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77679

GASKET KIT

Incl. 6, 13, 18, 20, No Longer Used, Order A77999

1шт.

A77999

GASKET KIT

Incl. 6, 13, 18, 20, Replaces A77679

1шт.

6T-830 Emissions Certified Engine

1шт.

Europe Only

1шт.

Engine Oil Heater

1шт.

A77666

SERVICE KIT

240V, Heater, Incl. 21, 22, Also Order J902425

1шт.

21

J904381

RESISTOR

240V

1шт.

22

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

23

CASL125989

ELBOW

1шт.

24

123029A1

HOSE

395 mm (15-5/8 in)

1шт.

25

218-775

PLUG,3/4"-16, 37 Degree

1шт.

26

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

27

114512A1

SUPPORT

1шт.

28

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

29

892-11008

LOCK WASHER,8mm ID

1шт.

30

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

31

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

1шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

33

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

1шт.
