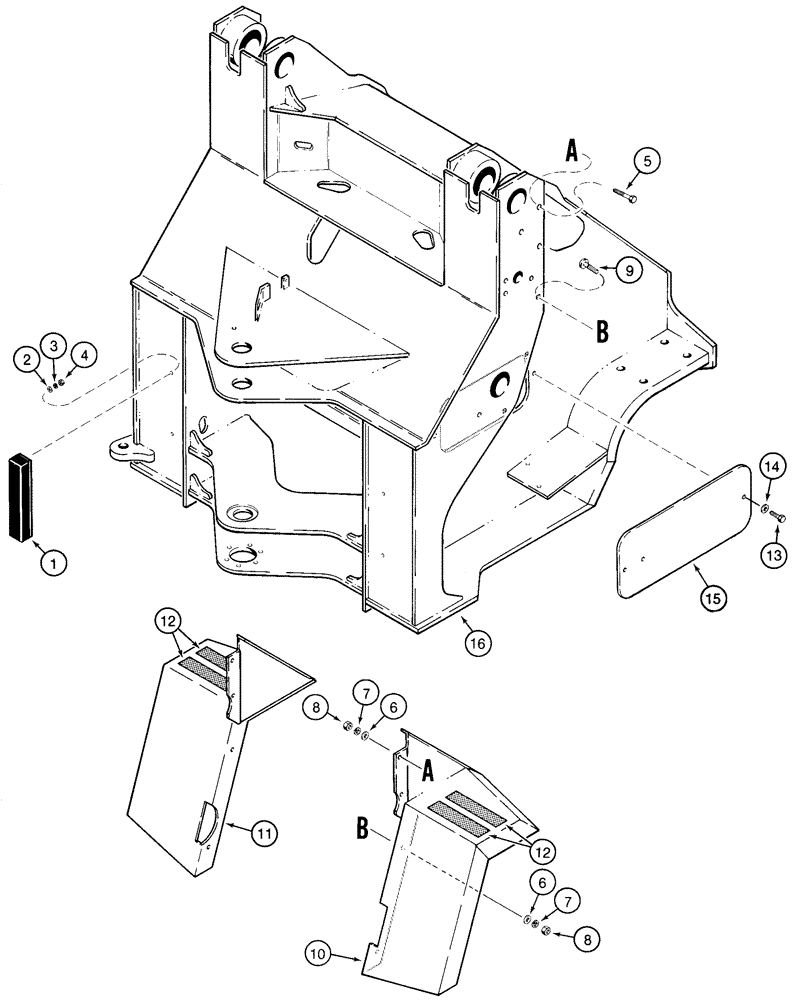

Запчасти Case 721C (09-26) - FRAME, FRONT - FENDERS (09) - CHASSIS

North America Only

1шт.

Z-Bar Loader

1шт.

1

L127077

HITCH DAMPER

Chassis

2шт.

2

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

4шт.

6

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

8шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

8

425-108

NUT,1/2" - 13, Gr 5

8шт.

9

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.

10

123165A1S

SPLASH SHIELD

Front, Right Hand, Replaces L128918

1шт.

11

123164A1S

SPLASH SHIELD

Front, Left Hand, Replaces L128922

1шт.

12

D55216

PAD,2" x 9"

2 x 9 in, Front Fender

4шт.

13

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

15

L125240

LARGE PLATE

PLATE, LARGE Front Frame

2шт.

16

365390A1

CHASSIS

Front Chassis, Replaces 294112A1

1шт.
