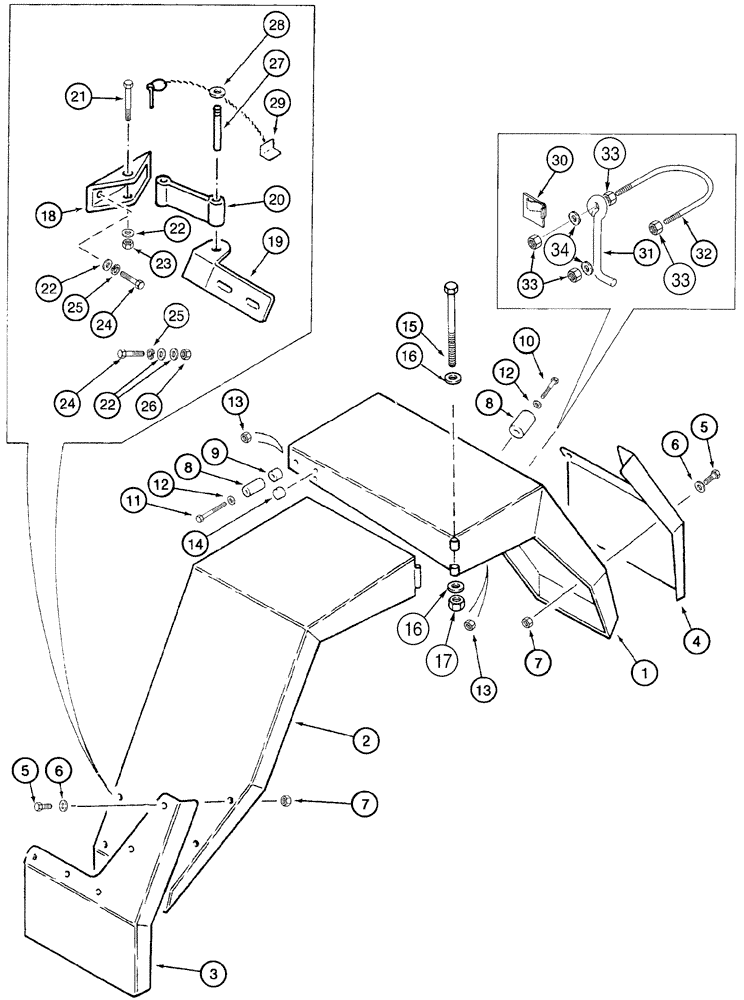

Запчасти Case 721C (09-25) - FENDERS, REAR - TUV (09) - CHASSIS

Europe Only

1шт.

1

314620A1

FENDER

Rear, Right Hand

1шт.

1

314619A1

FENDER

Rear, Left Hand, Not Shown

1шт.

2

314622A1

FENDER

Rear Extension, Right Hand

1шт.

2

314621A1

FENDER

Rear Extension, Left Hand, Not Shown

1шт.

3

129002A1

SKIRT

Left Rear, Right Front

2шт.

4

129003A1

SKIRT

Right Rear

2шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

20шт.

6

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

20шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

20шт.

8

L126483

BUMPER

Door

3шт.

9

311070A1

SPACER

2шт.

10

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

No longer used, Order 827-6070

1шт.

10

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

Replaces 827-6040

1шт.

11

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

13

832-10406

NUT,M6 x 1, Cl 8

3шт.

14

L126856

RIVET

6шт.

15

827-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

2шт.

16

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

17

832-10416

NUT,M16 x 2, Cl 8

2шт.

18

E137436

SUPPORT

Fender

2шт.

19

314624A1

SUPPORT

Fender, Right Hand

1шт.

19

314623A1

SUPPORT

Fender, Left Hand, Not Shown

1шт.

20

E137437

TRUSS ROD

2шт.

21

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

14шт.

23

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

24

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

26

829-1412

NUT,M12, Cl 10.9

4шт.

27

120342A1

ANCHOR

Retaining

2шт.

28

L303000

CHAIN (CE)

12 in

2шт.

29

L300295

RETAINER

Tether

2шт.

30

H439303

CLIP

Retaining

2шт.

31

311071A1

LATCH

2шт.

32

19-6258

U-BOLT

1/4 in

2шт.

33

425-104

NUT,1/4"-20, Cl 5

8шт.

34

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.
