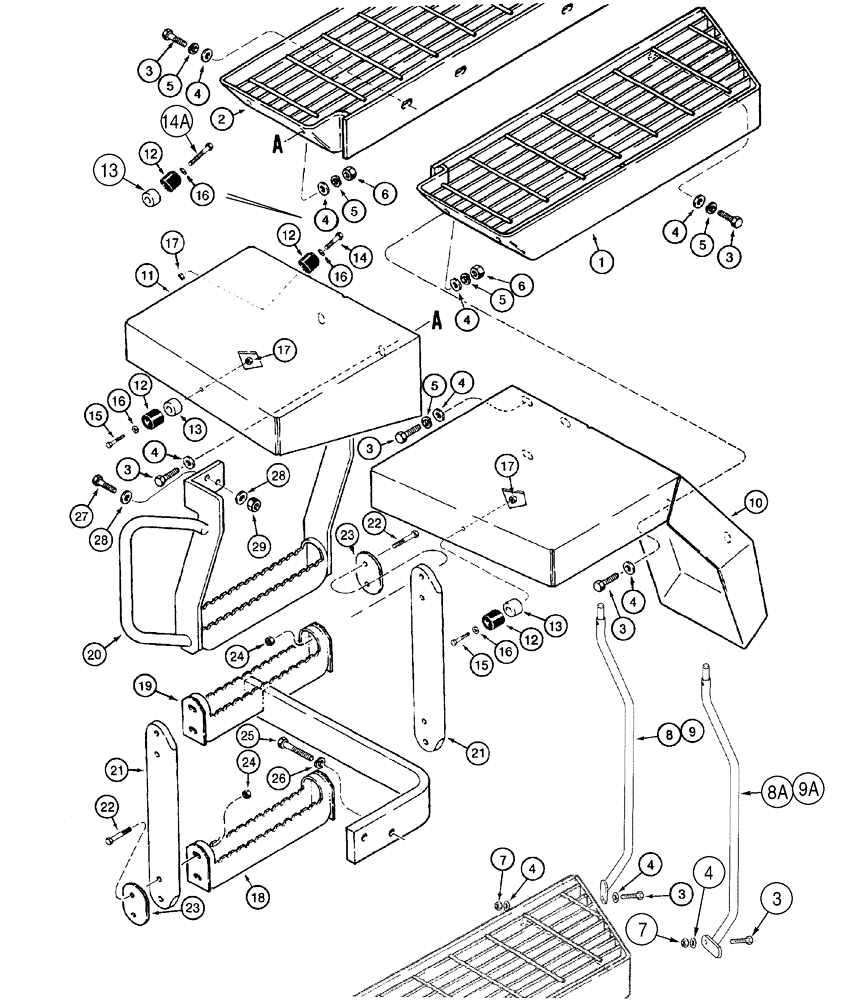

Запчасти Case 721C (09-23) - FENDERS, REAR - STEPS (09) - CHASSIS

Europe Only

1шт.

1

314378A2

STEP

Operator's Compartment, Right Hand

1шт.

2

314377A2

STEP

Operator's Compartment, Left Hand

1шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

18шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

24шт.

5

892-11012

LOCK WASHER,M12

12-16шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

Replaces 829-1412

4шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

8

296420A1

GRAB RAIL

Assist, Right Hand, No Longer Available, Order 296420A2

1шт.

8a

296420A2

HANDLE

Assist, Right Hand, Replaces 296420A1

1шт.

9

296418A1

GRAB RAIL

Assist, Left Hand, No Longer Available, Order 296418A2

1шт.

9a

296418A2

HANDLE

Assist, Left Hand, Replaces 296418A1

1шт.

10

314620A1

FENDER

Rear, Right Hand

1шт.

11

314619A1

FENDER

Rear, Left Hand

1шт.

12

L126483

BUMPER

Door

3шт.

13

311070A1

SPACER

2-3шт.

14

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

Used with 12

1шт.

14a

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

Used with 12, 13

1шт.

15

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

17

832-10406

NUT,M6 x 1, Cl 8

3шт.

18

311075A1

STEP

Rear Frame, Lower

1шт.

19

313435A1

STEP

Rear Frame, Center

1шт.

20

313434A1

STEP

Rear Frame, Top

1шт.

21

108751A1

SUPPORT

Hanger

2шт.

22

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

23

311069A1

LARGE PLATE

PLATE, LARGE Support

4шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

25

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

26

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

27

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

8шт.

29

832-10412

NUT,M12 x 1.75, Cl 8

4шт.
