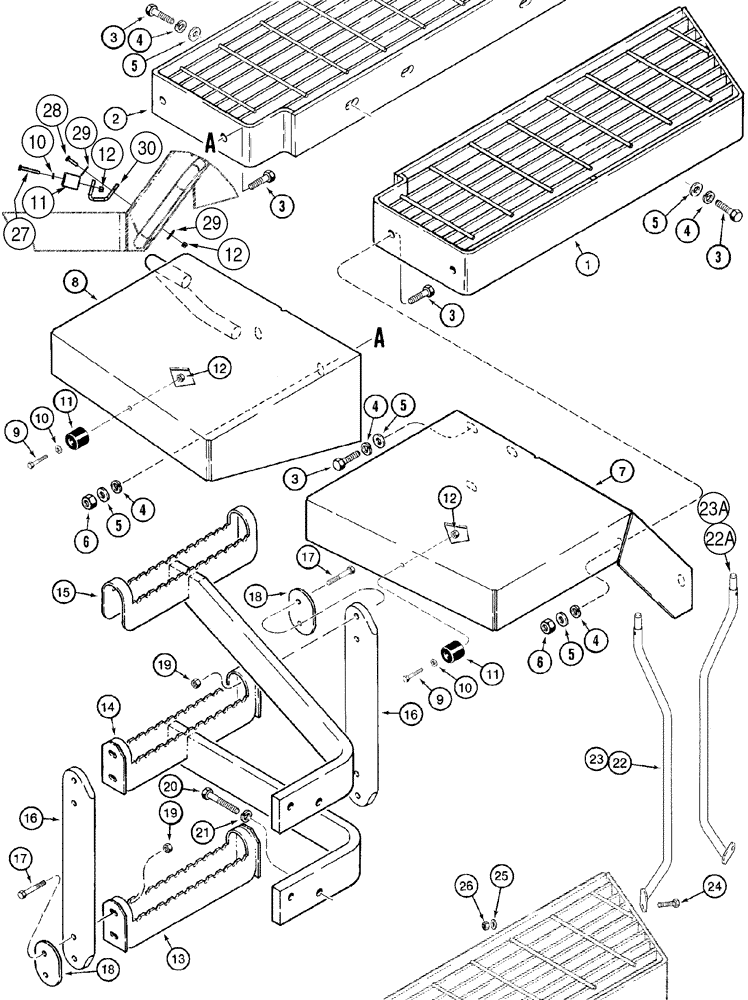

Запчасти Case 721C (09-22) - FENDERS, REAR - STEPS (09) - CHASSIS

North America Only

1шт.

1

326819A2

STEP

Operator's Compartment, Right Hand

1шт.

2

326818A2

STEP

Operator's Compartment, Left Hand

1шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

Replaces 827-12050

16шт.

4

892-11012

LOCK WASHER,M12

12шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

20шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

Replaces 829-1412

4шт.

7

L128539

FENDER

Rear, Right Hand

1шт.

8

L128541

FENDER

Rear, Left Hand

1шт.

9

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

11

L126483

BUMPER

Door

3шт.

12

832-10406

NUT,M6 x 1, Cl 8

4шт.

13

311075A1

STEP

Rear Frame, Lower

1шт.

14

313435A1

STEP

Rear Frame, Center

1шт.

15

319794A1

STEP

Rear Frame, Top

1шт.

16

108751A1

SUPPORT

Hanger

2шт.

18

311069A1

LARGE PLATE

PLATE, LARGE Support

4шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

20

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

21

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

22

296420A1

GRAB RAIL

Assist, Right Hand, No Longer Available, Order 296420A2

1шт.

22a

296420A2

HANDLE

Assist, Right Hand, Replaces 296420A1

1шт.

23

296418A1

GRAB RAIL

Assist, Left Hand, No Longer Available, Order 296418A2

1шт.

17

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

23a

296418A2

HANDLE

Assist, Left Hand, Replaces 296418A1

1шт.

24

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

25

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

26

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

27

827-6045

BOLT,Hex, M6 x 45mm, Cl 10.9

1шт.

28

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

1шт.

29

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

30

357241A1

SUPPORT

Door Stop

1шт.
