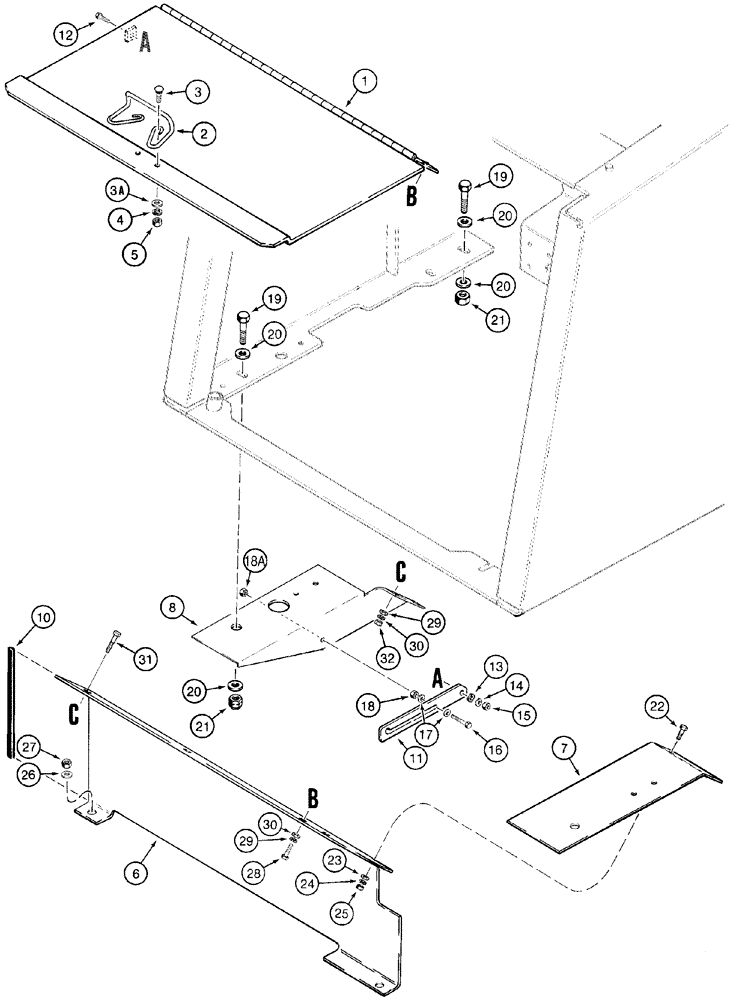

Запчасти Case 721C (09-21) - COVERS - BATTERY BOX (09) - CHASSIS

North America Only

1шт.

1

292963A1

COVER

Battery Box

1шт.

2

L125636

HANDLE

Cover

1шт.

3

711-5016

CARRIAGE BOLT,Sq Nk, M5 x 0.8 x 16mm, Cl 8.8

2шт.

3a

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

4

892-11005

LOCK WASHER,M5

2шт.

5

824-1405

NUT,M5, Cl 5

2шт.

6

L128101

BAFFLE ASSY.

Battery Box

1шт.

7

L128192

PLATE

Support, Right-Hand

1шт.

8

L128172

PLATE

Support, Left-Hand

1шт.

10

L127454

LINING

220 mm (8-3/4 in), Edge, Cut From F64277X

1шт.

11

L125491

LARGE PLATE

PLATE, LARGE Cover Support

1шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

13

S69662

WASHER

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Replaces 829-1308

1шт.

18a

832-10408

NUT,M8 x 1.25, Cl 8.8

Replaces 829-1308

1шт.

19

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

20

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

21

832-10416

NUT,M16 x 2, Cl 8

4шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

No Longer Used, Order 627-10025

1шт.

22

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

Replaces 627-10020

1шт.

16

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

1шт.

24

892-11010

LOCK WASHER,M10

1шт.

16

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

1шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

28

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

29

892-11010

LOCK WASHER,M10

4шт.

31

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

No Longer Used, Order 627-10025

1шт.

31

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

Replaces 627-10020

1шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

1

315457A1

COVER

Battery Box

1шт.

2

L125636

HANDLE

Cover

1шт.

3

711-5016

CARRIAGE BOLT,Sq Nk, M5 x 0.8 x 16mm, Cl 8.8

2шт.

3b

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

4

892-11005

LOCK WASHER,M5

2шт.

5

824-1405

NUT,M5, Cl 5

2шт.

6

L128101

BAFFLE ASSY.

Battery Box

1шт.

7

175420A1

PLATE

Support, Right-Hand

1шт.

8

175421A1

PLATE

Support, Left-Hand

1шт.

10

L127454

LINING

220 mm (8-3/4 in), Edge, Cut From F64277X

1шт.

11

L125491

LARGE PLATE

PLATE, LARGE Cover Support

1шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

13

S69662

WASHER

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

Replaces 829-1308

1шт.

18a

832-10408

NUT,M8 x 1.25, Cl 8.8

Replaces 829-1308

1шт.

19

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

20

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

21

832-10416

NUT,M16 x 2, Cl 8

4шт.

22

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

24

892-11010

LOCK WASHER,M10

1шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

28

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

29

892-11010

LOCK WASHER,M10

4шт.

31

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

26

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

30

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

26

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

30

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
