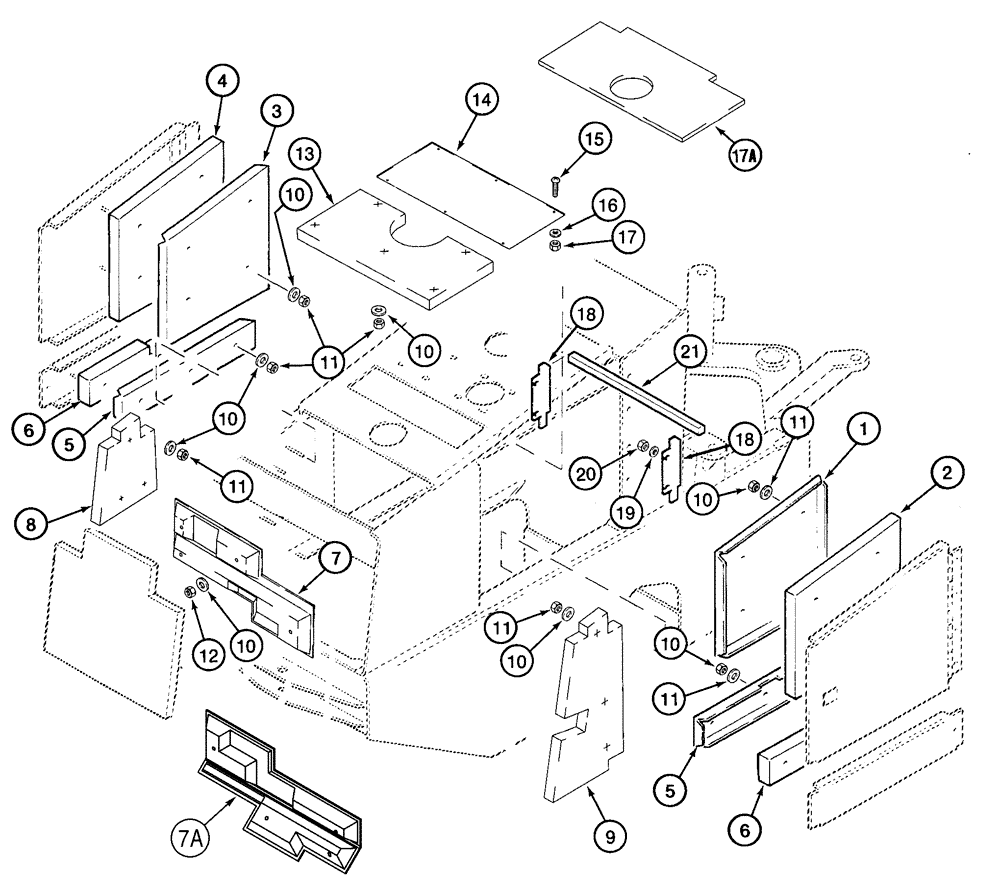

Запчасти Case 721C (09-20) - INSULATION - HOOD (09) - CHASSIS

Europe Only

1шт.

1

117680A1

COVER

Engine Door, Right Hand

1шт.

2

117678A1

INSULATOR

Cover, Right Hand

1шт.

3

117681A1

COVER

Engine Door, Left Hand

1шт.

4

117679A1

INSULATOR

Cover, Left Hand

1шт.

5

117688A1

COVER

Engine Lower

2шт.

6

117687A1

NOISE PROTECTION

Engine Lower

2шт.

7

330530A1

PROTECTOR

Hydraulic Tank, No Longer Available, Order 330530A2

1шт.

7a

330530A2

PROTECTOR

Hydraulic Tank, Replaces 330530A1

1шт.

8

319474A2

INSULATOR

Radiator Guard, Left Hand

1шт.

9

319475A2

INSULATOR

Radiator Guard, Right Hand

1шт.

10

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

29шт.

11

234-10431

CROWN NUT,Crown, 5/16"-18

25шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

175064A1

PANEL

Top Rear

1шт.

14

144213A1

LARGE PLATE

PLATE, LARGE Air Intake

1шт.

15

161-114

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 5/8"

6шт.

16

495-81286

WASHER,.281" x 1 1/8" x .060"

6шт.

17

231-1444

NUT,1/4"-20, GB

6шт.

17a

319028A1

INSULATOR

Hood

1шт.

18

175207A2

COWL

2шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

21

182916A1

PANEL

Lower, Hydraulic Tank

1шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
