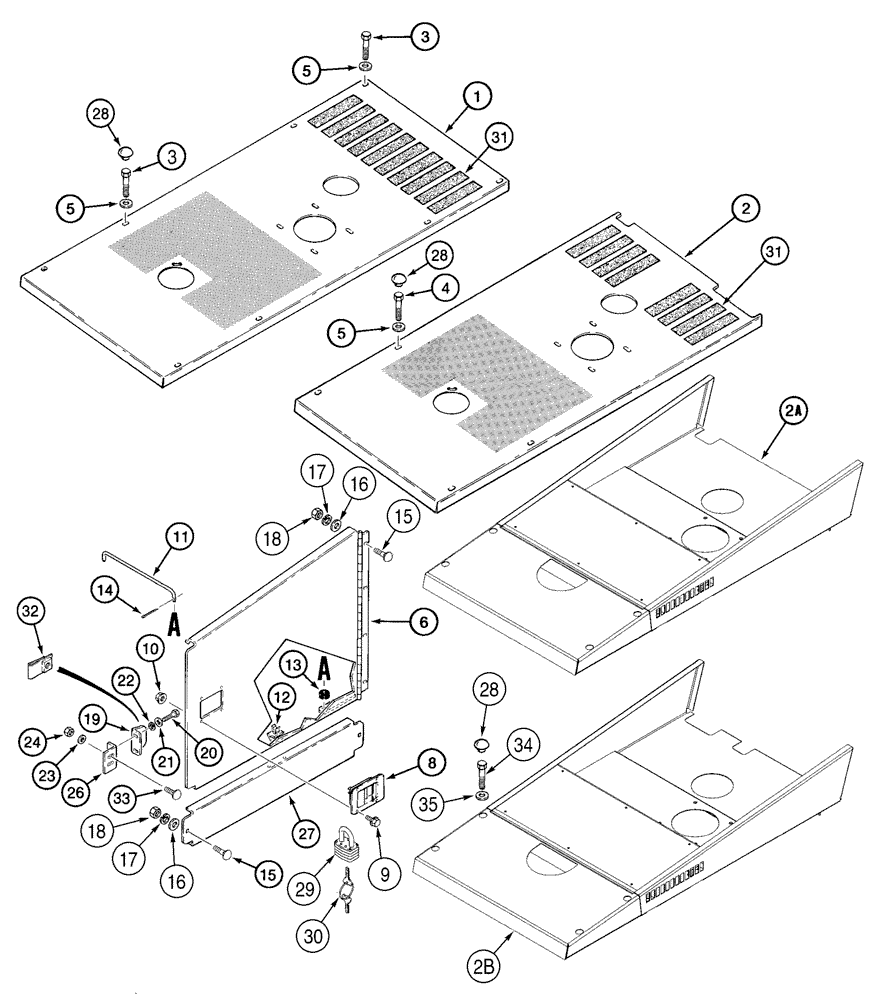

Запчасти Case 721C (09-17) - HOOD - DOORS, SIDE (09) - CHASSIS

North America and Europe

1шт.

1

298443A1

COWL

Models Without Air Conditioning

1шт.

2

298713A1

COWL

Models With Air Conditioning, North America Only

1шт.

2a

315528A1

COWL

Models With Air Conditioning, Europe Only, No Longer Available, Order 362999A1

1шт.

2b

362999A1

COVER ASSY

Models With Air Conditioning, Europe Only, Replaces 315528A1

1шт.

3

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Models Without Air Conditioning

8шт.

4

627-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd

4шт.

6

L127685

DOOR

Hood Side, Right Hand, North America Only

1шт.

6

117677A1

DOOR ASSY.

Hood Side, Right Hand, Europe Only

1шт.

7

L127686

DOOR

Hood Side, Left Hand, North America Only, Not Shown

1шт.

7

117675A1

DOOR ASSY.

Hood Side, Left Hand, Europe Only, Not Shown

1шт.

8

R56221

LATCH

Door Handle

2шт.

9

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

10

231-5344

FLANGE NUT,Flg, 1/4"-20

8шт.

11

L128467

ROD

Door Open

2шт.

12

L128879

CLIP,ELECTRICAL

Retainer

2шт.

13

248-2397

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

2шт.

14

32-812

COTTER PIN,1/8" x 3/4"

2шт.

15

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

12шт.

16

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

12шт.

17

492-11038

LOCK WASHER,3/8"

12шт.

18

425-106

NUT,3/8"-16, Cl 5

12шт.

19

L127958

LARGE PLATE

PLATE, LARGE Door

2шт.

20

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

21

492-11031

LOCK WASHER,5/16"

4шт.

22

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

23

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

24

231-1446

NUT,3/8" - 16, Gr 5

4шт.

25

L126856

RIVET

Rubber, Not Shown, See Figure 09-18, 09-19

8шт.

26

112924A1

SUPPORT

Catch

2шт.

27

L128574

COVER

Lower, North America Only

2шт.

27

117686A1

COVER

Lower, Europe Only

2шт.

28

353-413

PLUG,Dome, 1.187" hole, Nylon

1-3/16

4-8шт.

29

D93753

PADLOCK

Incl. Keys, Incl. 30

2шт.

30

D93751

SET OF 2 KEYS

Yale Lock, If Used

2шт.

30

R29555

KEY

Master Lock, If Used

2шт.

31

D55216

PAD,2" x 9"

2 x 9 in, Hood, Front

8-10шт.

32

131-637

SPRING NUT,Ret, J, 5/16"-18

4шт.

33

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

34

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Europe Only

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4-8шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm, Europe Only

4шт.
