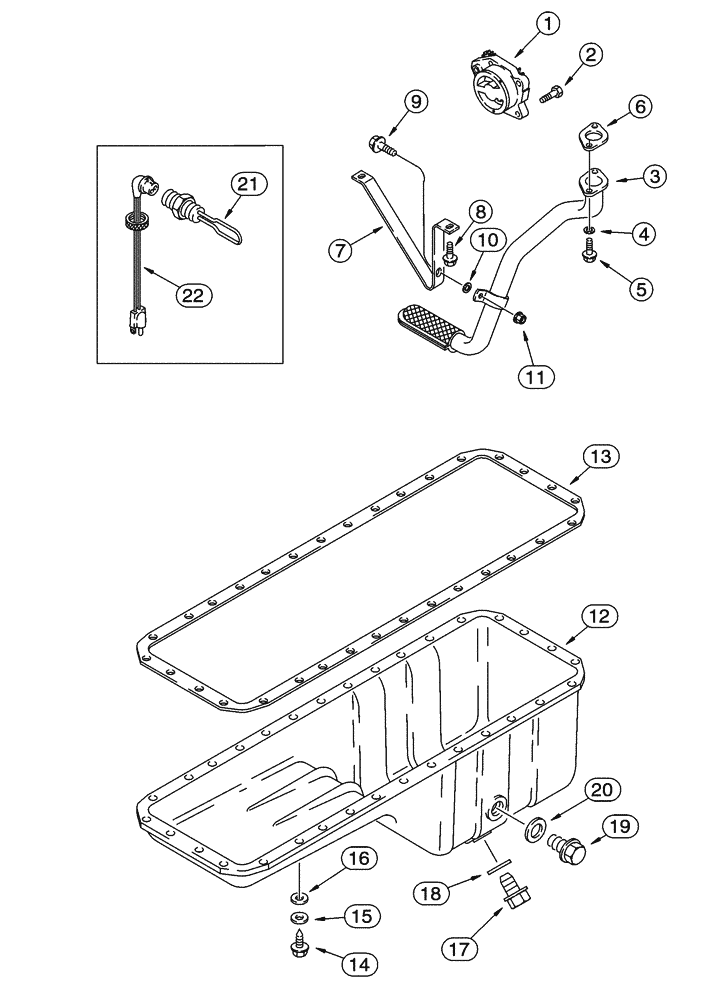

Запчасти Case 721C (02-16) - OIL PUMP, PAN - HEATER (02) - ENGINE

6T-830 Emissions Certified Engine

1шт.

North America Only

1шт.

1

J948071

PUMP,24.17 CC

Replaces J930338

1шт.

JR948071

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. Only, Replaces JR930338

1шт.

JC948071

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only; Replaces JC926201

1шт.

6T-830 Emissions Certified Engine

1шт.

North America Only

1шт.

1

J930338

PUMP, ENGINE OIL

No Longer Used, Order J948071

1шт.

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured, North America Only, No Longer Used, Order JR948071

1шт.

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Use To Return Core For Credit When Using a Remanufactured Assembly, No Longer Used, Order JC948071

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J910787

TUBE

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

J914302

GASKET

1шт.

7

J927611

BRACKET

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

10

J910960

WASHER

1шт.

11

J906216

FLANGE NUT

M6

1шт.

12

J914013

PAN, ENGINE OIL

PAN, OIL

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, Order A77999

1шт.

14

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

32шт.

A77679

GASKET KIT

Incl. 6, 13, 18, 20, No Longer Used, Order A77999

1шт.

A77999

GASKET KIT

Incl. 6, 13, 18, 20, Replaces A77679

1шт.

6T-830 Emissions Certified Engine

1шт.

North America Only

1шт.

15

J910266

LOCK WASHER

If Used

32шт.

16

J908316

WASHER

M9 x 16 x 1, If Used

32шт.

17

J924147

PLUG,M18 x 1.5

M18

1шт.

18

J920773

SEALING WASHER

1шт.

19

J924148

PLUG,M22 x 1.5

M22

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77679

GASKET KIT

Incl. 6, 13, 18, 20, No Longer Used, Order A77999

1шт.

A77999

GASKET KIT

Incl. 6, 13, 18, 20, Replaces A77679

1шт.

Engine Oil Heater

1шт.

A77580

SERVICE KIT

120V, Heater, Consists Of 21, 22, Also Order J902425

1шт.

21

NSS

NOT SOLD SEPARAT

Element

1шт.

22

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.
