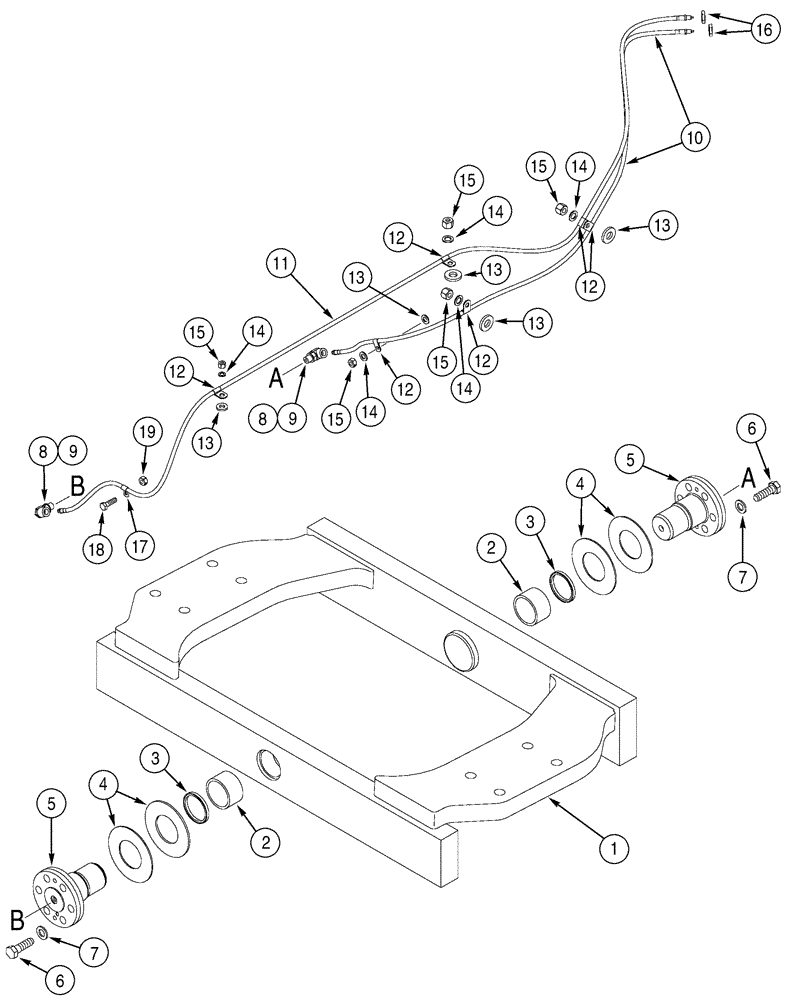

Запчасти Case 721C (09-16) - TRUNNION - LUBRICATION LINES (09) - CHASSIS

115278A1

TRUNNION

Rear Frame, Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Trunnion

1шт.

2

L109938

BUSHING,70.18mm ID x 82.69mm OD x 41mm L

Trunnion

2шт.

3

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Seal

2шт.

4

302573A1

SHIM

3.2 mm (0.125 in)

1шт.

4

302574A1

SHIM

4.8 mm (0.187 in)

1шт.

5

L119222

AXLE PIN

Trunnion

2шт.

6

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

12шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Hardened

12шт.

8

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

Incl. 9

2шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

313079A1

HOSE ASSY.

1861 mm (73-5/16 in), Lubrication, Front Trunnion

1шт.

11

313080A1

HOSE ASSY.

2581 mm (101-5/8 in), Lubrication, Rear Trunnion

1шт.

12

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

6шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4-5шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Replaces 895-18012

4-5шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

4-5шт.

16

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

17

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm)

1шт.

18

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
