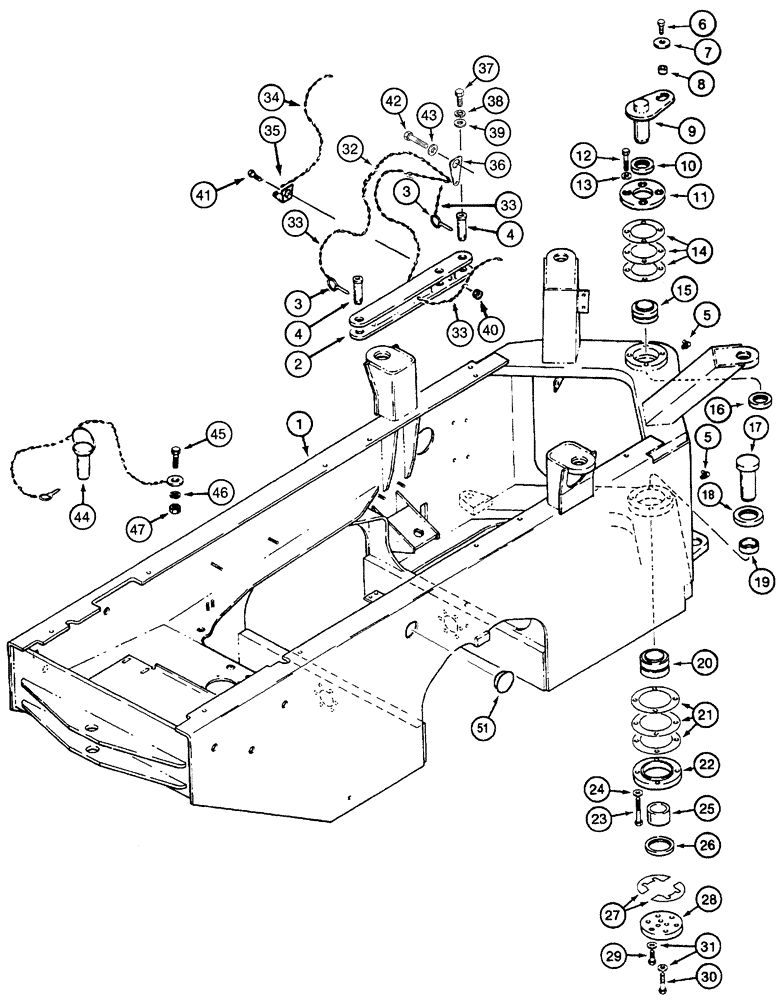

Запчасти Case 721C (09-12) - FRAME, REAR - PIVOT (09) - CHASSIS

Europe Only

1шт.

1

315800A2

CHASSIS

Rear, Incl. Fuel Tank, Replaces 315800A1

1шт.

2

126122A1

PITMAN ASSY.

Transport and Service

1шт.

3

A30338

PIN

2шт.

4

126268A1

PIN,31.8mm OD x 108mm L

Link

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

6

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

1шт.

7

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

1шт.

8

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Upper Pin

1шт.

9

L118861

HANDLED SHAFT

Upper Pivot

1шт.

10

L118973

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

Upper, Upper Articulation Plate

1шт.

11

L118901

COVER

Upper Pivot

1шт.

12

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

4шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

14

L118987

SHIM,0.1mm Thk

(.004") Upper pivot

1шт.

14

L119202

SHIM,0.25mm Thk

(.010") Upper pivot

1шт.

14

L118986

SHIM,0.5mm Thk

(.020") Upper pivot

1шт.

15

L118856

TAPERED BEARING,57.15mm ID x 100mm OD x 42mm W

1шт.

16

L126169

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

Lower, Upper Articulation Plate

1шт.

17

L118857

PIVOT PIN,63.48mm OD x 191.75mm L

Lower Pivot

1шт.

18

L118978

SEAL,79.38mm ID x 108.05mm OD x 12.7mm Thk

Upper, Lower Articulation Plate

1шт.

19

L118862

SPACER,63.55mm ID x 79.4mm OD x 28.6mm L

Upper, Lower Pivot Bearing

1шт.

20

L118868

TAPERED BEARING,63.51mm ID x 122.24mm OD x 76.71mm W

Lower Pivot

1шт.

21

L118990

SHIM,124mm ID x 190mm OD x 0.11mm Thk

(.004") Lower pivot

1шт.

21

L119203

SHIM,124mm ID x 190mm OD x 0.28mm Thk

0,25 mm (0,010 in), Lower Pivot

1шт.

21

L118989

SHIM,124mm ID x 190mm OD x 0.54mm Thk

(.020") Lower pivot

1шт.

22

L118902

COVER

Lower Pivot

1шт.

23

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

4шт.

24

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

25

L118858

SPACER,63.54mm ID x 79.4mm OD x 56.45mm L

Lower, Lower Pivot Bearing

1шт.

26

L126168

SEAL,79.38mm ID x 108.05mm OD x 11.89mm Thk

Lower, Lower Pivot

1шт.

27

L118983

SHIM,90mm ID x 160mm OD x 0.11mm Thk

(.004") One half; Lower plate

1шт.

27

L118980

SHIM,90mm ID x 160mm OD x 0.28mm Thk

(.010") One half; Lower plate

1шт.

27

L118982

SHIM,90mm ID x 160mm OD x 0.54mm Thk

(.020") One half; Lower plate

1шт.

28

L128375

PLATE

Lower Pin

1шт.

29

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.

30

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

3шт.

31

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

9шт.

32

R50297

CHAIN (CE)

305 mm (12 in), Retainer

2шт.

33

R47786

CHAIN (CE)

241 mm (9-1/2 in), Retainer

2шт.

34

128307A1

CHAIN (CE)

610 mm (24 in), Retainer

1шт.

35

128299A1

LARGE PLATE

PLATE, LARGE

1шт.

36

L300295

RETAINER

3шт.

37

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

38

492-11038

LOCK WASHER,3/8"

2шт.

39

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

40

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

41

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

42

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

43

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

44

E134656

PIN

1шт.

45

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

46

892-11010

LOCK WASHER,M10

1шт.

47

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
