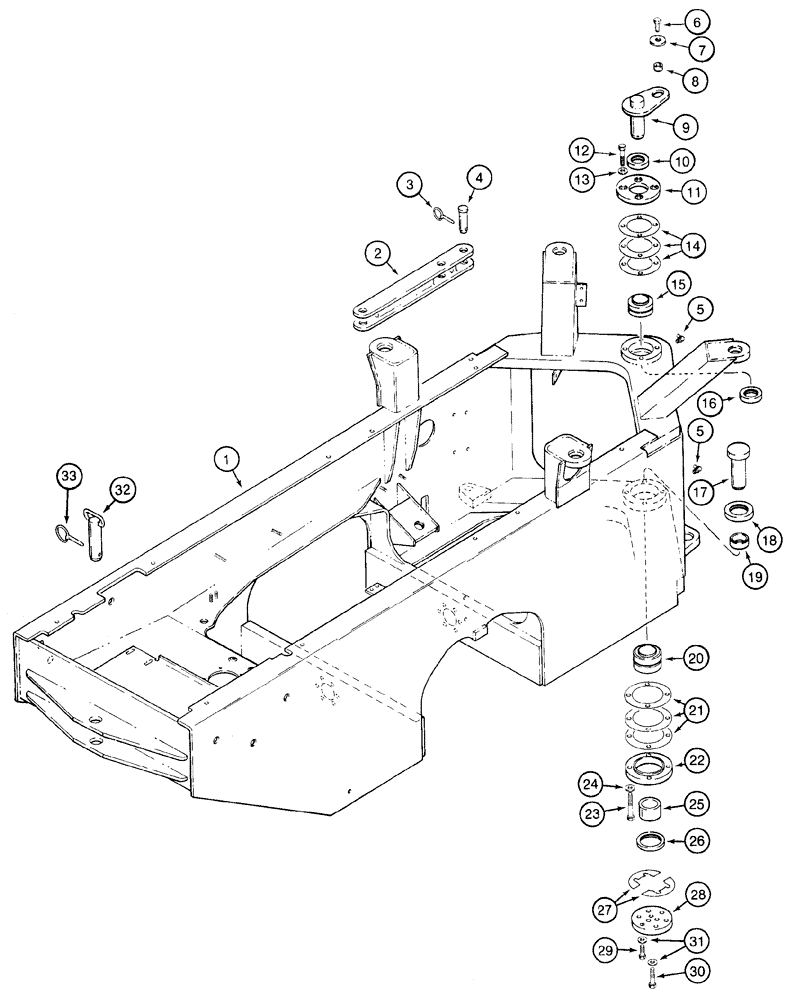

Запчасти Case 721C (09-11) - FRAME, REAR - PIVOT (09) - CHASSIS

North America Only

1шт.

1

192229A1

CHASSIS

Rear, Includes Fuel Tank

1шт.

2

L124505

PITMAN ASSY.

Transport and Service

1шт.

3

A30338

PIN

2шт.

4

A164277

PIN,31.75mm OD x 107.95mm L

Link

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

6

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

1шт.

7

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

1шт.

8

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Upper Pin

1шт.

9

L118861

HANDLED SHAFT

Upper Pivot

1шт.

10

L118973

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

Upper, Upper Articulation Plate

1шт.

11

L118901

COVER

Upper Pivot

1шт.

12

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

4шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

14

L118987

SHIM,0.1mm Thk

(.004") Upper pivot

1шт.

14

L119202

SHIM,0.25mm Thk

(.010") Upper pivot

1шт.

14

L118986

SHIM,0.5mm Thk

(.020") Upper pivot

1шт.

15

L118856

TAPERED BEARING,57.15mm ID x 100mm OD x 42mm W

1шт.

16

L126169

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

Lower, Upper Articulation Plate

1шт.

17

L118857

PIVOT PIN,63.48mm OD x 191.75mm L

Lower Pivot

1шт.

18

L118978

SEAL,79.38mm ID x 108.05mm OD x 12.7mm Thk

Upper, Lower Articulation Plate

1шт.

19

L118862

SPACER,63.55mm ID x 79.4mm OD x 28.6mm L

Upper, Lower Pivot Bearing

1шт.

20

L118868

TAPERED BEARING,63.51mm ID x 122.24mm OD x 76.71mm W

Lower Pivot

1шт.

21

L118990

SHIM,124mm ID x 190mm OD x 0.11mm Thk

(.004") Lower pivot

1шт.

21

L119203

SHIM,124mm ID x 190mm OD x 0.28mm Thk

0,25 mm (0,010 in), Lower Pivot

1шт.

21

L118989

SHIM,124mm ID x 190mm OD x 0.54mm Thk

(.020") Lower pivot

1шт.

22

L118902

COVER

Lower Pivot

1шт.

23

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

4шт.

24

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

25

L118858

SPACER,63.54mm ID x 79.4mm OD x 56.45mm L

Lower, Lower Pivot Bearing

1шт.

26

L126168

SEAL,79.38mm ID x 108.05mm OD x 11.89mm Thk

Lower, Lower Pivot

1шт.

27

L118983

SHIM,90mm ID x 160mm OD x 0.11mm Thk

(.004") One half; Lower plate

1шт.

27

L118980

SHIM,90mm ID x 160mm OD x 0.28mm Thk

(.010") One half; Lower plate

1шт.

27

L118982

SHIM,90mm ID x 160mm OD x 0.54mm Thk

(.020") One half; Lower plate

1шт.

28

L128375

PLATE

Lower Pin

1шт.

29

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.

30

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

3шт.

31

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

9шт.

32

L104989

STOP

Drawbar, If Used

1шт.

33

D33805

PIN

If Used

1шт.
