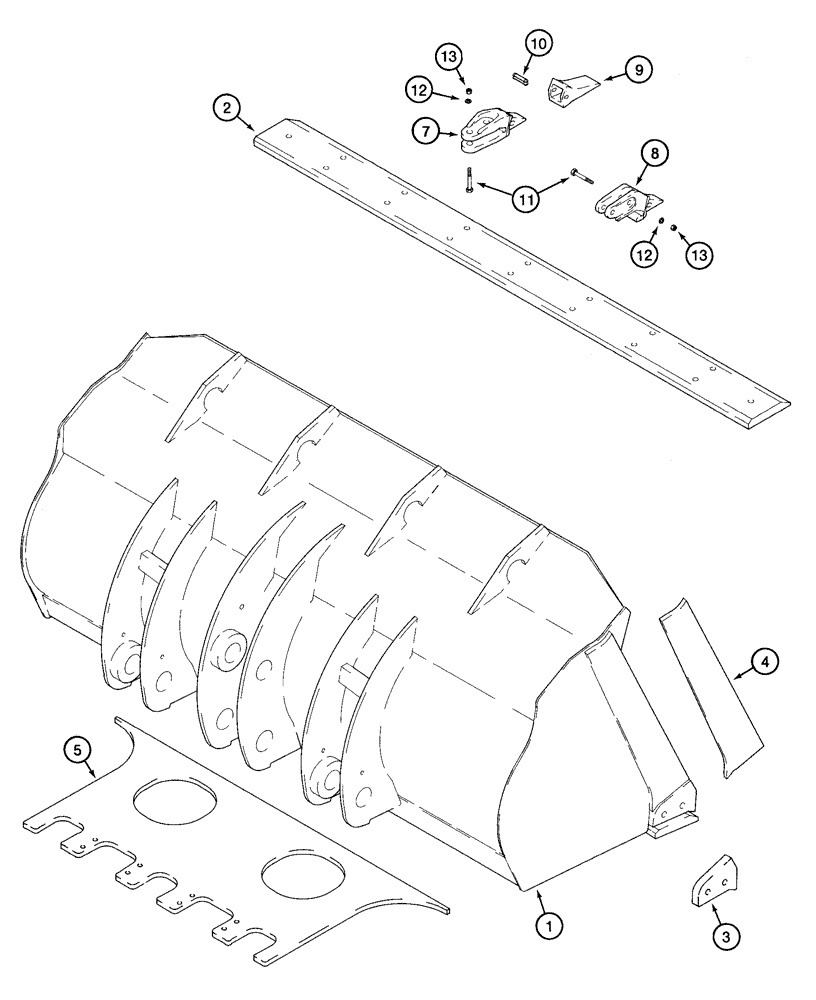

Запчасти Case 721C (09-09) - BUCKETS - LOADER (09) - CHASSIS

Z-Bar Loader

1шт.

Bucket 2,3 cu m (3.00 cu yd)

1шт.

298280A1

BUCKET

Loader, Order From Machinery Price List, Incl. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

L127427

EDGE, CUTTING

Front, Welded On

1шт.

3

115620A1

EDGE

Corner, Welded On

2шт.

4

112100A1

EDGE

Side, Welded On

2шт.

5

298275A1

PLATE

Bottom, Welded On

1шт.

6

305026A1

Loader, Used With ACS Pro-Series 2000 Coupler, Order From Machinery Price List, Not Shown

1шт.

Bucket Teeth

1шт.

254819A1

TOOTH

Center, Incl. 7, 9, 10

7шт.

254818A1

TOOTH

Corner, Incl. 8, 9, 10

2шт.

7

NSS

NOT SOLD SEPARAT

Shank, Center

1шт.

8

NSS

NOT SOLD SEPARAT

Shank, Corner

1шт.

9

254820A1

TOOTH

Standard

1шт.

9

254822A1

TOOTH

Abrasion, Not Shown

1шт.

9

254823A1

BUCKET TOOTH

Penetration, Not Shown

1шт.

10

254815A1

PIN

Point Retaining

1шт.

11

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

18шт.

12

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

18шт.

13

425-1612

NUT,3/4"-10, G5, Hvy

18шт.
