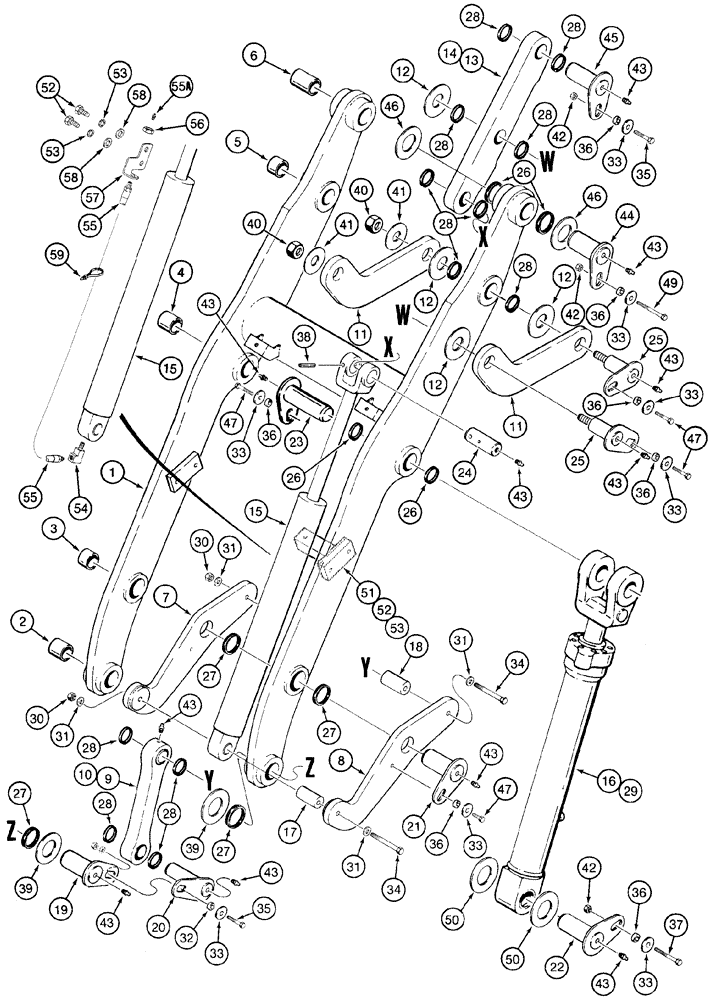

Запчасти Case 721C (09-07) - FRAME - LOADER LIFT AND LINKAGE (09) - CHASSIS

XT Loader

1шт.

346305A1

ARM/LIFTING DEVICE

Loader Lift, Incl. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Frame

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

Loader Lift Frame, At Chassis

2шт.

3

111721A1

BUSHING

Loader Lift Frame

2шт.

4

L125957

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

Tube

2шт.

5

111722A1

BUSHING,63.7mm ID x 76.33mm OD x 47mm L

Loader Lift Frame

2шт.

6

111723A1

BUSHING,76.38mm ID x 89.03mm OD x 50mm L

Loader Lift Frame

4шт.

7

346306A1

POWER ARM

Loader Bucket, Left Hand

2шт.

8

346307A1

POWER ARM

Loader Bucket, Right Hand

2шт.

346308A1

POWER ARM

Anchor, Incl. 9, 10

2шт.

9

NSS

NOT SOLD SEPARAT

Link

1шт.

10

111722A1

BUSHING,63.7mm ID x 76.33mm OD x 47mm L

Bellcrank

2шт.

11

346309A1

POWER ARM

Guide, Right Hand, Left Hand

4шт.

12

116893A1

WASHER,65mm ID x 152mm OD x 3.5mm Thk

Hardened

8шт.

346310A1

POWER ARM

Bucket Dump, Incl. 13, 14

2шт.

13

NSS

NOT SOLD SEPARAT

Link

1шт.

14

111722A1

BUSHING,63.7mm ID x 76.33mm OD x 47mm L

Bucket Dump Link

3шт.

15

112551A1

JACK BODY

114 ID x 1001 mm strk, Bucket Tilt, See Figure 08-35

2шт.

16

280706A1

CYLINDER ASSY.

127 ID x 834 mm strk, Lift Cylinder, Right Hand, See Figure 08-32

1шт.

17

L104342

PIN

Bellcrank

2шт.

18

112600A1

PIVOT PIN

Anchor link

2шт.

19

L118674

PIVOT PIN

255 mm (10 in), Lift Arm

2шт.

20

112596A1

PIVOT PIN

Anchor link

2шт.

21

346312A1

LARGE PIN

PIN, LARGE Bellcrank

2шт.

22

L128351

PIVOT PIN

249 mm (9-13/16 in), Lift Cylinder

2шт.

23

L127118

HANDLED SHAFT

229 mm (9 in), Lift Arm

2шт.

24

346313A1

LARGE PIN

PIN, LARGE Tilt Cylinder

2шт.

25

346316A1

LARGE PIN

PIN, LARGE Guide Link

4шт.

26

L128724

SEAL

8шт.

27

L128725

SEAL,82.55mm ID x 95.38mm OD x 7.9mm Thk

8шт.

28

113624A1

SEAL,63.5mm ID x 76.2mm OD x 7.9mm Thk

24шт.

29

280707A1

CYLINDER ASSY.

127 IDx834 mm strk, Lift Cylinder, Left Hand, See Figure 08-32

1шт.

30

425-1612

NUT,3/4"-10, G5, Hvy

4шт.

31

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

8шт.

32

122297A1

SPACER

Pin Mounting

2шт.

33

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

16шт.

34

426-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8

4шт.

35

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

4шт.

36

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Pin Mounting

14шт.

37

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

2шт.

38

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

39

L129131

WASHER,83.8mm ID x 152mm OD x 3.02mm Thk

4шт.

40

131-53

NUT,1 1/2"-12

Thin

4шт.

41

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

Hardened

4шт.

42

231-14410

NUT,5/8"-11, GB

6шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

22шт.

44

346565A1

LARGE PIN

PIN, LARGE Lift Arm

2шт.

45

346564A1

LARGE PIN

PIN, LARGE Dump Link

2шт.

46

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

4шт.

47

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

8шт.

49

426-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

2шт.

50

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

4шт.

51

346304A1

SUPPORT

Hose And Tube

1шт.

52

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

53

492-11038

LOCK WASHER,3/8"

4шт.

54

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

2шт.

55

313682A1

FLEXIBLE HOSE

1320 mm (62 in), Grease, Incl. 55A

2шт.

55a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

56

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

57

327130A1

SUPPORT

Mounting

2шт.

58

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

59

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.
